Description

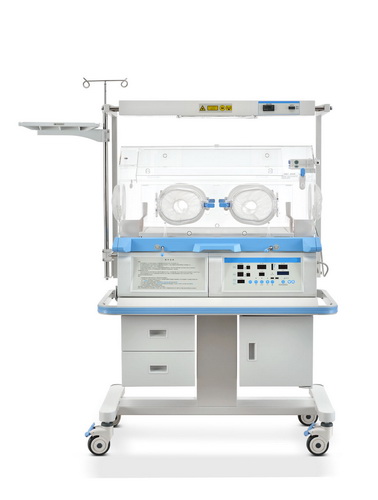

Product Introduction

• Control modes: Air mode and baby mode, servo-controlled by micro-computer
• Systems: Humidity concentration control system; oxygen concentration control system
• Display: Set temperature, air temperature, baby temperature, humidity, and oxygen concentration are displayed separately
• Special functions: > 37 °C temperature set function
• Alarms: Failure alarm indication
• Sensor: Embedded integrated sensor box
• Humidity reservoir: Integrated drawer-style water reservoir
• Hood: Double-wall hood with automatic air circulation device
• Bassinet: Adjustable inclination (± 8°)
• Interface: RS-232 connector
• Oxygen: Oxygen concentration control system (for model YP-970)
• Motor: DC motor

Main Parameters

• Power requirement: AC 220-230 V 50 Hz or AC 110-120 V 50-60 Hz, 1300 VA
• Mode of control: Air mode and baby mode controlled by micro-computer
• Air temperature control range: 25 °C–37 °C (Override mode 37–39 °C)
• Baby temperature control range: 34 °C–37 °C (Override mode 37–38 °C)
• Skin temperature sensor accuracy: ± 0.2 °C
• Temperature difference between incubator temperature and average incubator temperature (under steady temperature condition): ≤ 0.5 °C
• Temperature uniformity: ≤ 0.8 °C (mattress is on the horizontal position)
• Noise inside hood: ≤ 45 dB(A)
• Failure alarm: Over-temperature alarm, temperature deviation alarm, sensor alarm, motor fan failed alarm, power failure alarm, sensor box position alarm, tank position alarm, system alarm, and so on.
• Humidity display range: 0 %RH–99 %RH
• Humidity control range: 0 %RH–90 %RH
• Accuracy of humidity display: ± 5 %RH (environment temperature is 25 °C, environment humidity is 45 %RH ± 5 %RH)
• Indication range of oxygen concentration: 0 %–99 %
• Control range of oxygen concentration: 20 %–60 %
• Accuracy of oxygen display concentration: ± 2 % (oxygen concentration sets ≤ 25 %); ± 3 % (oxygen concentration sets > 25 %)
• Accuracy of oxygen control concentration: ± 4 %
• Weighing system range: 100–8000 g
• Resolution for weight indication: 1 g
• Accuracy of weigh: ± 1 %

Environmental Conditions

• Operating range: 20 °C ~ 30 °C (Set temperature should be 3 °C higher than the environment temperature)
• Ambient air movement rate: < 0.3 m/s

Product Packaging

• Package: Each unit is packed into two cartons
• Main body dimensions: 1110 mm × 710 mm × 888 mm
• Cabinet dimensions: 1029 mm × 697 mm × 826 mm
• Main body gross weight: 70 kg
• Cabinet gross weight: 80 kg

Basic Configuration

• Baby compartment
• Main body
• Vertical height adjustment stand (VHA stand)
• Controller
• I.V. Pole
• Shelf
