- Description

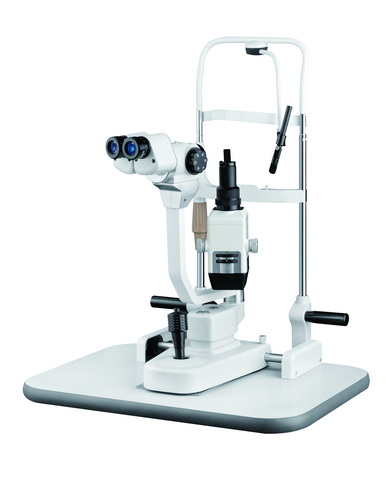

| Microscope | Microscope Type | Galilean stereoscopic microscope |
| Magnification selection | 5 steps by drum rotation | |
| Eyepiece | 12.5x | |
| Magnification Ratio (Field of view ) |
6×（φ33mm）、10×（φ22.5）、16×（φ14mm）、 25×（φ8.8mm）、40×（φ5.5mm） |
|
| PD adjustment | 50mm ~ 82mm | |
| Diopter Adjustment | +7D ~ -7D | |
| Base | Side Shift | 110mm |
| Depth Shift | 90mm | |
| Height Shift | 30mm | |
| Chin rest | Height Shift | 80mm |
| Fixation Target | red LED | |
| Illumination System | Slit width | 0 ~ 14mm continuous (at 14mm，slit becomes a circle) |
| Slit height | 1 ~ 14mm continuous | |
| Slit angle Slit Inclination Light spot diameter |
0 ~ 1800 continuous 0、50、100 150、200 Ф14mm 、Ф10mm、 Ф5mm 、 Ф3mm 、Ф2mm 、Ф1mm 、Ф0.2mm 、and 1-14mm continuous |
|
| Filter | Heat absorption ,Grey ,Red-Free ,Cobalt Blue | |
| Illumination bulb | 12V 50W halogen lamp | |
| Power | Input voltage frequency Power consuption |
110V /220V 50H 68VA |
| Weight and size | G.W N.W |
18kg 16kg |
| Main dimension | 690mm（L）× 440mm（W）× 420mm（H） |
Shipping Information:
G.W: 18kg
Packing Size: 0.3m,0.28m,0.45m
Unit: Piece
Special: No
