Description

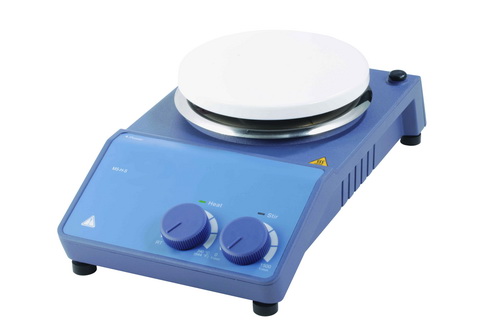

High-Temperature Digital Magnetic Stirrer

Features

1. Brushless DC motor is maintenance free and explosion-proof
2. Digital temperature control with max. temperature at 340°C
3. Digital speed control with max. speed up to 1500rpm
4. Max. stirring quantity of H2O at 20L
5. Safety circuits provide overheating protection
6. The "HOT" warning will flash if the plate temperature is above 50°C even when the hotplate is turned off
7. Wide range timer function from 1min to 99h59min (MS-H-ProT only)
8. High-resolution LCD display shows actual temperatures and speed (MS-H-ProT displays the time also)
9. External temperature control is possible by connecting the temperature sensor (PT 1000) with accuracy at ±0.2°C
10. Stainless steel work plate with ceramic coating provides good chemical-resistant performance
11. Remote function provides PC control and data transmission
12. A wide variety of accessories are available

Specifications

1. Work plate dimension: φ135mm(5 inch)
2. Work plate material: stainless steel cover with ceramic
3. Motor type: Brushless DC motor
4. Motor rating input: 18W
5. Motor rating output: 10W
6. Power: 530W
7. Heating output: 500W
8. Voltage: 100-120/200-240V 50/60Hz
9. Stirring positions: 1
10. Max. stirring quantity [H2O]: 20L
11. Max. magnetic bar [length]: 80mm
12. Speed range: 100-1500rpm/ resolution ±1rpm
13. Speed display: LCD
14. Temperature display: LCD
15. Heating temperature range: Room temp.-340°C
16. Temperature control accuracy: -
17. Over temperature protection: 350°C
18. Temperature display accuracy: ±0.5°C
19. Protection class: IP42
20. Dimension [W×D×H]: 160×280×85mm
21. Weight: 2.8kg
22. Permissible ambient temperature and humidity: 5-40°C, 80%RH
