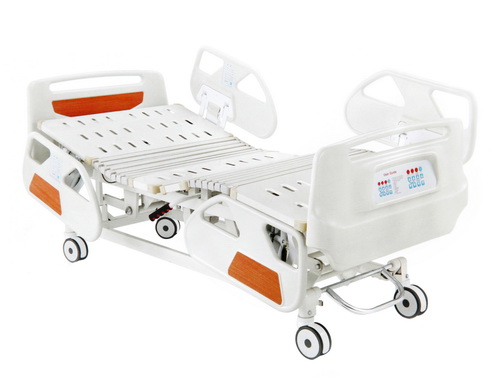

Description

Size:L2150×W1100×H500-750mm
Description Of Product:
 1)Advanced medical motors system,(4pcs motors,1 pcs control box,1 pcs handset)
 2)Cold steel plate wholly molded surface,connected with ABS soft joint.
 3)P.P head and foot board
 4)Luxury four-fold P.P guardrails,easy to lift up and down by gas spring with push buttons on guardrails
 5)Pedal central-controlled caster brake system
 6)CPR function
 7)ACP button footboard&guardrails convenience for nursing operation
Parameter:
 1)Back-rest lifting angle: 0° - 80°(±5°）
 2)Knee-rest lifting angle: 0° - 40°(±5°）
 3)Height lifting range: 500-750mm
 4)Trendelenburg tilting angle: 0°- 12°(±2°）
 5)Reverse trendelenburg tilting angle: 0°- 12°(±2°）
Accessories:
 1)I.V. pole
 2)I.V. holes and Urine hooks
Optional configuration:
 1)Linak/Timotion Motor
 2)Matress,Overbed table,oddment shelf
