Product info
- Product name:Lower Limb CPM
- Product code:CCRM2B
Packaging Specifications
- Outer Packaging Size:0.93 × 0.41 × 0.44 m
- Gross Weight:24 kg
- Net Weight:0 kg
- Volume:0.17
Description
Product Details
Application

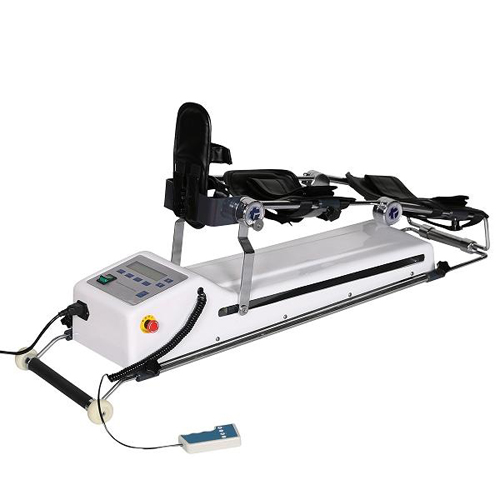

Lower Limb CPM is special for CONTINUOUS PASSIVE MOTION (CPM) of the lower limb. It is proved to be effective to increase the motion of range, ease muscle stiffness, reduce adhesion.
Scope of application: knee, ankle and hip joint
Technical feature
- Digital circuit microcomputer control
- Movement angle, speed and time from large LCD screen display
- Automatic overload reverse protection
- Knee, ankle, and hip joint are all active
Parameter
| Item | Specification |
|---|---|
| Model | CCRM2B |
| Power supply | AC220V, 50Hz |
| Power consumption | ≤30VA |
| Continuous working time | 0-240min |
| Movement angle of knee joint | 0°~125° |
| Movement angle of hip joint | 25°~100° |
| Movement angle of ankle joint | 0°~40° |
| Range of joint angle change speed | 1.5°—3.6°/s |
| Left and right movement angle of the foot plate | ≥40° |
