Product info
- Product name:Lipid Cholesterol Lipoprotein Testing System
- Product code:CCL-FA2
Packaging Specifications
- Outer Packaging Size:0.53 × 0.47 × 0.21 m
- Gross Weight:6.4 kg
- Net Weight:0 kg
- Volume:0.05
Core Parameters
- Measurement Items: Total Cholesterol (TC), High-Density Lipoprotein (HDL), Low-Density Lipoprotein (LDL), Triglycerides (TG)
- Measurement Range: TC: 2.59-10.36 mmol/L, HDL: 0.39-2.59 mmol/L, LDL: 0.52-7.77 mmol/L, TG: 0.56-7.34 mmol/L
- Measurement Time: Approx. 3 minutes/sample
- Sample Type: Whole blood, Serum, Plasma
- Sample Volume: 10 μL
- Data Storage: Stores 500 results
- Power Supply: AC 100-240V, 50/60Hz
- Operating Temperature: 18°C - 35°C
- Dimensions: 210mm × 120mm × 50mm
- Weight: Approx. 0.5 kg
- Interface: USB
- Display: LCD color display
Description

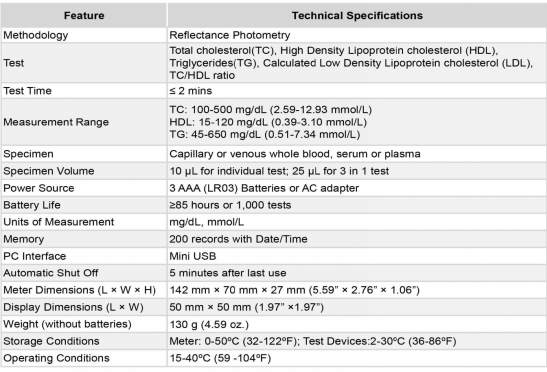

FeatureTechnical SpecificationsMethodologyReflectance PhotometryTestTotal cholesterol(TC), High Density Lipoprotein cholesterol (HDL), Triglycerides(TG), Calculated Low Density Lipoprotein cholesterol (LDL), TC/HDL ratioTest Time≤ 2 minsMeasurement RangeTC: 100-500 mg/dL (2.59-12.93 mmol/L)
HDL: 15-120 mg/dL (0.39-3.10 mmol/L)
TG: 45-650 mg/dL (0.51-7.34 mmol/L)SpecimenCapillary or venous whole blood, serum or plasmaSpecimen Volume10 μL for individual test; 25 μL for 3 in 1 testPower Source3 AAA (LR03) Batteries or AC adapterBattery Life≥85 hours or 1,000 testsUnits of Measurementmg/dL, mmol/LMemory200 records with Date/TimePC InterfaceMini USBAutomatic Shut Off5 minutes after last useMeter Dimensions (L × W × H)142 mm × 70 mm × 27 mm (5.59" × 2.76" × 1.06")Display Dimensions (L × W)50 mm × 50 mm (1.97" ×1.97")Weight (without batteries)130 g (4.59 oz.)Storage ConditionsMeter: 0-50°C (32-122°F); Test Devices:2-30°C (36-86°F)Operating Conditions15-40°C (59 -104°F)
