Product info

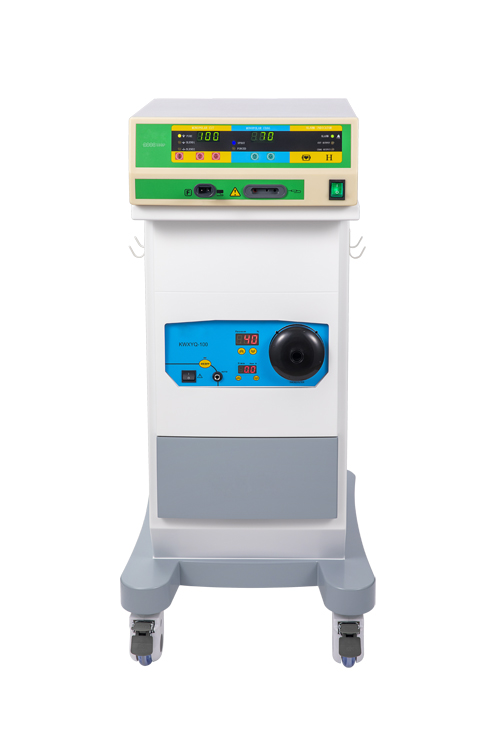

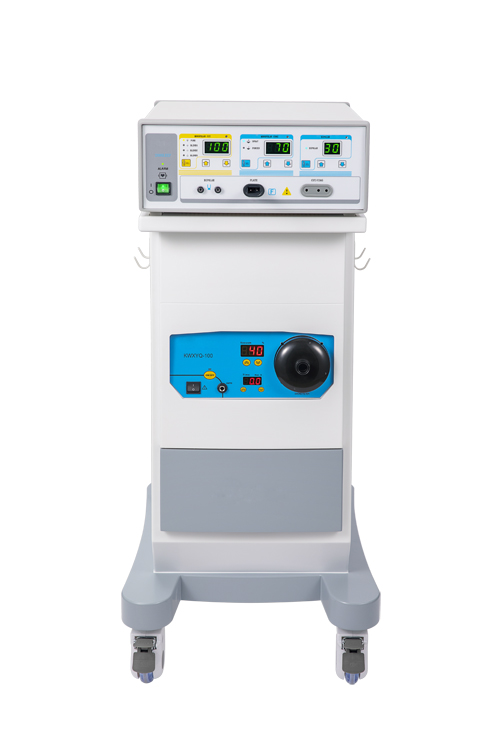

- Product name:LEEP Five working modes surgical generator
- Product code:CCS-2000-5
Packaging Specifications
- Outer Packaging Size:0.6 × 0.4 × 0.35 m
- Gross Weight:14 kg
- Net Weight:8 kg
- Volume:0.08
Description
Main Features
★ Microprocessor controlled, digital display.
★ With audible and visual indicators and errors codes during the process of outputting.
★ Return Electrode Monitoring system and Power Peak System, minimizing the risk of tissue damage.
★ Both hand and foot controlled.
★ Separate power display and outlet socket for mono-polar cut, mono-polar coag, each output can be individually configured.
■The generator adopts LEEP which specializing in gynecological intrauterine event, increasing the accuracy, controllability, security of the surgery.
■Dealing with some kinds of pathological changes in obstetrics and gynecology, for example, cutting, electrocoagulation, cervical erosion, and some kinds of surgery that fit in peritoneoscope.
■Different electrodes have different effects in coagulation.
■A smoke evacuation system is available.
■Particular illuminating ESU pencil can increase the clarity of wound healing.
★ Protection against over-voltage and over-current.
★ Defibrillation protected.
PERFORMANCE CHARACTERISTICS
Duty Cycle: Intermittent loading and continuous operation( 10s/30s)
Five Working modes
| Function | Modes | Output Power (load) | V-PP | CF |
| Monopolar Cut | Pure cut | 1-200W @800ohm load | 2.6kV | 1.5 |
| Blend1 | 1-150W@800ohm load | 4KV | 1.8 | |
| Blend2 | 1-100W@800ohm load | 4.2KV | 2.1 | |
| Monopolar Coagulation | Spray | 1-80W@800ohm load | 5.3KV | 7.4 |
| Forced | 1-120W@800ohm load | 5KV | 3.8 |
Input Power
| Input Voltage | 100-240V～±10% |
| Mains line frequency range | 50-60Hz |
| Power Rating | 1100VA |
| Power consumption | ≤1100VA |
| Fuses(two) | 5A/10A |
| Working frequency | 416KHz |
| Monopolar RF leakage current | ＜150mA |
| Bipolar RF leakage current | ＜50mA |
Standards and IEC Classifications
| Class I Equipment IEC 60601-1 |
| Type CF Equipment IEC 60601-1 |
| Spill Resistance IEC 60601-2-2 |
| Electromagnetic Compatibility IEC 60601-1-2 and IEC60601-2-2 |
Dimensions and Weight
| Length: 45cm | Width: 34cm |
| Height : 16cm | Weight: 8kg |
Operating Parameters
| Ambient temperature range: 5℃ to 40℃ |
| Relative humidity: ≤80% |
| Atmospheric pressure: 86kPa to 106kPa |

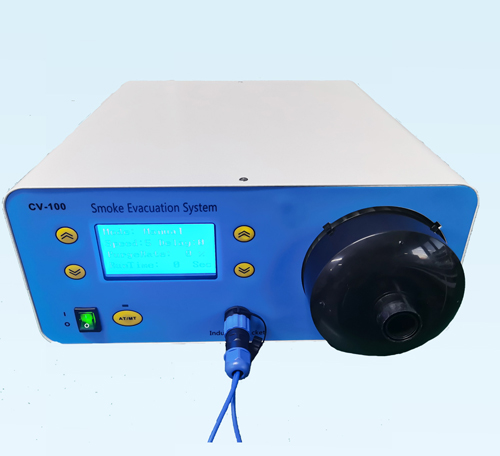

Surgical Smoke Evacuation
| blowing rate | 100 l/min @ 6mm tube |
| Start Control | Manus/Foot/Synchronize |
| Suction Adjust | 10%－100% |
| Stop delay time | 0－60s |
| AC Power | AC90~250V, 50Hz |
| Power consumption | < 350W |
| Filter Characteristics | 99.999% @ 0.1-0.2μm |
| Active Carbon | 97% @ 1 year |
Configuration Sheet
| Main unit 1set |

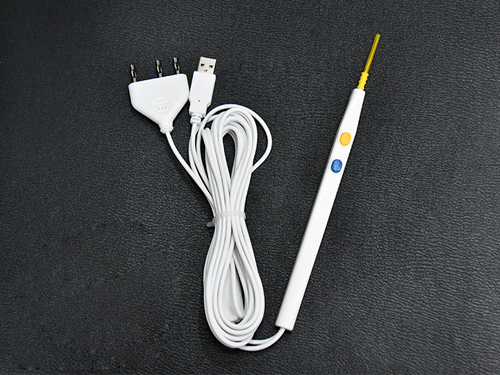

| Electrosurgical Pencil 5pieces |
| Electrosurgical Pad 10pieces |
| Electrosurgical pad cable 1piece |
| Double Footswitch 1set |

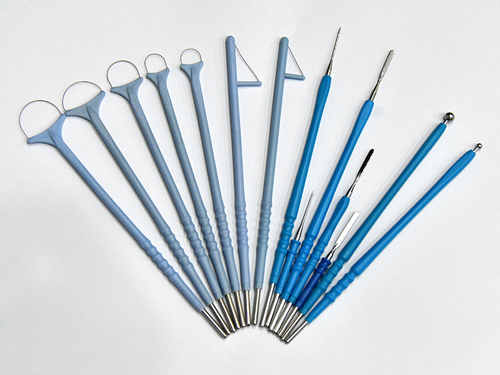

| Electrodes 1pieces |

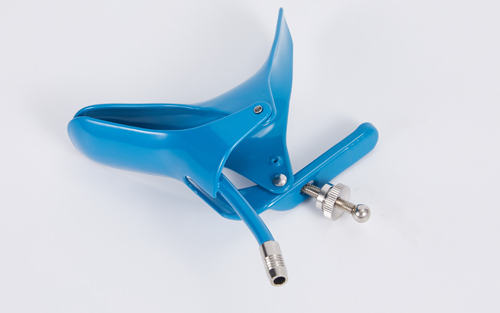

| Vaginal dilator with tube 1set |
| Surgical Smoke Evacuation 1set |
| Trolley 1set |
| Tip Clean Sponge 1piece |
| Power cable 1piece |
| Fuse 3pieces |
