Product info
- Product name:Magnetic Stirrer
- Product code:CCL-H280-P
Packaging Specifications
- Outer Packaging Size:0.3 × 0.23 × 0.18 m
- Gross Weight:3.5 kg
- Net Weight:0 kg
- Volume:0.01
Description

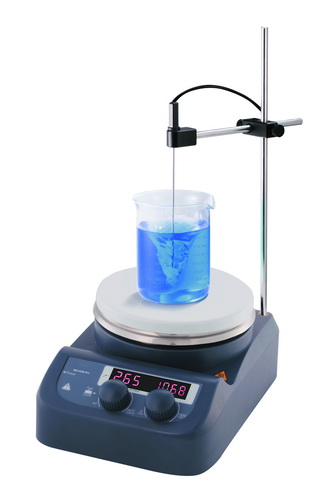

LED Digital Magnetic Stirrer with Heating
Features
- Digital temperature control with max. temperature up to 280°C
- Digital speed control with max. speed up to 1500rpm
- Stainless steel work plate with ceramic coating provides good chemical-resistant performance
- External temperature control is possible by connecting the temperature sensor (PT1000) with accuracy at ±0.5°C
- LED display shows temperature and speed
- The "HOT" warning will flash when the work plate temperature is above 50°C even if the hotplate is turned off
- Specifications
- Work plate dimension: φ135mm (5 inch)
- Work plate material: Stainless steel cover with ceramic
- Motor type: Brushless DC motor
- Motor rating input: 5W
- Motor rating output: 3W
- Power: 515W
- Heating output: 500W
- Voltage: 100-120/200-240V 50/60Hz
- Stirring positions: 1
- Max. stirring quantity [H₂O]: 3L
- Max. magnetic bar [length]: 50mm
- Speed range: 100-1500rpm
- Speed display: LED
- Temperature display: LED
- Heating temperature range: Room temp.-280°C, increment 1°C
- Control accuracy of work plate: ±1°C(<100°C), ±1%(>100°C)
- Overheating protection: 320°C
- Temperature display accuracy: ±1°C
- External temperature sensor: PT1000 (accuracy ±0.5°C)
- "Hot" warning: 50°C
- Protection class: IP21
- Dimension [W×D×H]: 150×260×80mm
- Weight: 1.8kg
- Permissible ambient temperature and humidity: 5-40°C, 80%RH
