Configuration

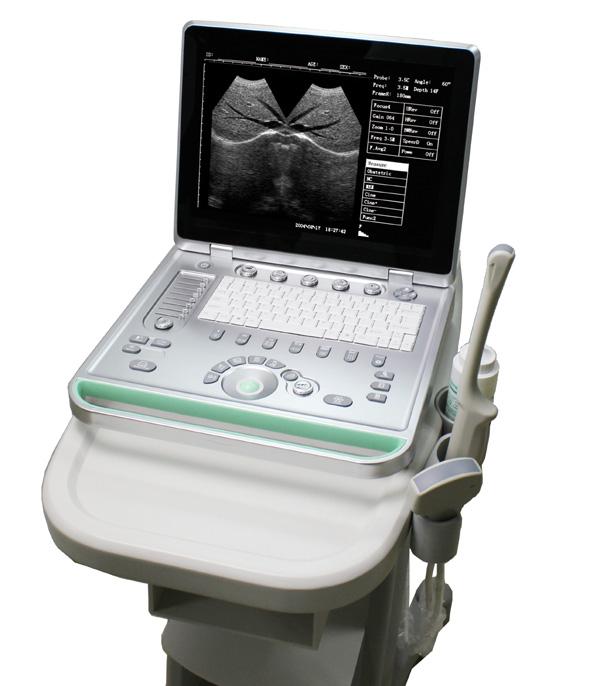

Main unit
Carry aluminum box
2 Probe connector
User Manual
Battery
Convex Probe
Feature:
-15 inches color LED screen
-Full digital imaging technology, crystal-clear Image
-Pretty and light
-8 segment TGC
-Broadband multi-frequency probes
-2 probe connector
-Silica gel backlight gravure laser keyboard
-USB flash disk large volume image storage
-Cine loop
-Built-in battery(can work more than 3-4 hours)
-High Cost-effective
Specifications:
-Display size: 15 inches color LED screen
-Working frequency: 2.0MHz~10MHz
-Display mode: B, B+B, B+M, M, 4B
-Scanning range: Convex array 60°~150°
-Amplification factor:1.0, 1.2, 1.5,2.0
-Gain control: 8 segments TGC and overall gain can be adjusted respectively
-Image processing: 8 γ corrections, frame correlation, point correlation, line correlation,
digital filtering, digital edge enhancement and pseudo color processing, etc
-Image gray-scale: 256 levels
-Scanning line number: 512 lines/frame
-Frame rate: 30 frames/second
-Digital scanning conversion: 512×512×8 bits
-Memory: USB flash disk large volume image storage
-Conventional measurements: distance, perimeter, area, volume
-Obstetric measurement: gestational weeks (BPD, GS, CRL, FL, HL, OFD, TTD, AC),
expected date of confinement and fetus weight, etc.
-Report function: auto make report
-Built-in battery capacity: can work more than 3-4 hours
-Output interface: USB port, video.
-Overall size: 362mm×340mm×60mm
-Total weight: 4Kg(with battery)

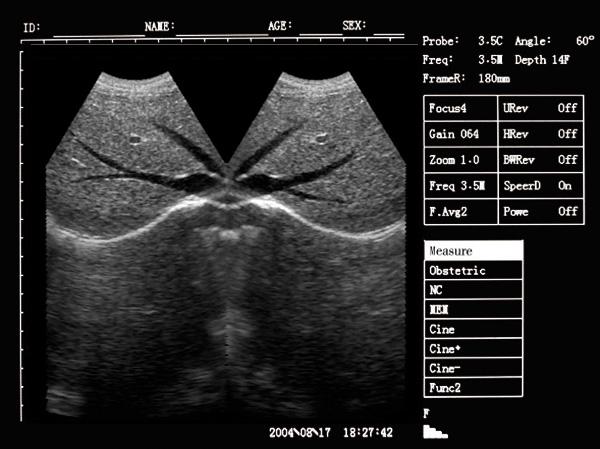

Image Example
Optional
3.5Mhz Convex Probe,
6.5Mhz Transvaginal Probe,
7.5Mhz linear Probe,
5Mhz micro-convex probe;
Biopsy;
Trolley;
Printer
Video printer, SONY UP897
Video printer, Mitsubishi P93C
Shipping Information:
G.W: 6kg
Packing Size: 0.5m,0.25m,0.44m
Unit: Piece
Special: No
