Laptop Color Doppler Ultrasound System with 3D functions

Laptop, Windows based, 15 inch LED screen, built-in battery, 2D/M/Color/PWD, frame cineloop, Powerful information management, Complete application software packages, Large capacity hard disk, USB ports, Compatible with all laser/inkjet printers
Item Code: CCB-C5
Sold: 20
    Please select the information you wantX
  • choose configuration
  • choose configuration
  • choose configuration
  • choose configuration
  • choose configuration
  • choose configuration
  • choose configuration
  • choose configuration
  • choose configuration
  • choose configuration
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
+
-
Units
  • Description
  • Imagine Photos
Specifications
Application: Abdomen, OB/GYN, Small Parts, Emergency, Veterinary, 3D Style: Portable Types: Color Doppler

Standard configuration:
main unit,
Adapter
User Manual
aluminum trunk.

Convex Probe

Characters:
Laptop, Windows based, 15 inch LED screen, built-in battery, 2D/M/Color/PWD, frame cineloop, Powerful information management, Complete application software packages, Large capacity hard disk, USB ports, Compatible with all laser/inkjet printers

2D imaging and M-type parameters
1)  Gray scale≥256
2)  Gain adjustment: distance from gain compensation ≥ 8 segments
3)  2D scanning rate: full-field, 18cm depth, rate of scan frame : ≥ 30 frames/sec;
4)  Scanning depth: ≥ 30cm
5)  The image playback reproduce: ≥ 50 frames
6)  Manual visualization adjustable focus ≥ 4 segments
7)  Display: B/M, B/D, B/CD B/D/CD can be displayed on the same screen, and the size of the display range of the M-type and PWD image are adjustable
8)  Dynamic and static images can be zoomed promise and intelligently
9)  Original data movie playback, dynamic video> 10 minutes
10)  Can be equipped with composite imaging
11)  Preset conditions can be arbitrary according to users’ different habits preset optimized image check conditions for the different organs of checks to reduce regulation and commonly required in the operation of external regulation and portfolio adjustment

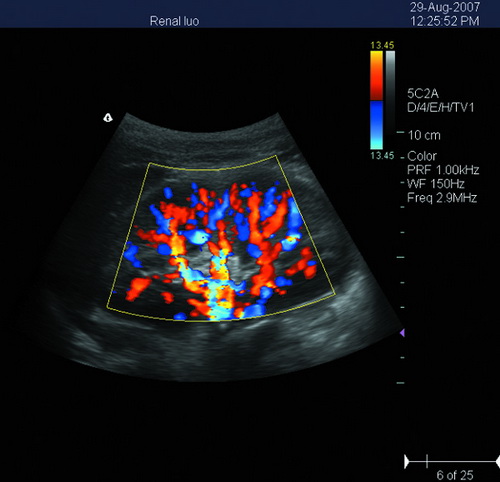

Color Doppler:
1) Display Mode: speed display, energy display
2) Color scanning rate: 18cm depth, scan range is 85 ° angle, color full-field, rate of scan frame ≥ 10 frames/sec
3) Color enhancements: color Doppler energy diagram, direction speed diagram
4)  Display position adjustment: interested range of linear array scanning : -20 ° - +20 °
5)  Display control: up/down, left/right flip, color contrast, black-and-white and color contrast, zero movement
6) Have pseudo-color function

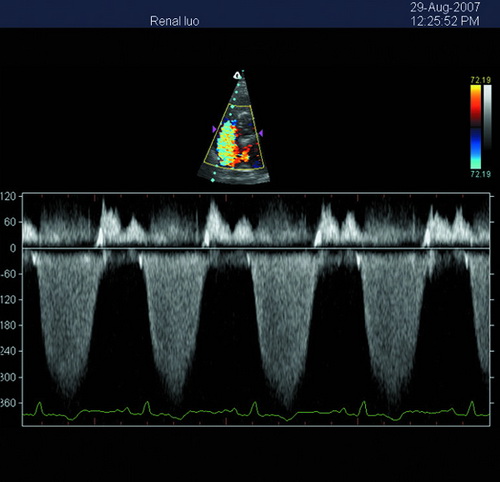

Spectrum Doppler imaging parameters:
1) Spectrum Doppler mode: pulse Doppler PWD, optional continuous Doppler CWD
2) Highest measuring flow rate: the highest measuring flow rate of unidirectional pulsed Doppler ≥ 6 m/s; the continuous Doppler unidirectional highest measurement flow rate ≥ 15 m/s
3) PWD lowest measuring flow rate: ≤ 5mm/s (not noise signals)
4) Spectrum has functions which can automatically envelope measuring and calculation
5) PWD and CWD image can be frozen for movie playback
6) Sample volume width and position adjustment :0.5 - 20mm graded adjustment
7) Zero mobile: ≥ level 6
8) Reverse Display control: with
9) Have the function of Doppler sampling then correct angle
10) Display Control: Reverse Display (up and down, left and right) ,
 scanning angle three adjustable, local amplification (steeples smart zoom)

Probe specifications:
1) Probe connector: 1
2) Broadband frequency probe technology, 2D and Doppler can use different

Optional Information,

3.5Mhz Convex Probe, 2-5mhz
Applications: Abdominal, Obstetrics, Gynecology, Regional nerve block,
Procedure and Biopsy guidance


6.5Mhz Transvaginal Probe, 5-8 mhz
Applications:  Obstetrics, gynecology


7.5Mhz linear Probe, 5-10 mhz
Applications:  Breast, small parts, nerve, vascular, venous access,
musculoskeletal, biopsy guidance


5Mhz micro-convex probe; 2-8 mhz
Applications:  Abdominal, Urology, vascular,Pediatric cardiology, pediatric abdominal, neonatal heads,Small animal


Probe connector adapter
Configuration is one, if you need extra connector

Battery
Configuration is without Li battery, if you need Li battery. It can support machine work over 3 hours.

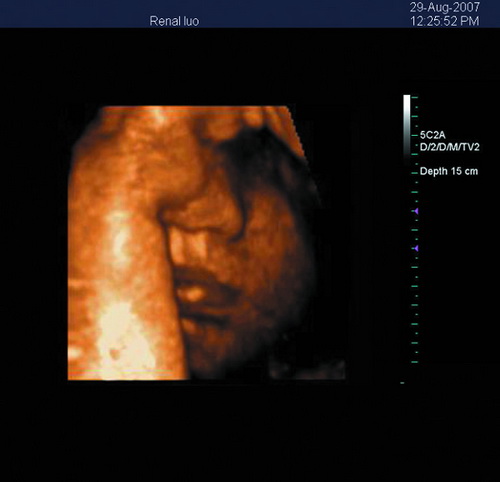

3D Functions;
Support 3D imagine

Trolley;
Suitable for portable and handheld ultrasound model,
Gross Weight: 35kg, Package Size: 87*54*37cm



Printer
Video printer, SONY UP897

Video printer, Mitsubishi P93C

B/W Laser Printer,
Color Laser Printer
Inkjet Printer
suggest you buy from your native market.

Shipping Information:

G.W: 6kg

Packing Size: 0.5m,0.25m,0.44m

Unit: Piece

Special: No
