Main use:

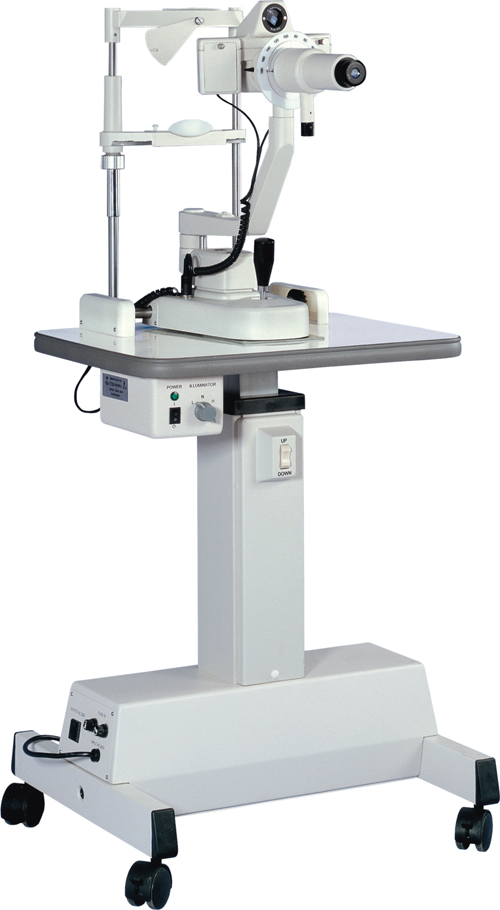

CCE-YZ38 keratometer is mainly used to measure the radius of curvature and diopter of the cornea surface, and can also be used to measure the astigmatism axis of the human eye.

main feature:
        1. The CCE-YZ38 keratometer uses the Yevre cursor (rectangular and trapezoidal cursors) and the cursor is clear and perfect.
        2. The CCE-YZ38 keratometer is equipped with an astigmatism compensator: it can be used to compensate for astigmatic aberrations caused by the dual image system and the oblique reflection of the cornea. Adjusting this device can obtain a clear outline of the cursor, even in the case of special radii and diopter. is also like this.
       3. The cursor illumination source uses two high-brightness tungsten halogen bulbs with continuously adjustable brightness.
       4. The instrument is exquisite in design and flexible in operation. It is suitable for ophthalmologists to perform intraocular lens surgery on cataracts. When installing contact lenses or corneal lasers to treat myopia, the radius of curvature of the human eye is detected.
        5. The electric lifting platform is stable and low in noise.

technical parameter:
        Measuring size: 18 × 24mm
        Distance between the test mark and the cornea: about 175mm
        Objective magnification with compensation system: 1.2x
        Eyepiece magnification: 1.5x
        Total magnification: 1.8x
        Measuring range:
            Curvature radius: 5.5~11mm
            Diopter: 30~60D
        reading:
            Minimum division value----radius: 0.02mm
                                      Diopter: 0.25D
            Refractive index calculated from diopter calculation n: 1.3375
            Minimum surface required for measurement: r = 5.5mm φ 1.65mm
                                                r=7.5mm φ2.30mm
                                                r=11mm φ4.00mm
        Astigmatic axis scale ----Scope: 0~180 °
                                       Indexing interval: 5°
        Lighting bulb: 6V20W halogen tungsten bulb two
        Input voltage: 110/220V~±10%
        Input frequency: 50/60Hz ± 1Hz
        Input power: 56VA
        Output voltage: 7.2V~11.6V
        Electrical safety standards: implementation of standard IEC601-1, class I B
        Measuring body lifting range of the instrument: 30mm
