Product info
- Product name:Imaging Device
- Product code:CCS-26003
Packaging Specifications
- Outer Packaging Size:0.25 × 0.52 × 0.36 m
- Gross Weight:8 kg
- Net Weight:0 kg
- Volume:0.05
Core Parameters
- Imaging method: DLP in-situ projection, Near-infrared (NIR) light reflection
- Maximum projection depth: ≤ 8mm
- Wavelength: 850nm
- Weight: 0.5KG
- Dimensions: 220mm (Length)
- Power source: Fast-swap lithium ion batteries or AC
- Brightness: Minimum of 5 lumens
- Optimal imaging distance: 20cm-25cm
- Frame frequency: > 30 frame/s
- Projection color: White/Green/Red light
Description

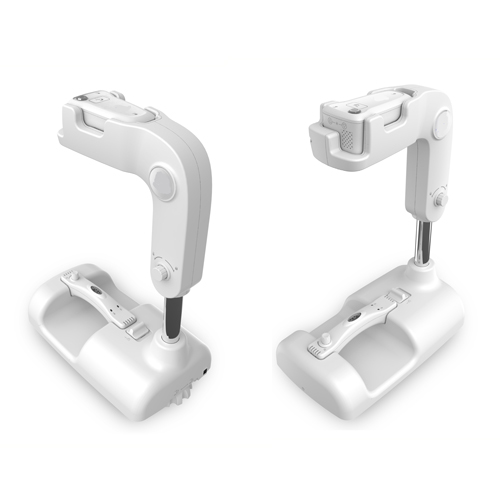

Description of infrared vein locator light device
- Portable, non-contact vein finder used in venipuncture, for displaying veins beneath the skin
- Use safe infrared light source and strong light source both, no laser, no radiation
- 3 different colors image clear and accurate, each color has 4 levels light strength
- No patient contact, no need to be sterilized after every use
- With Enhancer, easy to learn and use, just turn it on to display the veins beneath the skin
- Small size, main unit fits in your hand for convenient use
- Hands-free option, can be converted from hand held to hands-free quickly and easily
- Usual Rechargeable 18650 Lithium battery, can get on markets easily and can be taken out.
- Works in light or dark lit environments
- With Sleeping mode to save energy
