Description

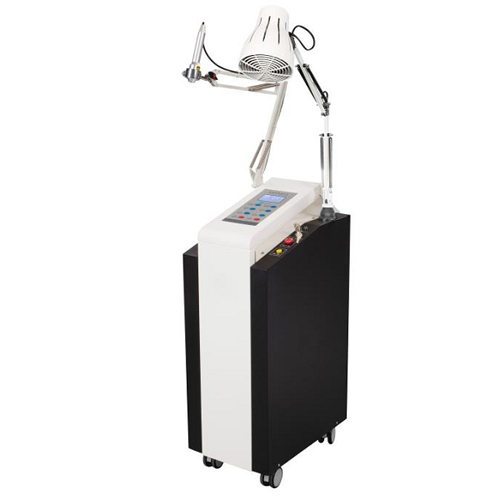

Infrared and Laser Therapy Device

Principle

Microcomputer control, dual outputs: infrared light output and laser output. Converts electrical energy into light energy for human body surface irradiation, indicated for adjuvant treatment of soft tissue pain. Light acts on painful areas, penetrates deep into tissue, enhances light energy absorption, stimulates and regulates the body, promotes cell regeneration, improves blood and lymphatic circulation, relieves inflammation and pain, reduces edema, eliminates local metabolic substances, regulates immune function, and relaxes muscles to relieve pain.

Technical Parameters

1. Rated input power: 170VA
2. Dual output modes: point output & spherical output
3. Radiator specifications

• Point radiator: length 160mm (±5mm), outer diameter 30mm (±2mm); cord length 1080mm (±10%)
• Spherical radiator: nozzle diameter 165mm (±5%)

Output wavelength

• Point radiator: 810nm (±5%)
• Spherical radiator: 690nm–940nm (±5%)

Output optical power (tolerance ±20%)

• Spherical radiator (690nm–940nm): 3–25 adjustable levels, 1 level per step
• Point radiator (810nm): 0–500mW continuously adjustable; 1mW per short press, 10mW per long press

1. Output optical power display (excluding spherical radiator); display error ±20%
2. Timing control: 0–99 minutes adjustable, 1 minute per step; timer error ±10%
3. Output optical power instability: ±5%
4. Multi‑section movable arm for flexible positioning
5. Key switch
6. Emergency laser terminator
7. Four independent universal casters
8. LCD display
9. End‑of‑treatment audio alert
10. Laser non‑thermal therapy & laser hyperthermia functions

Technical Advantages

• Clear LCD display with integrated point and spherical outputs for convenient operation
• Optimized specific wavelength spectrum with significant biological effect for reliable clinical efficacy
• Combined point and spherical radiators for point‑surface & deep‑superficial integrated treatment
• Multi‑section movable arm for flexible and easy positioning
• Equipped with key switch; clockwise rotation to power on
