Product info

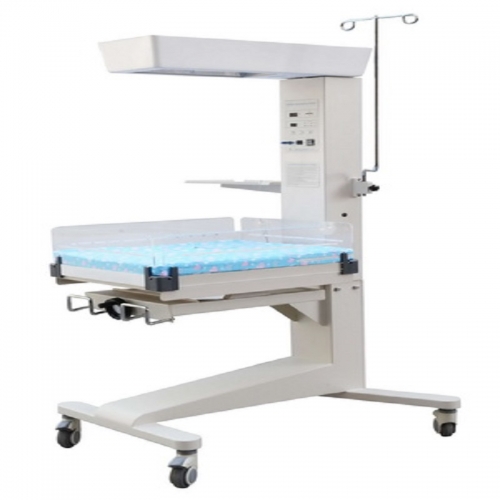

- Product name:Infant Radiant Warmer
- Product code:CCI-1000
Packaging Specifications
- Outer Packaging Size:1.1 × 0.9 × 1.1 m
- Gross Weight:115 kg
- Net Weight:0 kg
- Volume:1.09
Description
Technical Specifications
- Temperature Control Range: 25 °C – 37 °C
- Temperature Sensor Accuracy: ≤ 0.3 °C
- Mattress Surface Temperature Uniformity: ≤ 2.0 °C
- Temperature Rise Time: ≤ 45 minutes
- Heat Output Indication: 0–100 % in 10 % increments
- Radiant Box Horizon Angle Adjust Range: 0–90°, stepless adjustable
- Bed Tilt Adjustment: Continuously adjustable in ± 10°
- Mattress Tray Size: 1700 px × 1350 px
- Mattress Tray Max Load: 10 kg
- Transfusion Pole Max Load: 2 kg
- Shelf Max Load: 2 kg
Alarms
- Sensor failure alarm
- Over-temperature alarm
- Deviation alarm (± 1 °C)
- Power failure alarm
Environment Conditions
- Operating Temperature Range: 18 °C – 30 °C
- Storage Temperature Range: -40 °C – +55 °C
- Operating Humidity Range: 30 %RH – 75 %RH
- Storage Humidity Range: ≤ 93 %RH
- Transport & Storage Atmospheric Pressure Range: 500 hPa – 1060 hPa
- Operating Atmospheric Pressure Range: 700 hPa – 1060 hPa
- Ambient Environment Stream Velocity: ≤ 0.3 m/s
