Description

Introduction

The CCE-EH5000 Holter system is composed of:

• ECG recorders
• A computer system
• A laser printer
• Software
• Key highlights:
• Recorder has built-in flash storage media for expanded memory capacity.
• 1000 sampling/sec rate improves waveform quality.
• Software is validated with AHA and MIT datasets to ensure high accuracy.

Features

1. Windows-based software interface
2. Quick and accurate analyzing system
3. Special editing system for R-point annotation
4. Advanced ST-segment analysis function
5. Full-channel T-wave analysis and T-wave trend graph display
6. ECG trend graph review
7. Heart Rate Variability (HRV) analysis: provides SDNN, SDANN, RMSSD, LF, HF, and other time-domain/frequency-domain parameters
8. QT analysis and QT trend graph
9. Direct pacing ECG acquisition (no separate channel required); optional functions include VCG, LPG, high-frequency ECG, and FCG

Recorder Specifications

1. 12-channel synchronized ECG acquisition

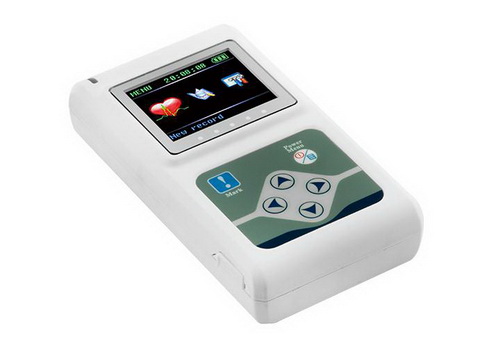

2. Compact recorder with OLED color screen, displaying real-time ECG waveforms and stored data
3. Maximum storage capacity: 2GB
4. Selectable sampling rates: 200, 500, or 1000 sampling/sec
5. Sampling accuracy: 12-bit
6. Built-in FLASH storage media to prevent damage from repeated insertion/removal
7. USB interface for data transfer

Package Contents

• 1 × Holter recorder
• 1 × Software CD
• 10 × Patient cables
• 10 × Disposable ECG sensors
• 1 × Recorder hanging pouch
• 1 × USB data download cable
• Instruction manual
• 2-year warranty
