Product info

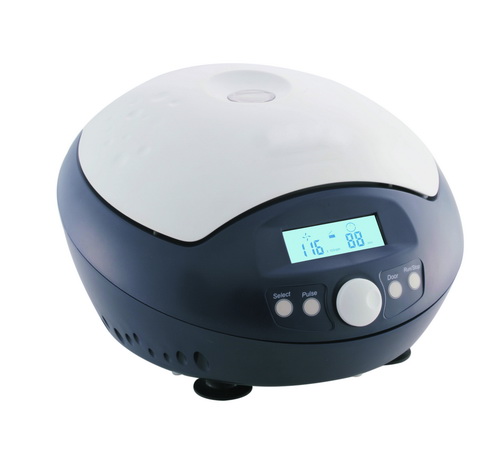

- Product name:High Speed portable centrifuge machine
- Product code:CCL-D2012P
Packaging Specifications
- Outer Packaging Size:0.45 × 0.35 × 0.25 m
- Gross Weight:8 kg
- Net Weight:0 kg
- Volume:0.04
Description
Specifications
- Type: TableTop
- Speed Type: High Speed (≥10000rpm)
- Max speed rpm: 15000
- Application: Beauty, Hematocrit, Blood Bank, Cell Smear
Features
- Powerful centrifugal force of 15100×g and max speed of 15000rpm for various applications.
- Brushless DC motor accelerates the rotor to the set speed quickly and efficiently.
- The rotor is designed for 1.5/2.0mL tubes, and supports smaller 0.2mL and 0.5mL tubes via adapters.
- Quiet operation: Low noise ≤56dB.
- Certified by international safety standards: CE, cTUVus, FCC, and compliant with IEC/EN 61010-1 and MCA tests.
Technical Specifications
| Parameter | Value |
|---|---|
| Max. Speed | 15000rpm (500–15000rpm, increment: 100rpm) |
| Max. RCF | 15100×g (increment: 100×g) |
| Speed Accuracy | ±20rpm |
| Rotor Capacity | 0.2mL / 0.5mL / 1.5mL / 2mL × 12 |
| Run Time | 30sec–99min / Continuous |
| Driving Motor | Brushless DC motor |
| Safety Devices | Over-speed detection, over-temperature detection, automatic internal diagnosis |
| Power | AC110V-240V, 50Hz/60Hz, 3A, 100W |
| Noise Level | ≤54dB |
| Acceleration/Braking Time | 11s↑ / 9s↓ |
| Dimension (D×W×H) | 255×245×140mm |
| Weight | 6kg |
| Certifications | EMC, CE, FCC, ICES, cTUVus, CB |
Advanced Features
- Speed/RCF switchable display
- Short-time run function (pulse mode)
- Sound-alert function
Standard Configuration
High Speed Mini Centrifuge (CE marked), with A12-2P plastic rotor kit (included in the box).
Optional Accessories
| Accessory | Description |
|---|---|
| A12-2P | Plastic rotor kit (15000rpm, 2mL×12, with lid, clips, and O-ring) |
| A02P2 | 2mL to 0.2mL rotor adapter (24pcs/pk, for A12-2, A12-2P, AS24-2, A24-2P rotors) |
| A05P2 | 2mL to 0.5mL rotor adapter (24pcs/pk, for A12-2, A12-2P, AS24-2, A24-2P rotors) |
