Product info

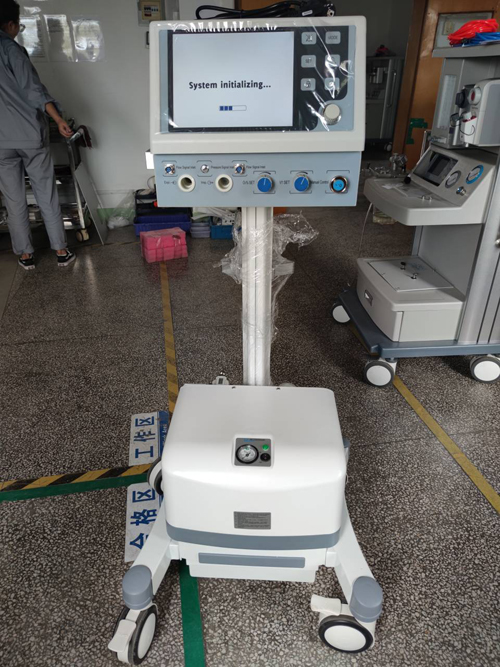

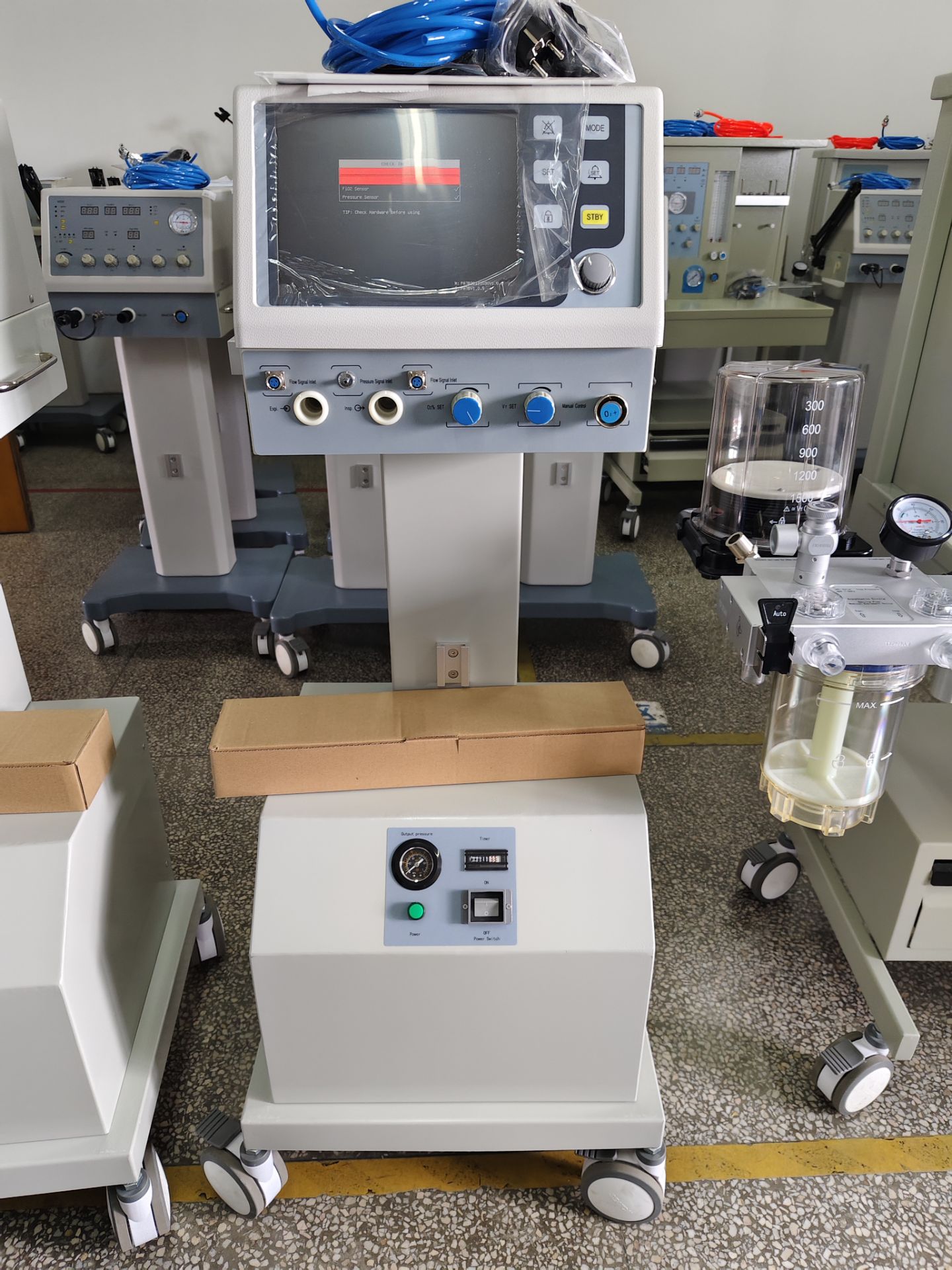

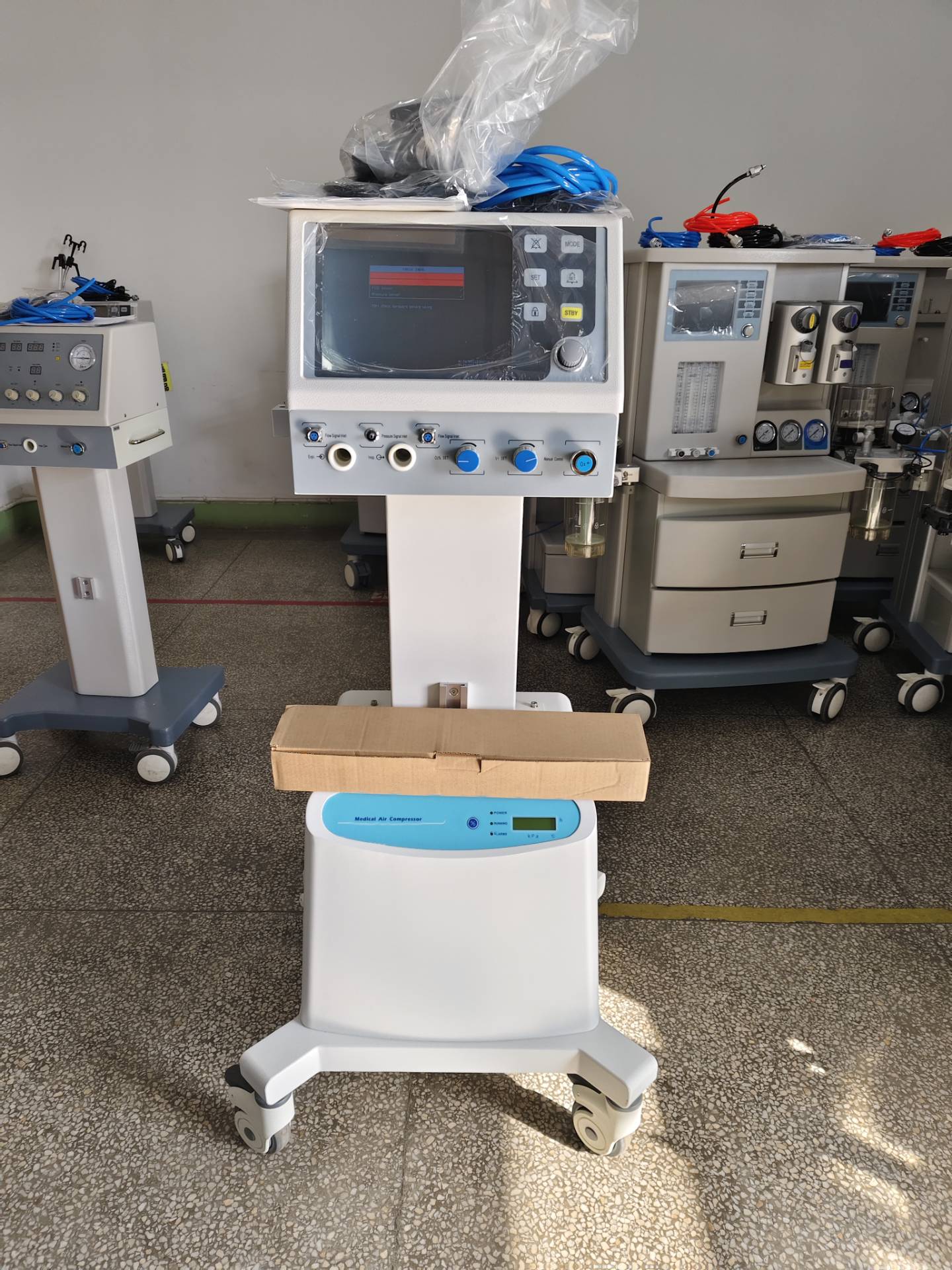

- Product name:Ventilator
- Product code:CCV-PA700B2
Packaging Specifications
- Outer Packaging Size:1 × 1 × 0.55 m
- Gross Weight:81 kg
- Net Weight:0 kg
- Volume:0.55
Core Parameters
- Patient type: Adult & pediatric patients
- Dimensions (H x W x D): 124.cm x67 cm x60 cm

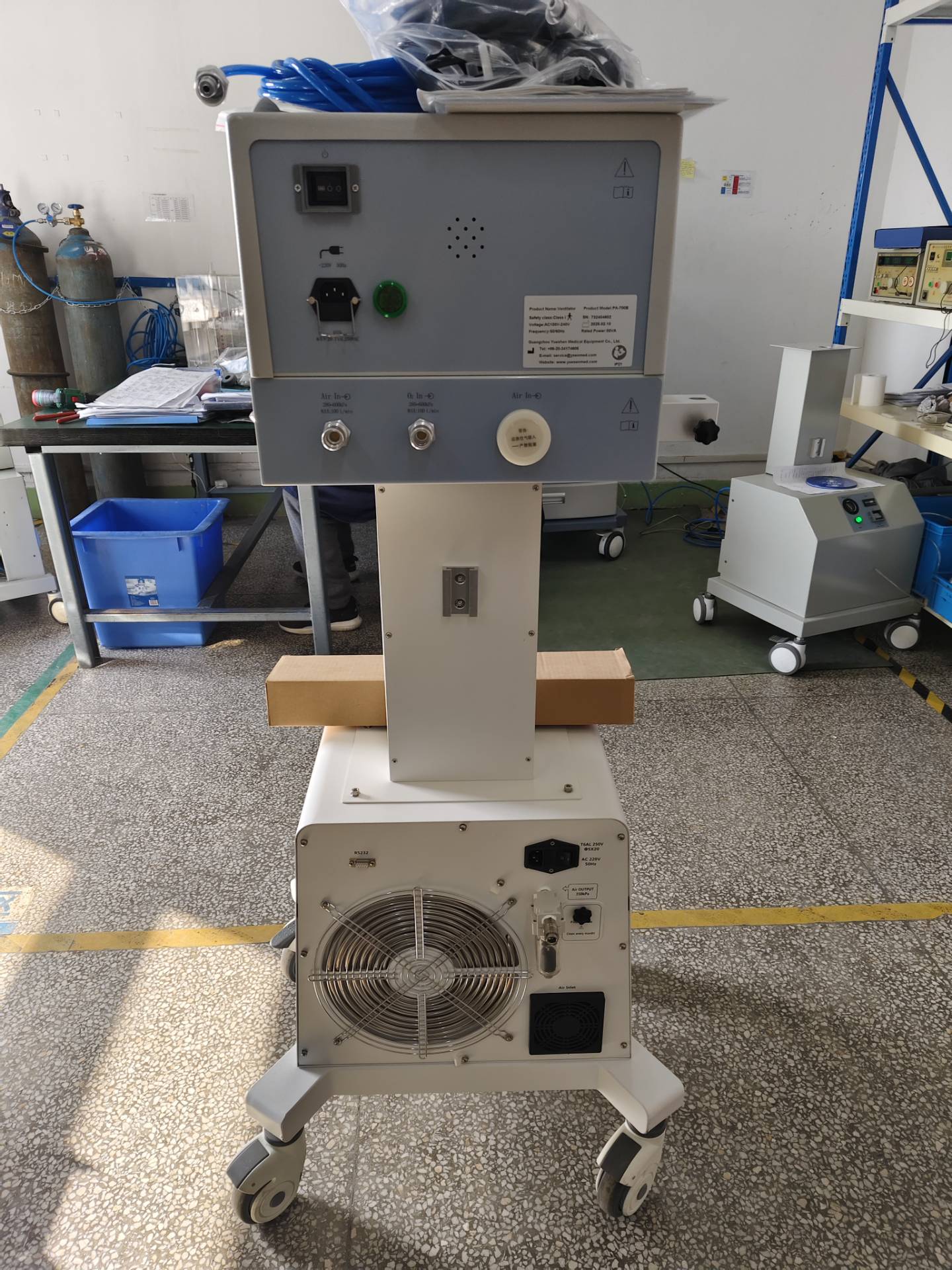

- Weight: 77 kg (with PA air compressor attached)
- Power: 220-240 V, 50-60 Hz

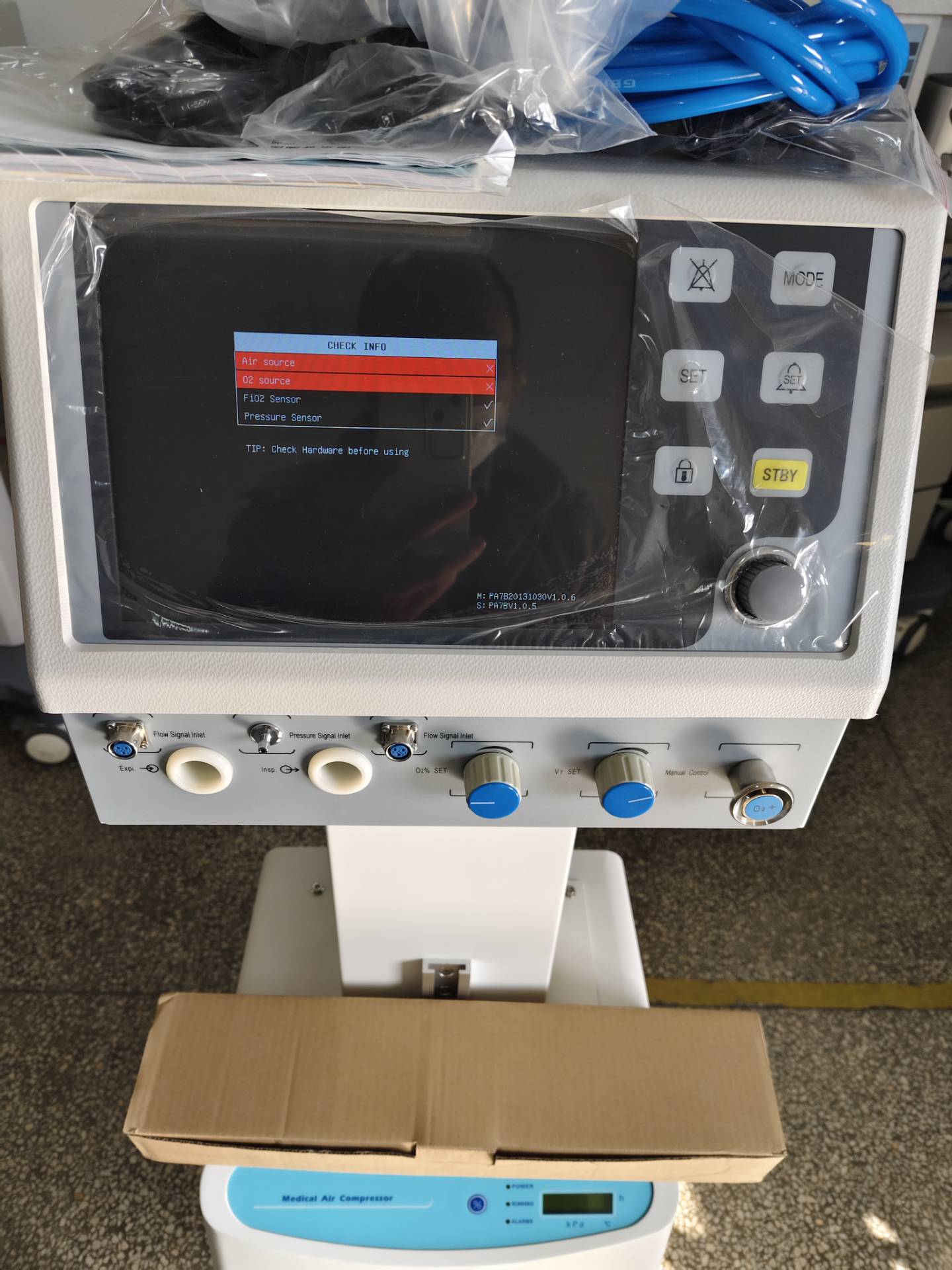

- Display: 10.4 inch TFT display
- Tidal volume: Adjustable range: 50-1500 ml, Display range: 0-2000 ml
- Respiratory rate: 1-99 bpm
- Inspiratory pressure limit: 10-60 cmH20
- Ventilation modes: Manual, Spontaneous, Standby, Assist/Control (A/C), Intermittent Positive Pressure Ventilation (IPPV), Synchronized Intermittent Positive Pressure Ventilation (SIPPV), Intermittent Mandatory Ventilation (IMV), Synchronized Intermittent Mandatory Ventilation (SIMV)
- Minute volume: 218 L/min BTPS
- PEEP: 0-10 cmH20
- O2 concentration: 21-100 %
Description
Main technical specifications
Breathing Mode: A/C, IPPV, SIPPV, IMV, SIMV, PEEP, SIGH, SPONT, MANUAL
Tidal Volume: 0~2000ml
I/E Ratio: 4:1 ~ 1:4
Respiration Frequency: 1~99 bpm
IMV Frequency: 1~20 bpm
Lung compliance: ≤30 mL / kPa
Oxygen Concentration: 21%~100%
Maximum Minute ventilation: ≥18L / min
Pressure Limited: 1.0kPa~ 6.0kPa
PEEP: 0 ~ 1.0 kPa
Ptr: -1.0kPa~1.0kPa
Max .Safe Pressure: ≤6.0 kPa
Trigger Method: Pressure Trigger
Control Method: Pressure Control
Ventilation monitoring
Tidal volume, Minute ventilation, Frequency, Airway Pressure, I/E, inspiration time, PEEP, FiO2, Waveform of time-airway Pressure and so on.
