Description

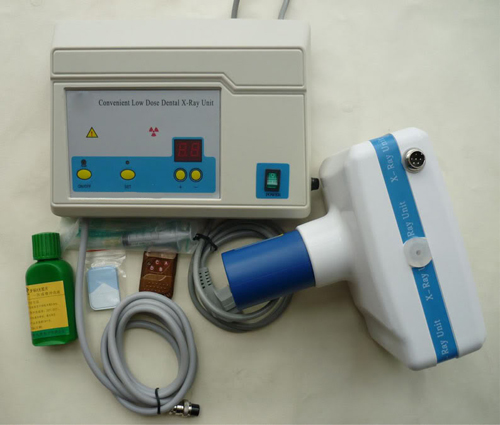

Portable High Frequency Dental X-ray Machine

The portable dental X-ray machine is a high-frequency imaging device designed for intraoral radiography in dental clinics. It allows dentists to obtain instant X-ray images directly at the chairside without moving the patient.

Clinical Workflow

Typical use in dental treatment:
Patient seated in dental chair
X-ray unit positioned near oral cavity
Exposure performed (0.1–0.2 sec)
Image captured via sensor or film
Immediate diagnosis

Main Applications

● Root canal treatment (endodontics)
● Dental implant planning
● Cavity detection
● Orthodontic evaluation
● Pre- and post-treatment comparison

Product Advantages

1. Portable Design
● Handheld operation
● No fixed installation required
● Suitable for small clinics

2. High Image Clarity
● 60kV stable output
● 0.4mm focal spot
● Clear tooth root imaging

3. Low Radiation Safety Design
● Internal shielding structure
● Low leakage radiation
● Safe for clinical daily use

4. Fast Workflow
● Chairside imaging
● No patient movement required
● Improves clinic efficiency

Technical Specifications

● Tube voltage: 60kV
● Tube current: 2mA
● Exposure time: 0.1–2.0s
● Frequency: 30kHz
● Focal spot: 0.4mm
● Battery-powered system

Compatible Systems

● Digital sensor
● Film imaging
● PSP plates
