CCX-00C202 High Frequency Digital Radiography System

The CCX-00C202 is a state-of-the-art high-frequency digital radiography system designed for comprehensive medical imaging applications. This advanced DR system delivers superior image quality, enhanced workflow efficiency, and exceptional reliability for diagnostic imaging centers and hospitals.

Key Features and Advantages

Complete Digital Radiography Solution

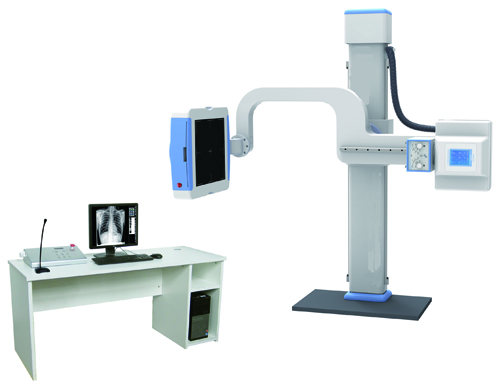

The CCX-00C202 provides a comprehensive DR imaging solution with integrated workstation and motorized U-arm system. The system combines high-frequency X-ray generation, advanced flat panel detection, and intuitive digital workflow for efficient radiographic examinations.

Advanced Digital Workstation

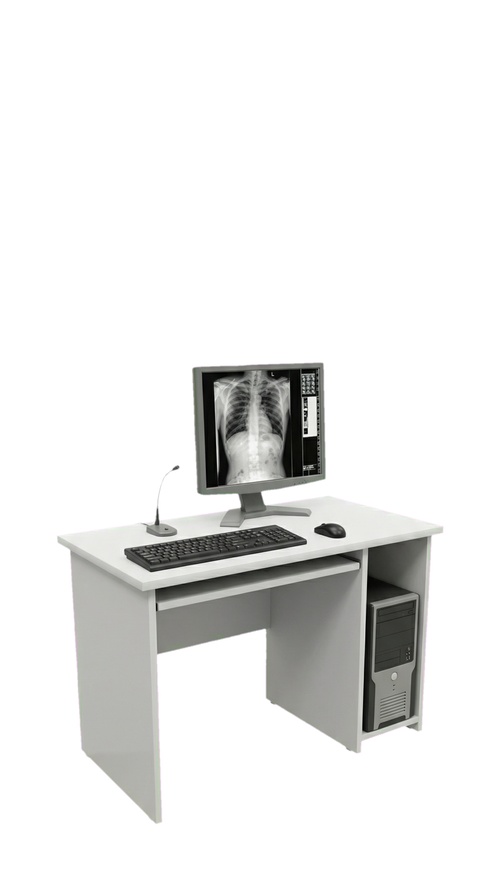

The integrated workstation features a 19" high-resolution LCD monitor with intuitive touchable screen interface. Equipped with DICOM-compliant image management software, the system enables seamless case registration, automatic image acquisition, and comprehensive image processing capabilities including tissue equilibrium, gamma correction, and edge extraction.

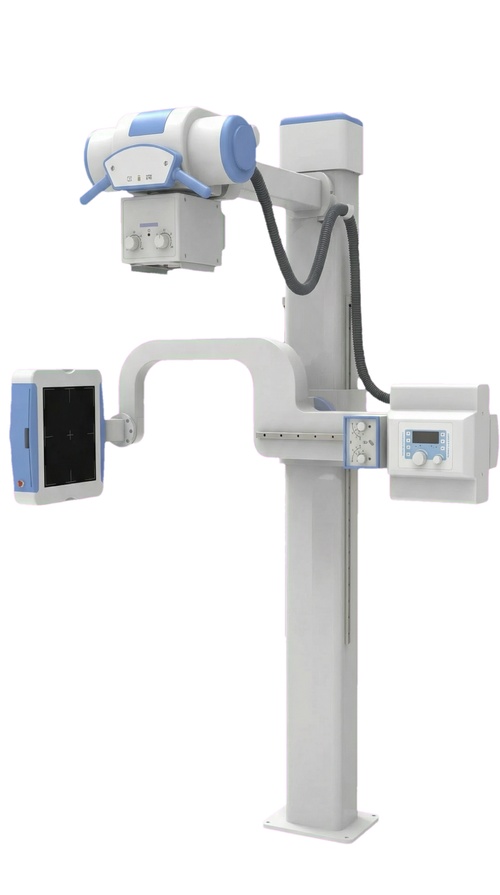

Flexible U-Arm Design with High-Resolution Detector

The motorized U-arm provides extensive positioning flexibility with ≥1250mm vertical movement range and ≥800mm focus-screen movement range. The rotation range of -40° to +130° allows for comprehensive radiographic examinations. The 17"×17" CsI flat panel detector with 3K×3K pixel resolution delivers exceptional image clarity with 3.7LP/mm spatial resolution.

Clinical Imaging Applications

The CCX-00C202 delivers superior image quality across a wide range of clinical applications. Below are sample X-ray images demonstrating the exceptional diagnostic clarity achieved with this advanced DR system:

These clinical images showcase the system's capability to produce high-resolution diagnostic images for:

• Spine Imaging: Clear visualization of lumbar and cervical vertebrae for spinal assessments
• Chest Radiography: Detailed lung and thoracic structure imaging for respiratory diagnostics
• Abdominal Imaging: Comprehensive abdominal and pelvic region visualization
• Orthopedic Applications: Precise imaging of bones, joints, and surgical implants
• Trauma Assessment: Rapid and accurate fracture detection and evaluation

Technical Specifications

Digital Workstation Features

• Case Registration: Auto registration with DICOM Worklist SCU integration
• Image Acquisition: Automatic window adjustment, cropping, and transmission
• Image Processing: Tissue equilibrium, W/L adjustment, gamma correction, edge extraction, shadow compensation, noise reduction, and multiple enhancement filters
• DICOM Compliance: Full DICOM image transmission, storage, viewing, and printing support
• PACS Integration: Seamless connection to hospital PACS systems

Mechanical Movement

The self-designed and manufactured electric U-arm mainframe can move up and down, and rotate in a wide range, which can satisfy the requirements of multi-site photography. Adopting original Italian geared motor, the features are reliable performance, lower noise, and longer service life. The unique three-dimension and three independent control system can achieve one-key reposition.

Why Choose the CCX-00C202?

The CCX-00C202 represents the perfect balance of advanced technology, clinical versatility, and operational efficiency. With its high-frequency generator, superior flat panel detector, and flexible U-arm design, this DR system delivers exceptional diagnostic images while minimizing patient radiation exposure. The intuitive digital workstation and DICOM-compliant workflow ensure seamless integration into modern healthcare facilities.
