Description

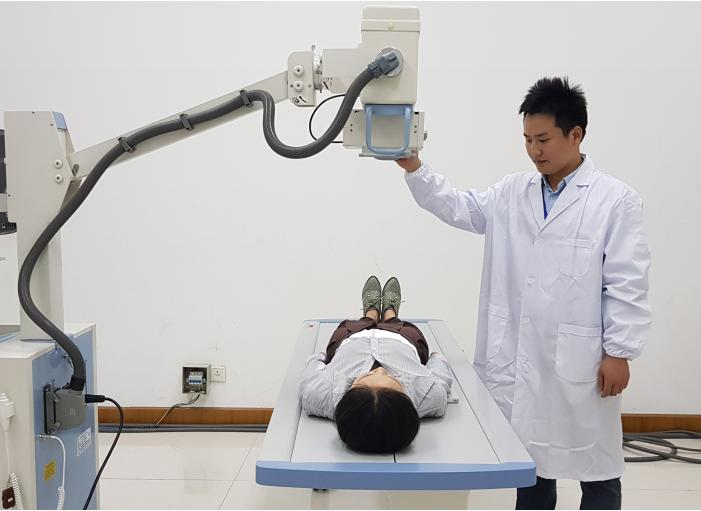

CCX51C High Frequency Digital Mobile X-ray Machine

Core Overview

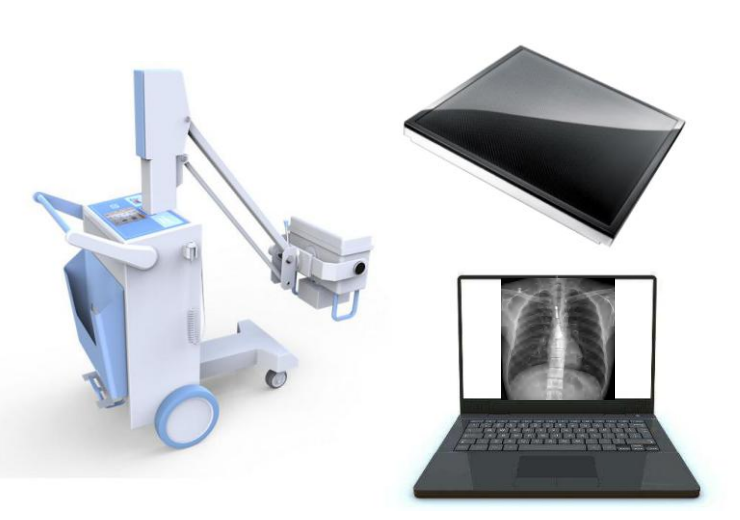

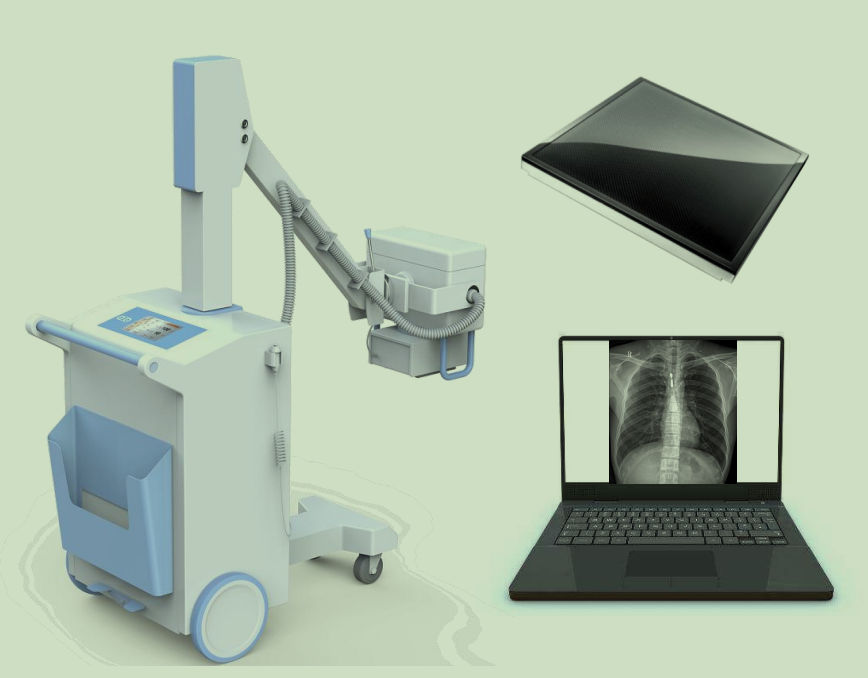

CCX51C is a high frequency digital mobile X-ray system integrating mobile X-ray machine, flat panel detector and portable workstation, featuring built-in battery, dual power supply mode, flexible movement and humanized operation. It supports full-body digital radiographic examinations, is compatible with optional matching auxiliary equipment, and has standard DICOM3.0 interface for hospital information system docking. Suitable for radiology departments, orthopedics, wards, emergency rooms, operating rooms, ICUs and other clinical departments, it meets the high-efficiency mobile digital imaging needs of various scenarios with stable performance, low radiation dose and high-quality imaging effects.

Ⅰ. Core Product Specifications

1. Generator output: 5.0 kW
2. kV range: 40 kV - 120 kV (1kv step)
3. mA range: 25~100 mA
4. Exposure performance: 4 films per min, ≤20 ms per film
5. X-ray tube: Stationary anode tube, focal spot 1.5*1.5 mm
6. Collimator: Bright field light beam collimator (120 W halogen lamp), with auto shut-off facility
7. Power supply: Single phase 220V±10%, 50Hz; built-in 110V voltage transformer compatible for different power conditions
8. Mobile stand: Light-weight, low height, easily maneuverable; humanized handle design for convenient movement
9. Movement range: Max distance from ground ≥2000mm, min distance ≤500mm; horizontal axis rotation 180°, vertical rotation ±90°; collimator rotation 180°, column rotation ±90°
10. Control & operation: Colorful touch screen with human graphic design (easy to set kV, mA, exposure time, positioning); big cassette (detector) holder
11. Exposure control: Wired hand controller + 10-meter microwave wireless remote control (no barrier/directional restriction)
12. Accessory: Durable power cord with adequate strain reliefs; power plugs matching max voltage/current

Ⅱ. Optional Matching Equipment

1. Upright bucky stand: Ascending & descending range 560-1625mm, film size 5''×7'' - 17''×17''; equipped with imported Korean JPI Grid (size 5''×7'' - 18''×18'', ratio 10:1, density 103L/inch, focal distance 150cm)
2. Mobile radiography table: 2000mm(L)*700mm(W), height 500mm, cassette moving 1150mm; 360° rotatable wheels with independent brakes for easy fixation

Ⅲ. Core Product Advantages

1. Integrated High-Frequency HV Monoblock: 27 years of R&D and production experience for stable quality; 50kHz inverter frequency (world top-level technology) for high-quality X-ray and low radiation dose; 500KJ thermal capacity supporting long-time continuous exposure; digital closed loop control + fault alarm function; simplified internal structure with fewer cables, compatible with 110V voltage transformer.
2. Built-in Rechargeable Battery & Dual Power Supply: Built-in high-capacity battery, supporting about 200 images after full charge; AC/DC dual power supply mode, free from fixed power supply constraints, more flexible for mobile use.
3. High-Performance Flat Panel Detector: Whole-plate non-spliced design with world-leading cesium iodide + amorphous silicon technology; 17”x17” detection area, 3.3Lp/mm spatial resolution, 150μm pixel size, 14bit output gray scale, greatly improving imaging performance and detail capture.
4. Humanized Structural Design: Self-balance technology for support arm (stops at any position for easy operation); humanized handle design (no need to bend over when moving); big cassette (detector) holder for convenient use.
5. Professional Portable Workstation (Model IC12A): Configured with CPU ≥i3, memory ≥4GB, hard drive ≥64GB; pre-installed Perlove professional imaging software, meeting on-site image processing and diagnosis needs.
6. Network Compatibility & Standard DICOM3.0 Interface: Supports DICOM storage, film printing and transferring; barrier-free docking with hospital PACS system, realizing image sharing, archiving and remote diagnosis; complete networking and information output functions.
7. High-Quality Imaging & Anti-Scattering: Equipped with grids to reduce fog and scattered rays, improve image contrast, and ensure high-quality clinical diagnostic images for all human body parts.

Ⅳ. Core Clinical Application & Compatibility

1. Applicable Departments: Radiology department, orthopedics, ward, emergency room, operating room, ICU and other clinical departments; supports radiographic examinations of head, limbs, chest, spine, lumbar vertebrae, abdomen and all other human body parts.
2. Scenario Adaptability: Meets mobile imaging needs of ward rounds, emergency treatment, intraoperative testing, on-site diagnosis and other scenarios; flexible movement and dual power supply make it suitable for complex clinical environments without fixed power supply.
3. Auxiliary Equipment Compatibility: Works with optional upright bucky stand and mobile radiography table to meet various clinical positioning requirements, improving examination flexibility and applicability.
