CCX18W High Frequency Mobile Digital FPD C-arm System (Wireless)

Core Overview

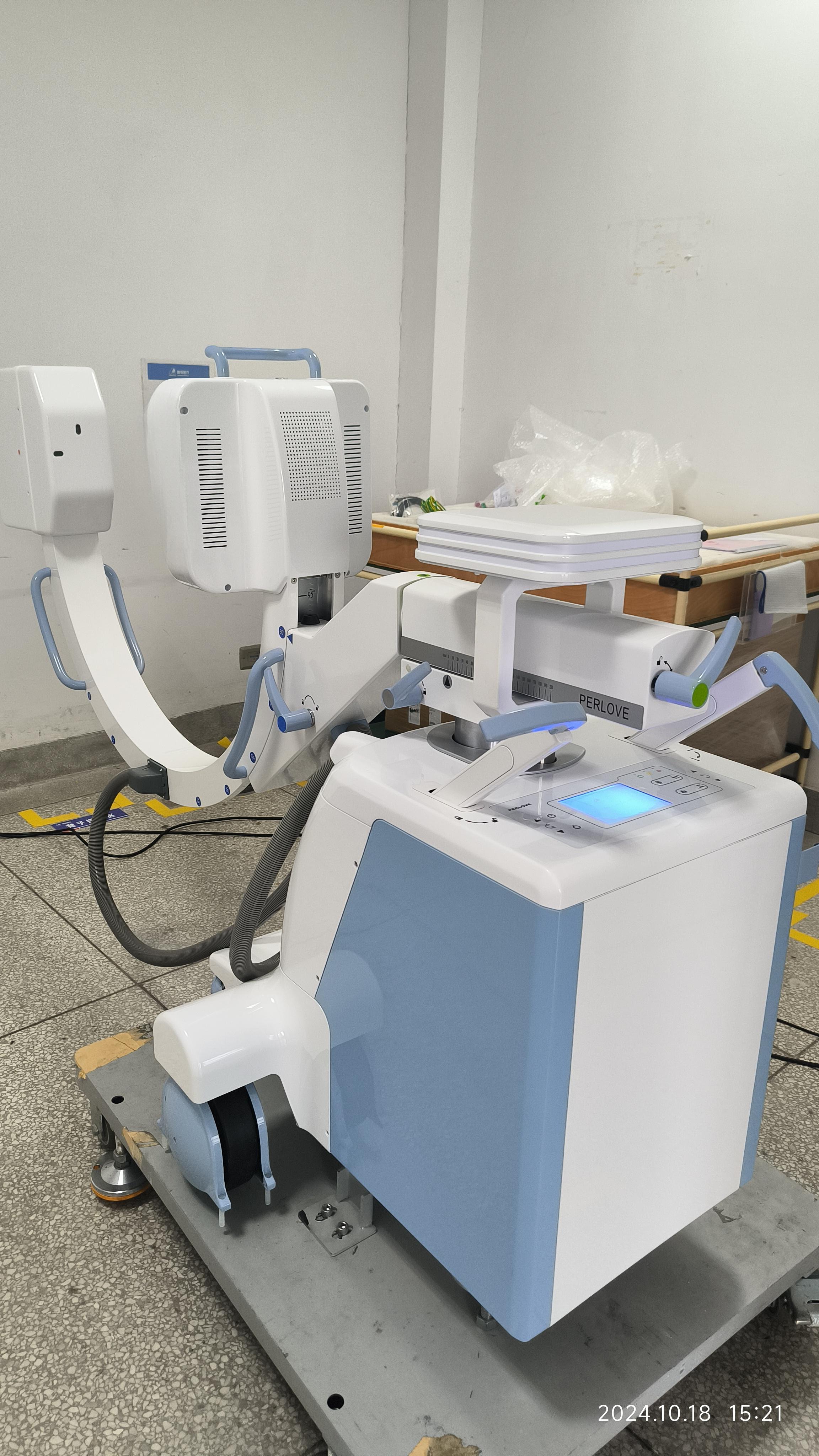

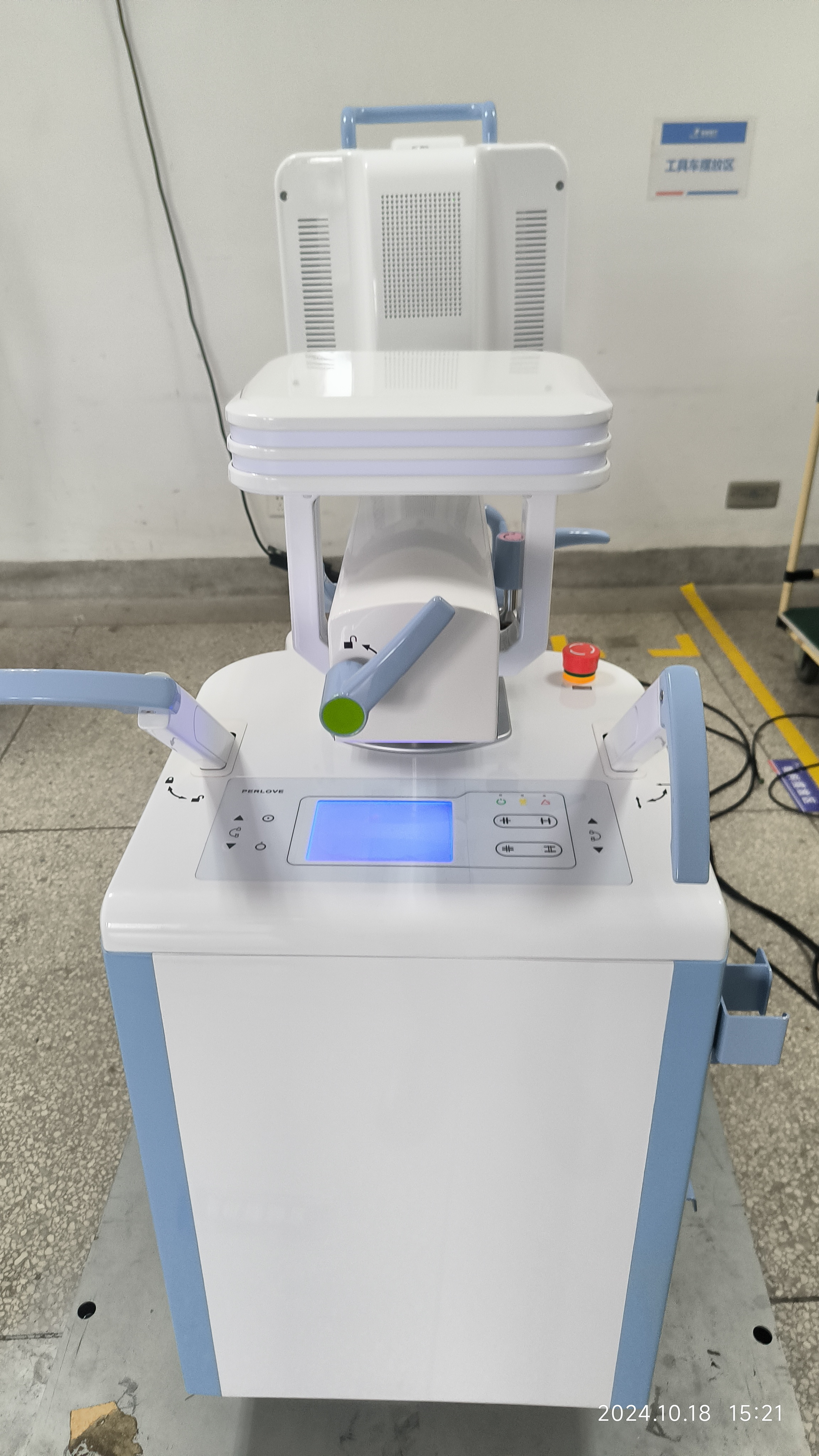

CCX18W is a wireless high-frequency mobile digital FPD C-arm system featuring a compact design, wireless data transmission, low-dose radiation and ultra-high-definition imaging. Equipped with a 5.0kW high-frequency generator, 9*9 inch dynamic flat panel detector (FPD), proprietary "Vinci" image processing system and dual red light cross positioning, it integrates fluoroscopy, photography and intelligent image processing functions. The system supports WIFI wireless connection between the C-arm and workstation, DICOM3.0 standard interface and remote maintenance, with flexible mechanical movement and humanized operation design. Suitable for emergency, general surgery, orthopedics and other multiple clinical departments and operating rooms, it provides efficient, safe and high-precision imaging support for various surgeries.

Basic Product Parameters

• Packing: 2500x1200x1480mm, total volume 4.5m³
• Weight: Gross weight 650kg, Net weight 500kg
• Power Supply: Single power 220V±10% input

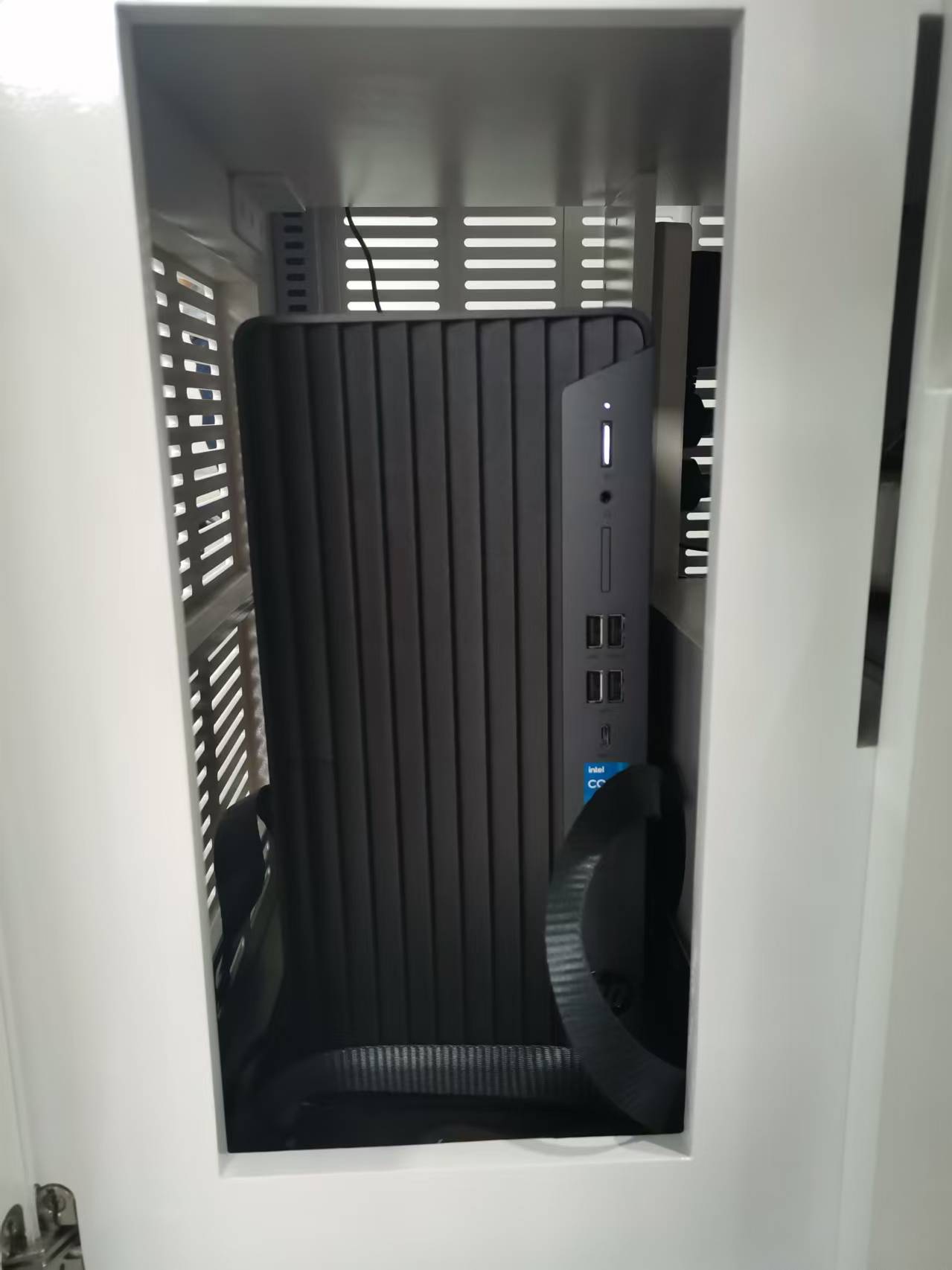

• Core Configuration: New-design C-arm main frame, 5.0kW combined high-frequency HV generator monoblock, 9*9 inch dynamic FPD, 3 sets of 19” medical LCD monochrome displays, digital acquisition/processing workstation, imported dense grain grid, electric adjustable beam limiter, 2 sets of red light cross positioners, handheld controller, etc.

Key Technical Specifications

1. Generator & Exposure Performance

• Power Output: 5.0kW high-frequency inverter, main inverter frequency 110kHz
• Fluoroscopy Modes:
• Photography Parameters: 40KV~120KV tube voltage, 25mA~100mA tube current, 1.0mAs~280mAs
• X-ray Tube: Perlove high-frequency special tube, dual focus 0.6/1.8mm, thermal capacity 650Kj (867kHu)

2. Imaging System & Workstation

• Dynamic Flat Panel Detector (FPD): 99 inch, amorphous silicon + cesium iodide; image acquisition matrix 10241024, 16bit grayscale, 205μm pixel size, 74% DQE, 2.5LP/mm spatial resolution; effective field of view increased by 22% compared to image intensifier, no geometric distortion.

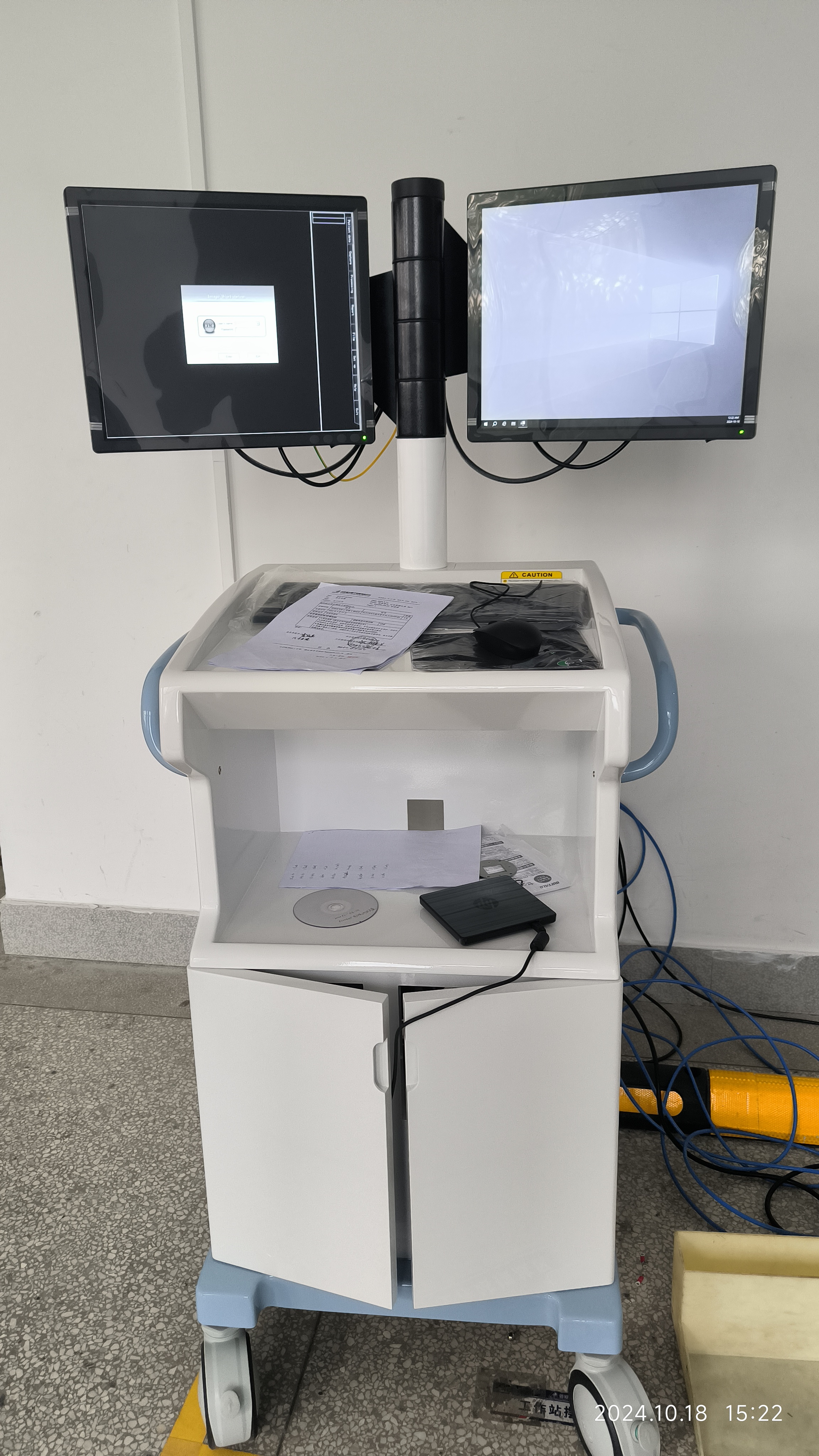

• Monitor: 3 sets of 19” 1M medical LCD monochrome displays
• Image Processing: Proprietary "Vinci" system with RCDPS (rapid calculate display platform) — GPU-based dynamic real-time processing technology + automatic brightness tracking; supports W/L adjustment, noise reduction, enhancement, measurement, marking, DICOM image sending/printing and movie playback.

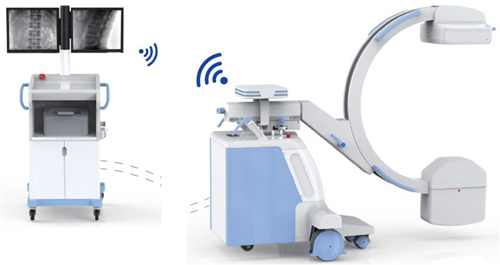

• Wireless Advantage: Full-digital WIFI & wireless transferring system, high-flux real-time data transmission; wireless connection between C-arm and workstation, no cable constraints.

3. Mechanical Structure & C-arm Movement

• Wheels: Direction wheel (360° rotatable), main wheel (±90° rotatable)
• C-arm Movement: Motorized up/down 400mm; forward/backward 200mm; horizontal axis revolution ±180°; vertical axis revolution ±15°; focus to screen distance 1000mm; open distance 800mm; arc depth 660mm; orbital slipping 135°
• Structural Design: Small and flexible rack, light thrust, small turning radius, strong climbing ability; unique balance design with safety lock at any position for free operation.

Core Product Advantages

1. Wireless & Flexible Workflow

• WIFI-Free Workstation: Wireless connection between C-arm and workstation eliminates cable troubles, repair issues and movement restrictions; one single doctor can complete equipment movement and operation, reducing operator quantity and workload.
• Stable Wireless Transmission: Real-time imaging acquisition with super stability, high-definition image output without information loss; remote transmission with stable signals, supporting seamless connection with cloud PACS system.

2. Low-Dose & Ultra-Definition Imaging

• Intelligent Frequency Conversion Pulse Fluoroscopy: Self-designed high-frequency HV generator reduces radiation dose by 50%-80% while improving image quality, providing safety guarantees for clinical work.
• Intelligent Low-Dose Mode: Adopts part-specific image processing methods, dose and frequency adjustment, ensuring excellent imaging quality with lower surgical space radiation.
• Superior FPD Performance: 16bit grayscale (vs 12bit of image intensifier), 3.2LP/mm limit resolution (vs 1.8LP/mm of image intensifier), nearly 2 million pixels; full-digital imaging chain avoids edge distortion, delivering edge-to-edge clear images.

3. Humanized & Efficient Operation

• Two-Way Red Light Cross Positioning: 2 sets of positioners (equipped on tube and FPD) help doctors locate efficiently during surgery, improving work efficiency.

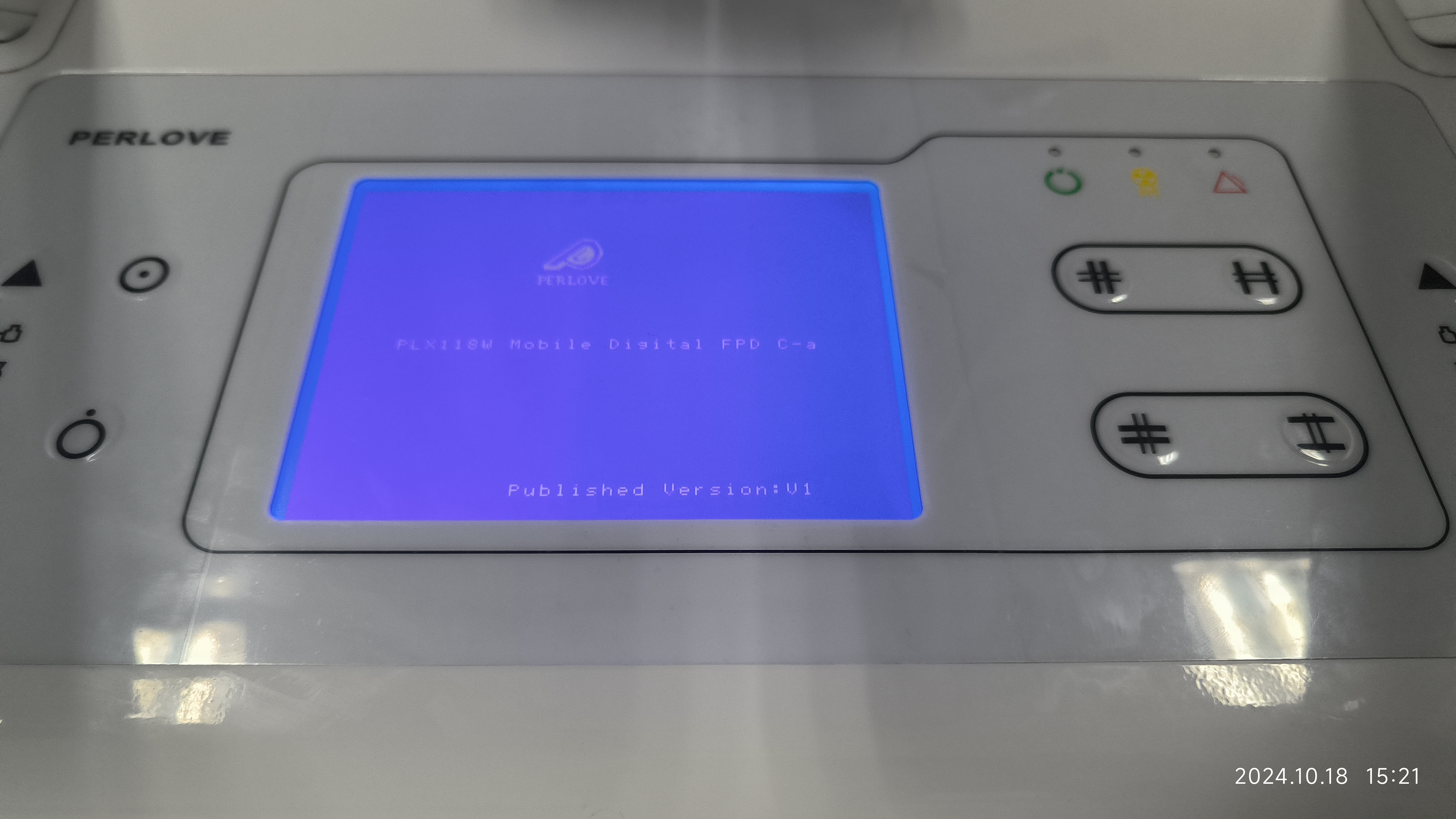

• Handheld Controller: Parameter adjustment can be done away from the host, flexible and convenient; color motion control handle logo provides silent indication (early warning, exposure, failure) for 360° no-dead-angle observation of equipment working status.
• Compartment Exposure: Wireless workstation enables separate-room exposure, effectively reducing radiation exposure for medical staff.
• Easy Maneuverability: Bass movement with smooth motion; small rack size and light thrust allow female medical staff to operate easily, supporting free movement inside and outside the operating room.

4. Strong System Compatibility & Maintenance

• DICOM3.0 Standard Interface: Seamless connection with cloud PACS system for information sharing and remote diagnosis; compatible with hospital digital information management.
• Self-Diagnosis & Remote Maintenance: Equipped with error-code displaying function and remote maintenance support, facilitating quick fault location and repair, reducing maintenance troubles.

Core Clinical Applications

Suitable for Emergency Department, General Surgery, Spine Surgery, Orthopedics, Urology, Gynecology, Trauma, Pain Management, Plastic Surgery and Operating Room; applicable for fluoroscopy-guided interventional surgery, implant surgery, fixation surgery, minimally invasive pain management and emergency traumatic surgery, meeting the high-precision imaging needs of various clinical specialties.
