Description

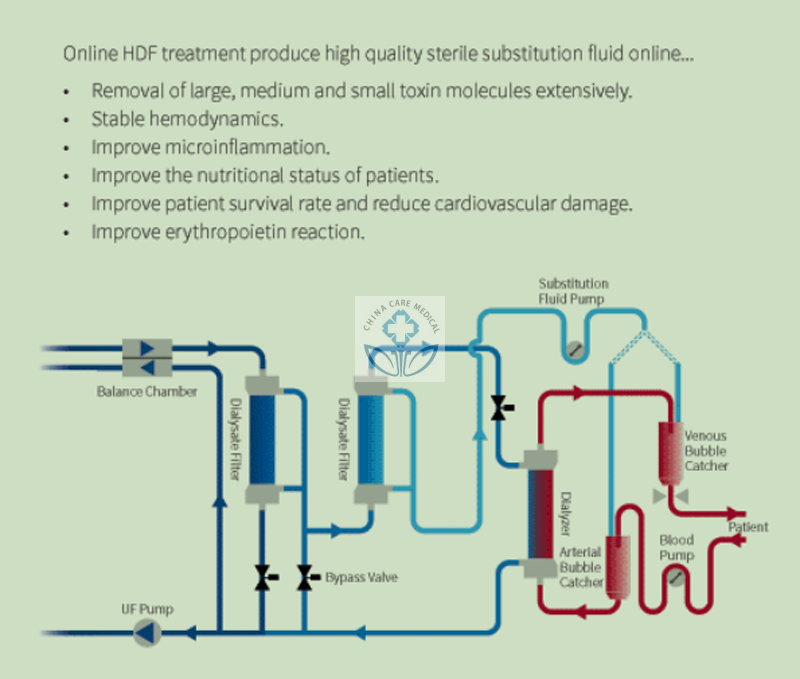

1. 🔹 Online HDF (Hemodiafiltration) Benefits

The machine performs online HDF treatment, which generates high-quality sterile substitution fluid directly. Key advantages:

• Extensive removal of large, medium, and small toxin molecules
• More stable hemodynamics
• Improves microinflammation in patients
• Improves nutritional status
• Reduces cardiovascular damage and improves survival rates
• Improves erythropoietin response

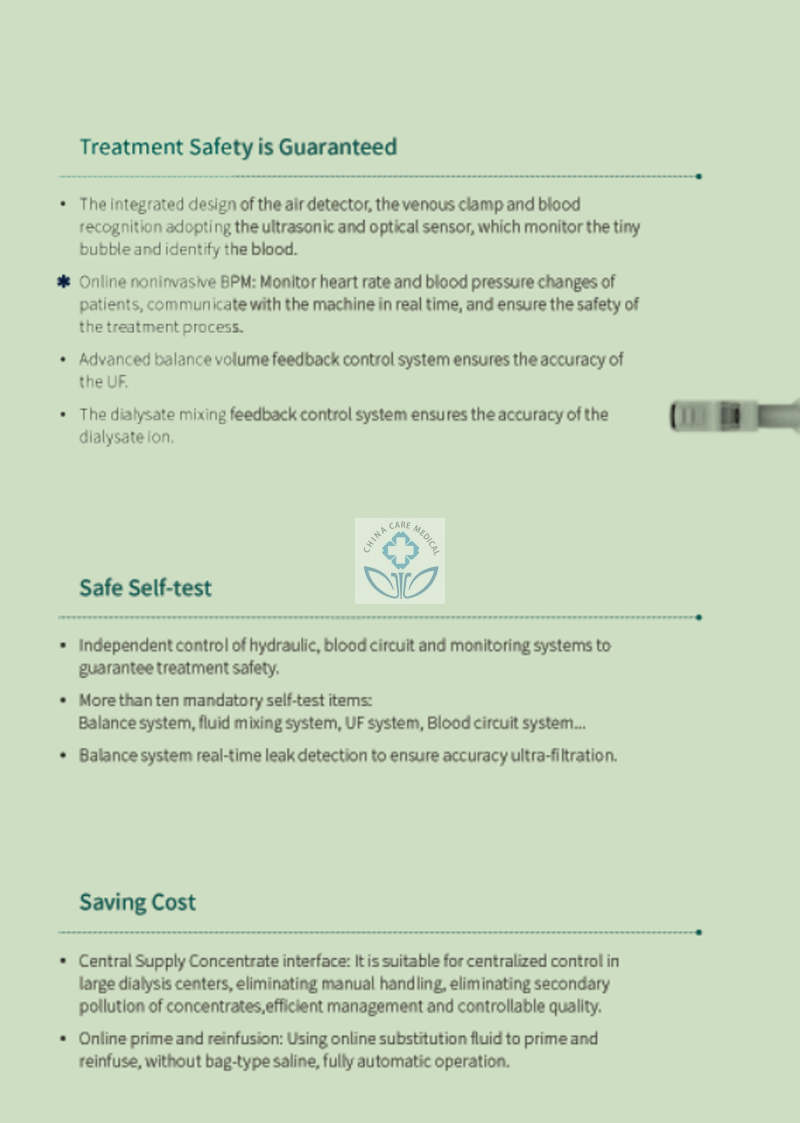

2. 🔹 Treatment Safety Features

• Air detection & venous clamp system: Uses ultrasonic and optical sensors to monitor tiny bubbles and detect blood in the line
• Online non-invasive BPM: Monitors heart rate and blood pressure in real time, communicating with the machine for enhanced safety
• Advanced balance volume feedback control: Ensures accurate ultrafiltration (UF)
• Dialysate mixing feedback control: Guarantees the accuracy of dialysate ion concentrations

3. 🔹 Self-Test & Reliability

• Independent control of the hydraulic system, blood circuit, and monitoring systems for safety
• Over 10 mandatory self-test items at startup (balance system, fluid mixing system, UF system, blood circuit system, etc.)
• The balance system performs real-time leak detection to ensure ultrafiltration accuracy

4. 🔹 Cost-Saving Design

• Central supply concentrate interface: Suitable for centralized control in large dialysis centers, eliminating manual handling and secondary pollution of concentrates
• Online prime and reinfusion: Uses online substitution fluid for priming and reinfusion, eliminating the need for bag-type saline and enabling fully automatic operation

5. 🔹 User-Friendly & Maintenance Design

• Guided operation interface: Supports self-test, parameter setting, treatment, cleaning, and disinfection
• Multi-level authority management: Different permissions for doctors, nurses, and engineers to prevent misuse
• Rotating screen: Provides a wide viewing angle and easy access to the machine
• Easy maintenance:

6. 🔹 Multi-Treatment Profiles & Functions

The machine supports customizable therapy with multiple adjustable profiles:

• Sodium profile, UF rate profile, bicarbonate profile
• Heparin flow profile, dialysate temperature profile

Optional monitoring functions:

• BVM (Blood Volume Monitoring): Accurately detects blood volume changes during treatment to prevent hypotension
• OCM (Online Clearance Monitoring): Real-time monitoring of urea clearance efficiency to ensure treatment adequacy
• BTM (Blood Temperature Monitoring): Monitors arterial and venous blood temperature to stabilize body temperature and reduce complications
• Bicart Holder: Isolates B-concentration from microbial contamination to ensure dialysate purity

7. 🔹 Compatibility

• Works with all brands of dialysis consumables
• Supports a variety of dialysate formulas, including custom formulas, for different concentrates and disinfectants
• Multi-functional heparin pump: Automatically identifies syringe models (10 ml, 20 ml, 30 ml, 50 ml) and supports multiple heparin profiles
