Description

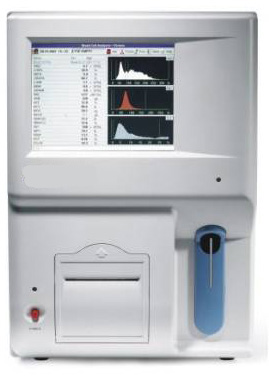

Hematology Cell Counter

Specifications

Reagent System

Reagent System for hematology cell counter,

Can be customized into open system, which can be suitable for international brand, Like Mindray, Backmen and others.

(hematology cell counter Control System)

Specifications for hematology cell counter

Test principle: electrical resistance for counting and SFT method for HGB

Test flow: fully auto and the blood don’t need dilute or other process

Clot clear: high voltage burn and high pressure flush

Parameter: 3 part differentiation of WBC,20 parameters + 3 histograms

Sample volume: 9.8μl peripheral blood or venous blood

Test channel: two channels

Throughput: 60 samples/hour

Language: English,French, Russsia and others

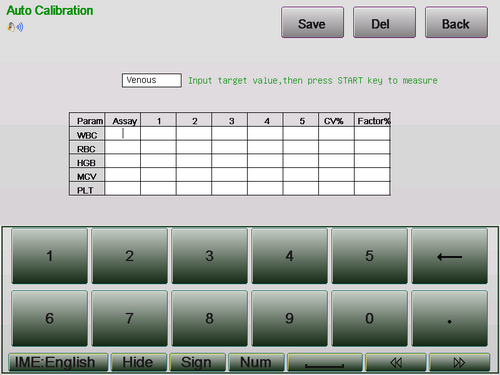

(hematology cell counter Control System Calibration)

Calibration mode: auto mode and manual mode are selectable, provide original calibrator and control

Reference range type: newborn,children,male,female and universal

Reagent: provide original reagent

Memory: save more than 30000 sample’s detail results including histograms

Display: Large colour LCD, show all parameters and histograms at same screen

Input and output: keyboard,mouse,Parallel Port,RS232 serial port, can be connected to computer

Printer: Inner thermal printer,can be connected to external computer and printer

Working Environment:

Temperature:18℃~35℃; Humidity:40%RH-80%RH

Voltage: AC 175 V～265V,Auto adapt according to the input voltage

Dimension: 300 mm×400 mm×440mm（L×W×H）

Net weight: 18Kg

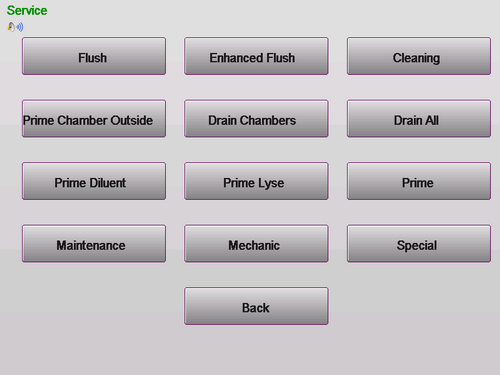

(Auto Hematology Analyzer Menu)

Performance for hematology cell counter

Technical parameter for hematology cell counter

Sample volume: normal mode: 9.8μl, dilution mode: 20μl

Aperture diameter: WBC: 100μ m, RBC,PLT: 70μ m

Throughput: 60 samples/hour

Clot clear: high voltage burn and high pressure flush

Calibration mode: auto mode and manual mode are selectable, provide original calibrator and control

Display: Large colour LCD, show all parameters and histograms at same screen

Memory: save more than 30000 sample’s detail results including histograms

Input and output: keyboard,mouse,Parallel Port,RS232 serial port, can be connected to computer

Printer: Inner thermal printer,can be connected to external computer and printer

Test parameter for hematology cell counter

WBC Lymph# Mid# Gran#

Lymph% Mid% Gran% RBC

HGB HCT

MCV MCH MCHC RDW-SD RDW-CV PLT MPV PDW PCT P-LCR

WBC Histogram RBC Histogram PLT Histogram

Standard Configuration for hematology cell counter

1. Main unit
2. Mouse
3. Keyboard
4. Printer-paper
5. Venous blood collecti
6. Vacuum Blood collect
7. Three-core power cor
8. Waste bottle
9. Earth wire
10. Diluent
11. Lyse solution
12. PB CLEANSER
13. Diluent cap compone
14. Lyse solution cap con
15. Rinse solution cap co
16. Waste barrels cap co
17. Touchscreen Pen
18. Service Manual
19. Operator Manual
20. QC passed
