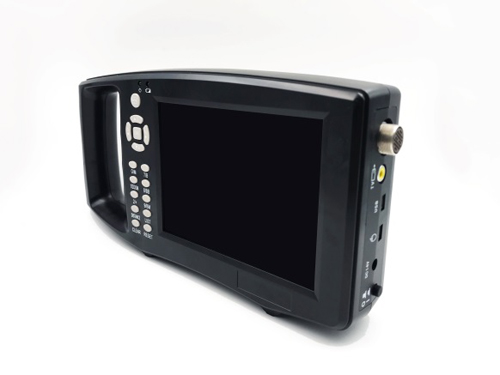

1    Description of equipment: mainly used in pigs, cattle, sheep, horses, pets and other animals.
2    Functional characteristics
2.1    High definition and multifunctional ultrasonic diagnostic apparatus for palm
2.2    The image is clear, easy to operate, and strong in endurance. It has great superiority in consultation in cities, townships and outdoor environments.
2.3    A variety of charging methods ensure more consultation in different environments.
2.4    Over 4 hours of overlong standby time
2.5    5.6 inch LED liquid crystal display
2.6    Powerful image preprocessing function
2.7    A stable and concise operating system
2.8    Intelligent menu, human-computer dialogue is easy and quick
2.9    The multiple rate shows that the diagnosis is more accurate.
2.10    Large volume movie playback, image automatic circulation demonstration
2.11    Abundant measurement functions: distance, circumference, area, volume, obstetric table, etc.
3    Performance introduction
3.1    Probe :   3.5MHz Convex probe,7.5MHz Linear probe, 6.5MHz Rectal probe, 3.5MHz Back fat probe,5.0MHz Micro convex probe
3.2    Displayed Depth (mm):70—240
3.3    Probe    7.5MHz Linear Probe
6.5MHz Linear Rectal Probe    3.5MHz Convex Probe    5.0MHzMicro-convex Probe
3.4    Scanning depth(mm)           ≥80                     ≥140                     ≥90
3.5    Resolution(mm)    Lateral    ≤1( depth ≤60)    ≤3( depth ≤80)       ≤3( depth ≤60)
                                                                            ≤5(80＜ depth ≤130)
                                    Axial       ≤1( depth ≤80)    ≤1( depth ≤80)       ≤1( depth ≤60)
3.6    Monitor size(inch):5.6 TFT-LCD
3.7    Display modes :B, B+B, B+M, M,4B
3.8    Gray scaleS:256 levels
3.9    Image storage:64-frame
3.10    Cine-loop : ≥400 frames
3.11    Image conversion: up/down, left/right
3.12    Measuring functions : Distance, circumference, area, heart rate, gestation age
3.13    Battery capacity: 3200mAh
3.14    Mainframe power :13W at non-charging operation / 25W at charging operation
3.15    Adapter power consumption :45W
3.16    Character display :case history number, age
3.17    Faked color display: Gray, red, yellow, blue
3.18    Dimension: 250 mm×130 mm×42mm
3.19    N.W.:791g
4    Standard Configuration: Mainframe(containing a piece of Li-ion battery), 3.5MHz Convex probe, Manual/ technical instructions, Power adapter(containing power cord)
