Product info

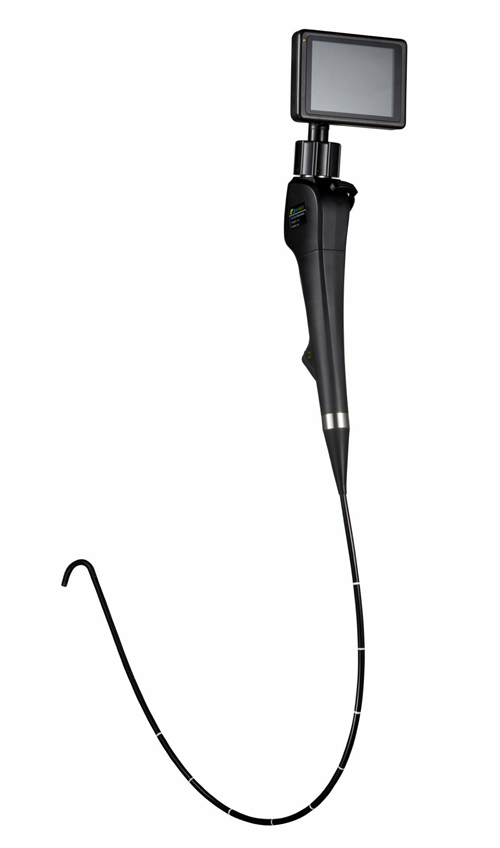

- Product name:Flexible Video Laryngoscope(outer diameter: 2.8mm, working channel 0 mm)
- Product code:CCENL3S
Packaging Specifications
- Outer Packaging Size:0.17 × 0.51 × 0.44 m
- Gross Weight:4 kg
- Net Weight:0 kg
- Volume:0.04
Description
Video Laryngoscope / Bronchoscope System (M58/M52/M39/M28 Series)
Core Overview
This is a portable, multi-model video endoscope system designed for difficult airway management and minimally invasive bronchial procedures. It features a built-in LED illumination system, anti-fog technology and a 3.5-inch display with lifelong free software upgrades. The system offers four working channel size options, making it suitable for a wide range of clinical applications from intubation to minimally invasive surgery.
Core Technical Specifications
Category | Parameter | M58 | M52 | M39 | M28 |
Scope Body | Illumination | LED | LED | LED | LED |
Joint Outer Diameter | 5.8mm | 5.2mm | 3.9mm | 2.8mm | |
Instrument Channel Inner Diameter | 2.6mm | 2.2mm | 1.2mm | 0mm | |
Working Length | 650mm | 650mm | 650mm | 650mm | |
Anti-Fog Function | Anti-fog when on, no need for pre-heating | ||||
Display & System | Screen Size | 3.5inch | |||
Storage | SD Card | ||||
Video Record | Support | ||||
White Balance | Support | ||||
Freeze/Backwards | Support | ||||
Video Synchronous Output | Support | ||||
Note | Applicability | M28/M39: Not for endoscopic diagnosis/treatment accessories; M28/M39/M52: Not suitable for high-frequency electrotherapy/laser hemostasis; Continuous working time > 2 hours (depends on ambient temp/battery) |
Core Product Advantages
1. Portable & Efficient
- Lightweight & Easy Operation: Designed to save time for EMS (Emergency Medical Services); convenient for transportation and storage, ideal for mobile medical teams and pre-hospital care.
2. Multifunctional & Versatile
- Difficult Airway Intubation: Core function for managing difficult airways.
- Minimally Invasive Procedures: Supports Biopsy, Pneumothorax treatment, Stent implantation, Tracheal foreign body removal.
- Bronchial Therapy: Enables local radiotherapy, chemotherapy, and medication injection through the working channel.
3. Cost-effective
- One Screen for Four Scopes: Maximizes equipment utilization with a single display unit supporting multiple scope sizes.
- Customizable Channels: Four working channel sizes (M58/M52/M39/M28) to meet diverse clinical budget and procedure needs.
4. Durable & High-quality Imaging
- CMOS Image Sensor: Equipped with a new-generation photo-processing CMOS technology for higher image quality compared to traditional scopes.
- Integrated LED System: Provides stable, high-brightness illumination for clear visualization of airways and tissues.
5. Intelligent & User-friendly
- Anti-fog Technology: Eliminates the need for pre-heating, ensuring stable image quality during prolonged procedures.
- Lifelong Free Upgrades: Supports free software system and software upgrades to maintain cutting-edge performance.
Core Clinical Applications
Ideal for departments requiring precise airway management and bronchial intervention:
- ICU (Intensive Care Unit): Airway management of critically ill patients.
- NICU (Neonatal Intensive Care Unit): Intubation for neonatal patients (M28/Neonatal size option).
- Respiration Department: Diagnosis and treatment of bronchial diseases.
- Anesthesia Department: Difficult airway intubation during surgery.
- Emergency Department: Rapid intubation and emergency airway rescue.
