Product info

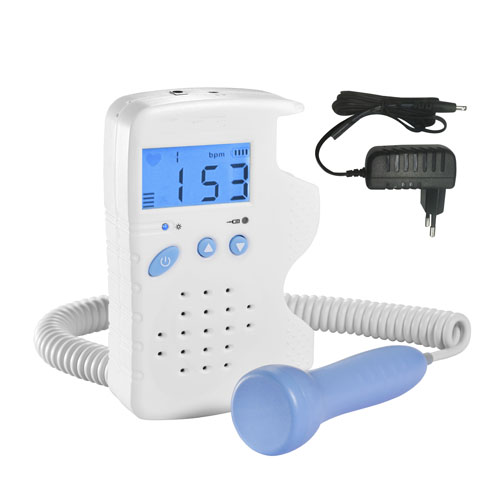

- Product name：Fetal Doppler
- Product code：CCF-2D
Packaging Specifications
- Outer Packaging Size：0.43 × 0.38 × 0.38 m
- Gross Weight：10 kg
- Net Weight：8 kg
- Volume：0.06
Description
Model：FD-200series
1. Usage
FD-200 series ultrasonic fetal doppler meets
the fetus daily check and routine examination
at home, clinic,community and hospital
2. Features
● Easy and convenient operation
● Built-in speaker , high-fidelity, crystal clear sound.
● High sensitivity doppler probe
● Inbuilt alarm system for low or high fetal heart rate.
● Low ultrasound dosage
● Display with backlight LCD and color LCD
3. Technical Specification
● Ultrasound frequency: 2MHz
● Ultrasound intensity: <10mW/cm2
● Power supply: Alkalinity battery and rechargeable battery
● Display: 45mm×25mm LCD
● FHR Measuring range: 50~230bpm
● FHR resolution: 1bpm
● FHR accuracy: ±2bpm
● Power consumption: <1W
● Dimension :134mm×94mm×35mm
● Gross weight:approximately 350g
4. Configuration
● Main body
● Alkalinity battery or rechargeable battery（with adapter）
● 2MHz probe
5. Option
● 3MHz probe
● Carry bag
6. FD-200 Series Difference Table
| Functions | FD-200B | FD-200D | FD-200C | FD-200G |
| Doppler type | Continuous | Continuous | Continuous | Continuous |
| Display type | B/W | B/W | Colour | Colour |
| Build-in speaker | Yes | Yes | Yes | Yes |
| Battery indicator | Yes | Yes | Yes | Yes |
| Display | Digit | Digit | Digit+ Curve | Digit+ Curve |
| Various work modes | Yes | Yes | Yes | Yes |
| Battery | Alkalinity | Rechargeable | Rechargeable | Alkalinity |
| Charge in device | No | Yes | Yes | No |
7. Certificate
● ISO Certificate
● CE Certificate
● FDA Certificate
8. Product Mode
● Neutral
● OEM
● ODM
● SKD
