CCM-209 Binocular Biological Microscope – 1000X Student & Laboratory Microscope

Product Introduction

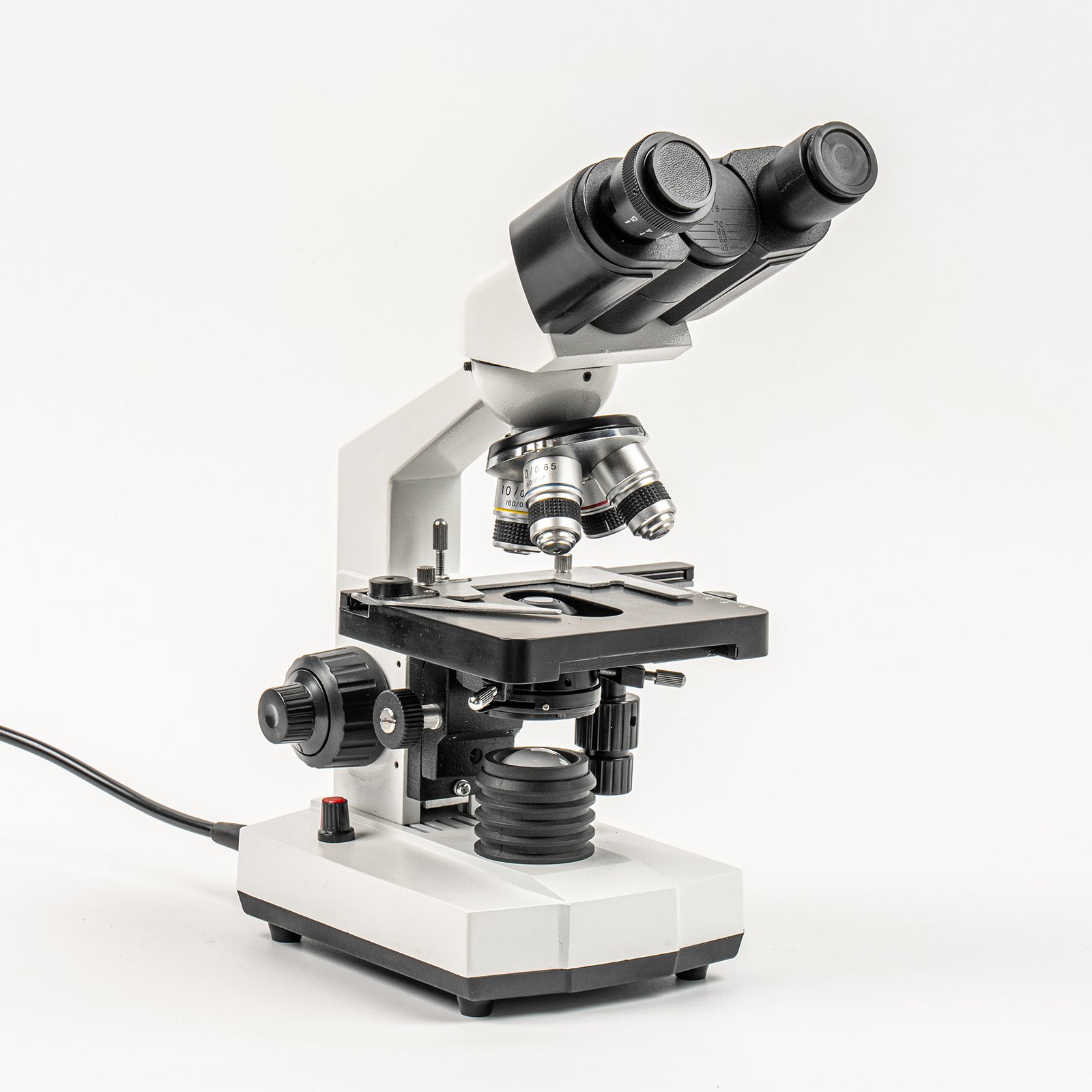

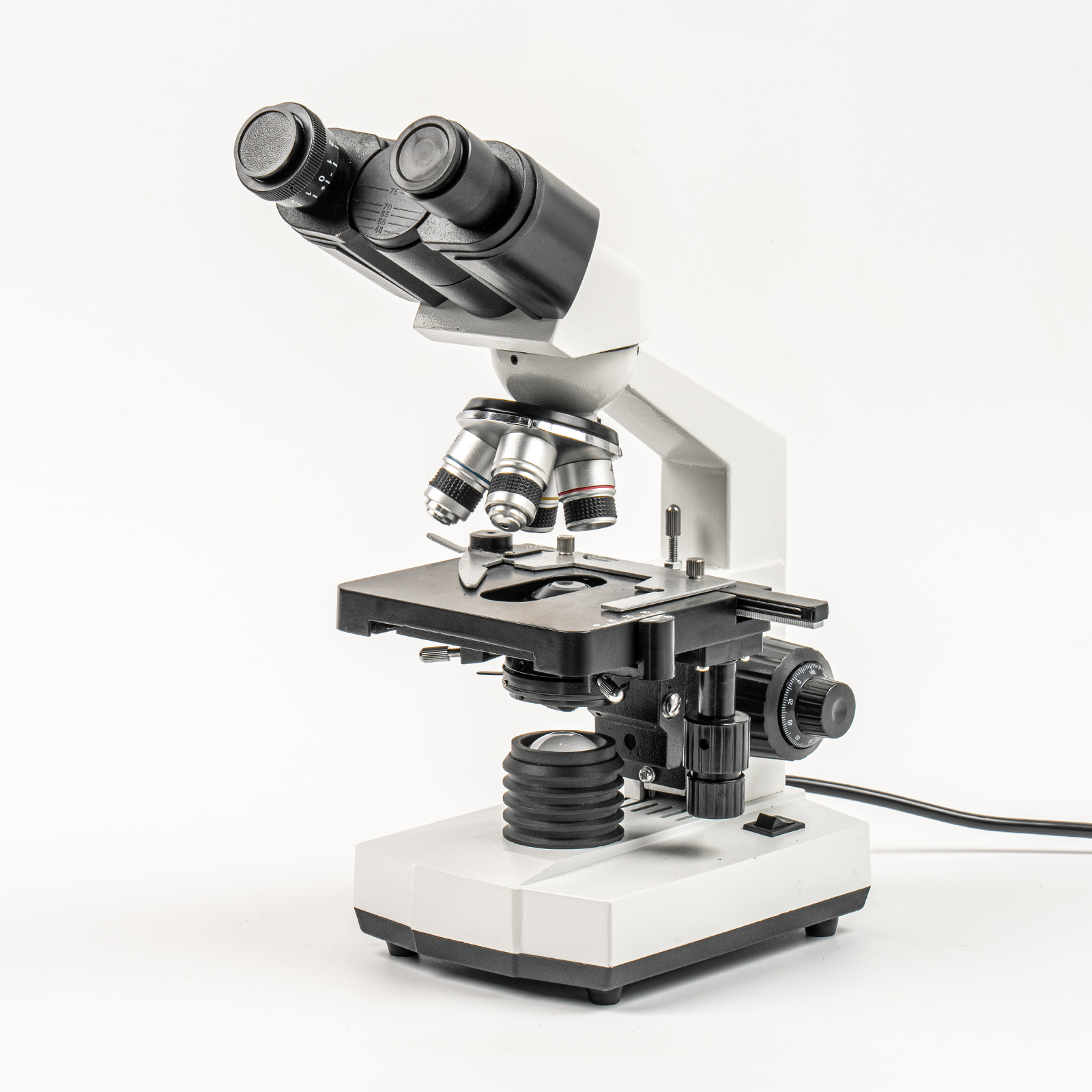

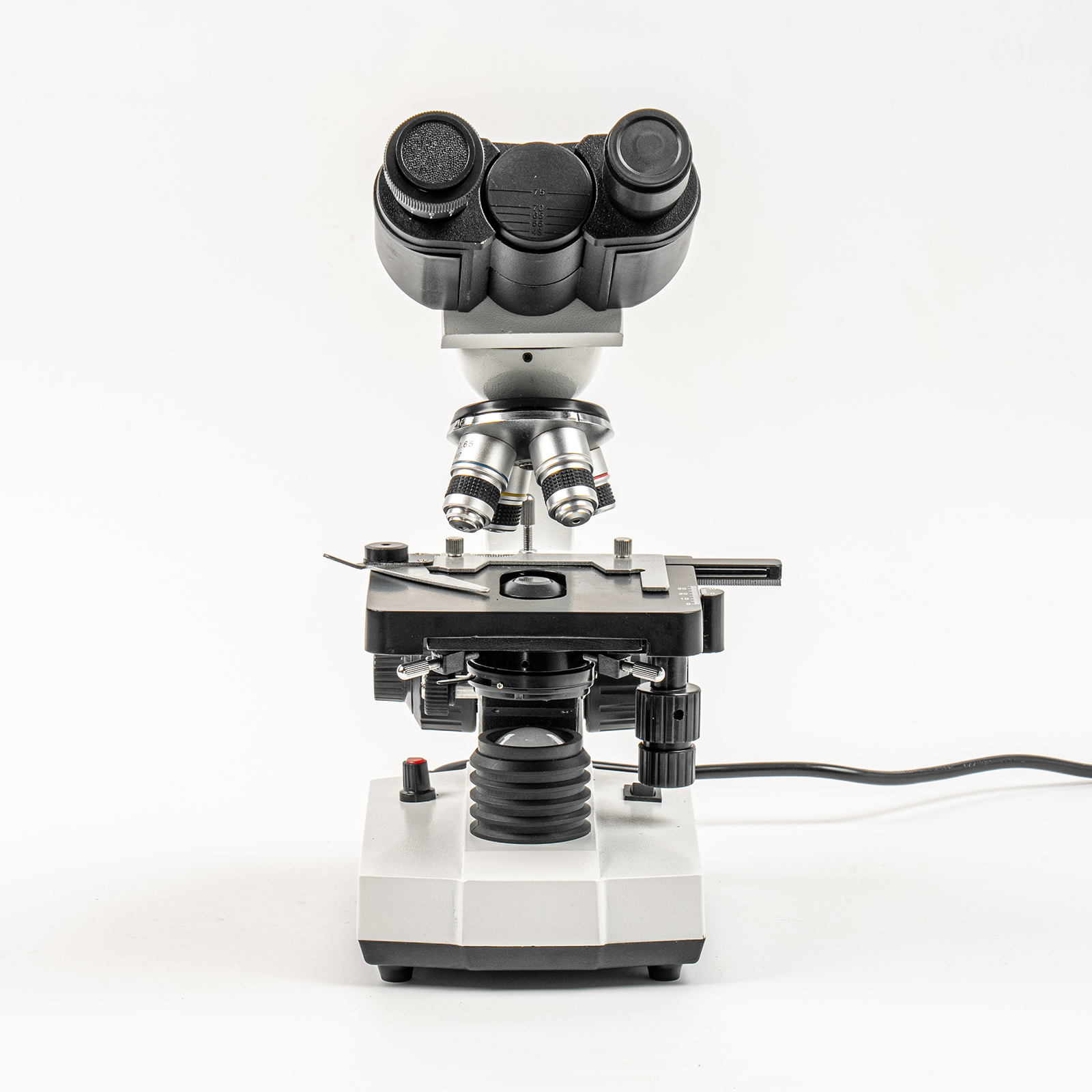

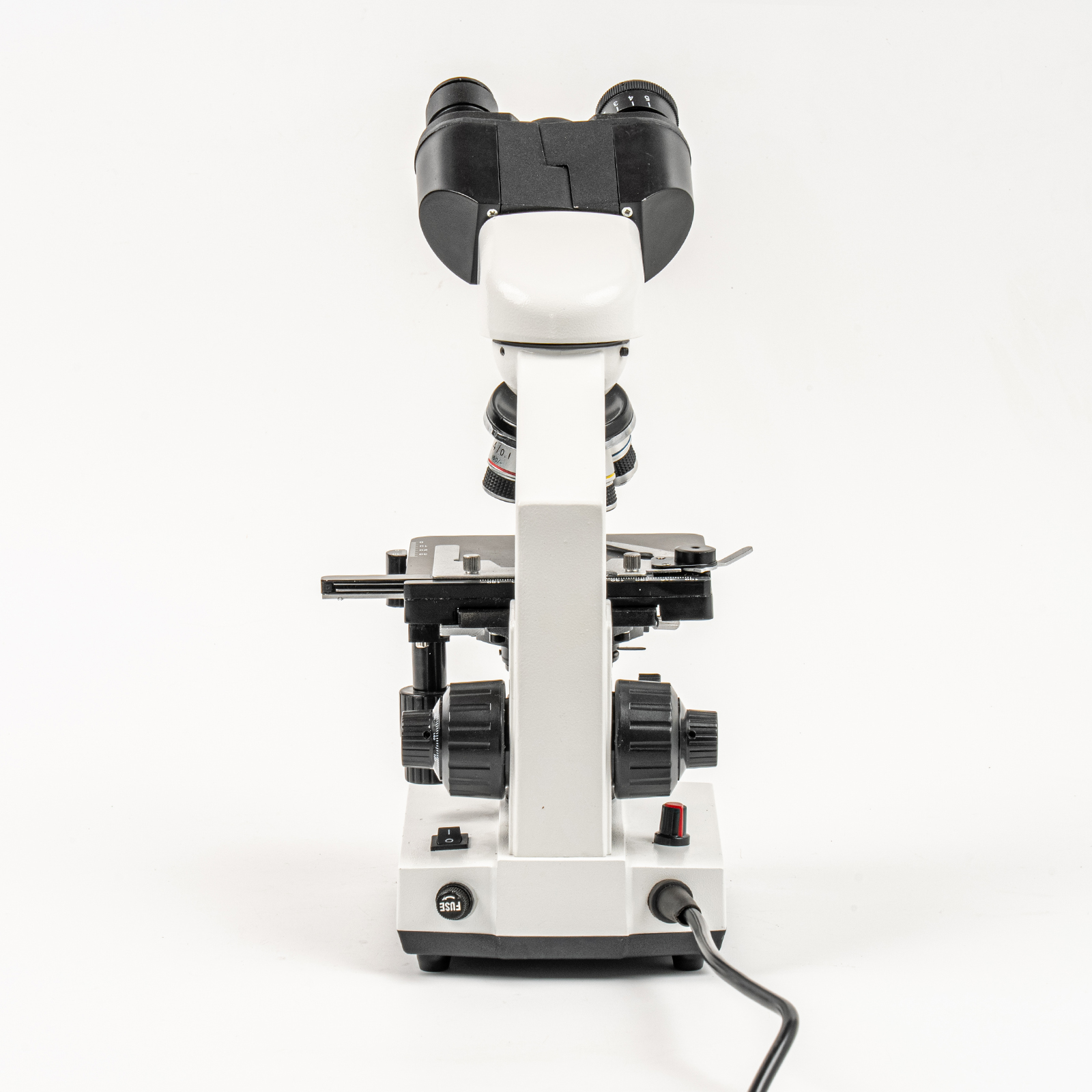

The CCM-209 binocular biological microscope is developed for educational teaching, laboratory training and routine biological specimen observation. Equipped with ergonomic binocular viewing head, premium DIN achromatic objective lenses and adjustable high-brightness LED light source, it outputs crisp, high-clarity images to meet the usage demands of students, teachers and lab technicians.

Supporting a maximum magnification of 1000X, the microscope perfectly fits observation of plant tissues, microorganisms, bacteria, blood smears and various biological slices. Featuring solid structural design and simple operation, it is an ideal equipment for primary and secondary schools, universities, medical training institutions and basic research labs.

Key Features

Comfortable Binocular Viewing System

• 30° inclined articulated binocular head
• 360° rotatable head for flexible observation angles
• Adjustable interpupillary distance: 55–75 mm
• Effectively relieve eye fatigue during long-time continuous observation

Premium Standard Optical Assembly

• Standard WF10X wide field eyepiece
• DIN standard achromatic objective lenses: 4X, 10X, 40X(Spring), 100X Spring Oil Immersion
• Optional total magnification grades: 40X, 100X, 400X, 1000X

Stable Double-Layer Mechanical Stage

• Double-layer mechanical platform, size 115 × 125 mm
• X-Y axis movable range: 60 mm (X) × 40 mm (Y)
• Smooth sliding for accurate specimen positioning and tracking

Precise Coaxial Focusing Mechanism

• Integrated coaxial coarse and fine focusing knobs
• Total focusing travel distance up to 14 mm
• Built-in rack stop to prevent lens collision and slide damage
• Wear-resistant rack-and-pinion focusing structure for long-term stable use

Adjustable LED Illumination System

• Built-in dimmable 1W LED light source
• ABBE condenser with N.A.1.25 matching iris diaphragm
• Precise light flux control for uniform, soft field illumination
• Low power consumption and long service lifespan

Technical Specifications

Optional Upgrade Accessories

• WF16X wide field eyepiece
• Semi-plan objective lens set
• High-resolution plan objective lenses
• Built-in rechargeable battery power module
• Digital microscope camera for image capture and teaching demonstration

Typical Application Scenarios

• Middle school & university biology teaching
• School and university teaching laboratories
• Medical and nursing professional training
• Clinical routine lab specimen observation
• Botanical plant tissue slice analysis
• Microorganism and bacterial slide research
• Basic scientific research experiments
• Industrial quality inspection laboratories

Product Advantages

• Humanized binocular viewing design, comfortable for long-hour observation
• High-contrast optical system delivers sharp, distortion-free microscopic images
• Smooth mechanical stage enables precise specimen displacement control
• All-metal sturdy frame with excellent durability for long-term heavy use
• Dimmable uniform LED lighting with low maintenance cost
• Simple operation, friendly for student beginners and lab operators
• Compatible with digital imaging cameras for recording and teaching display
• Full OEM, ODM and private label customization support
