Product info
- Product name:Wide-field flat-field eyepiece: 10x wide-field eyepiece
- Product code:CCM-208
Packaging Specifications
- Outer Packaging Size:0.44 × 0.37 × 0.47 m
- Gross Weight:10.8 kg
- Net Weight:4 kg
- Volume:0.08
Description

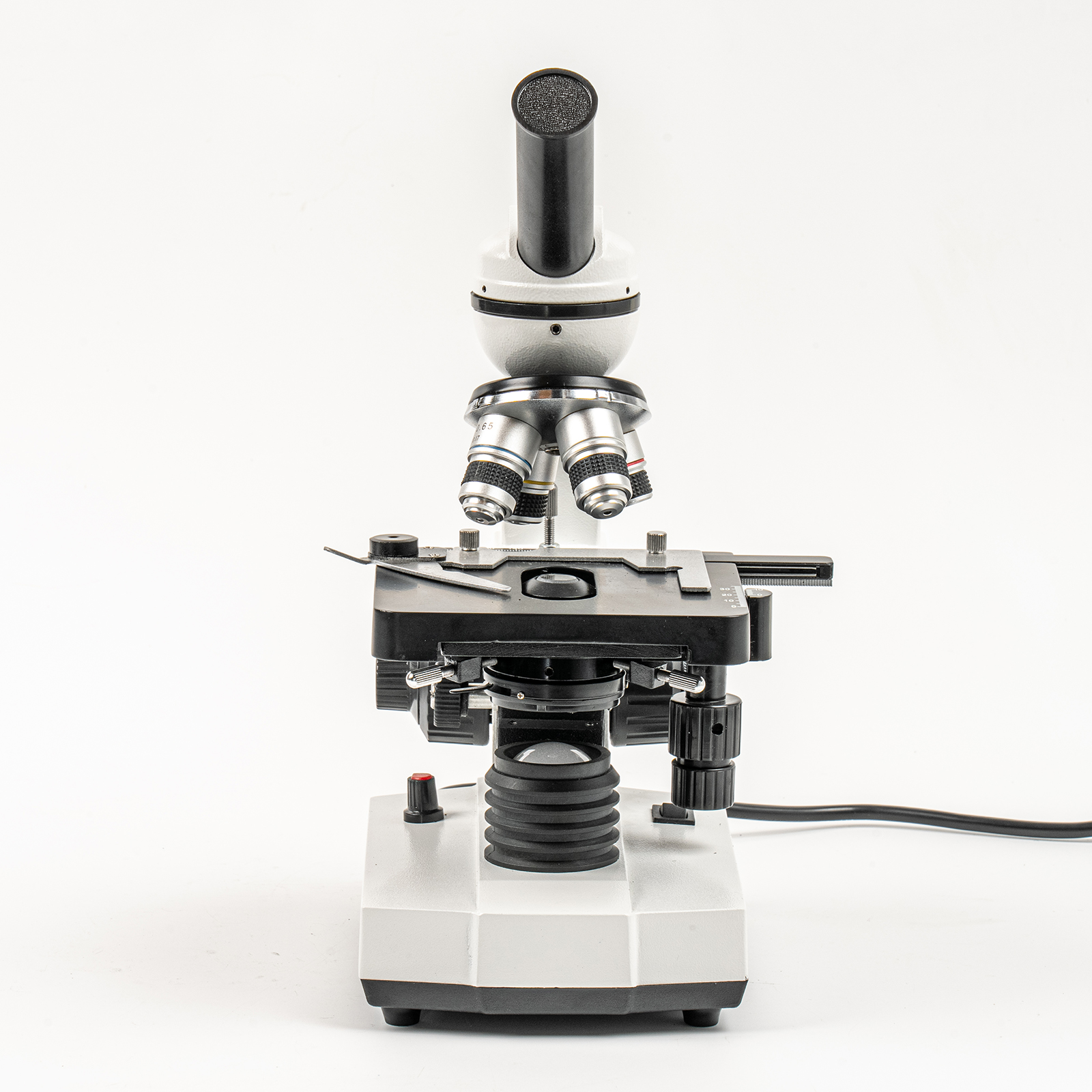

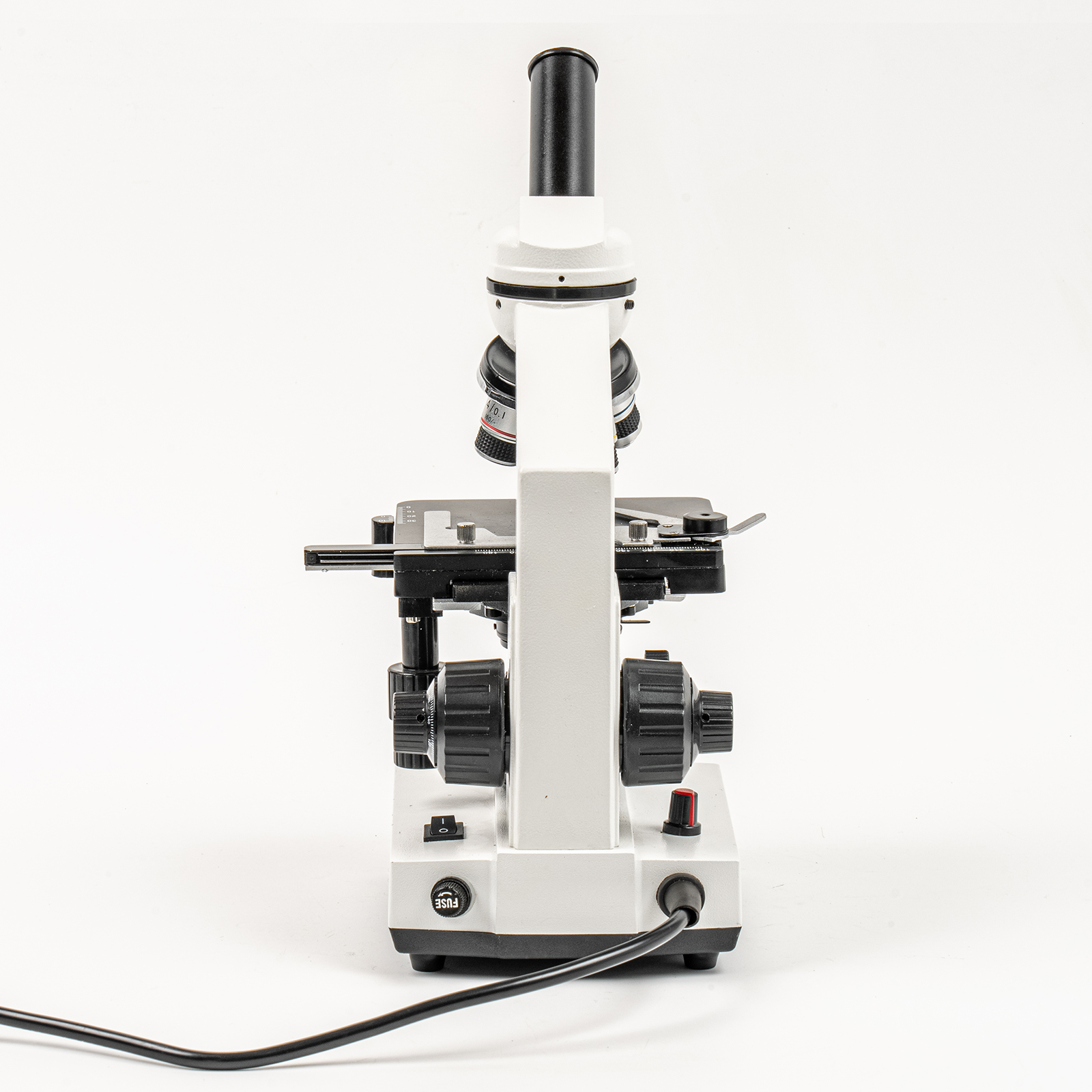

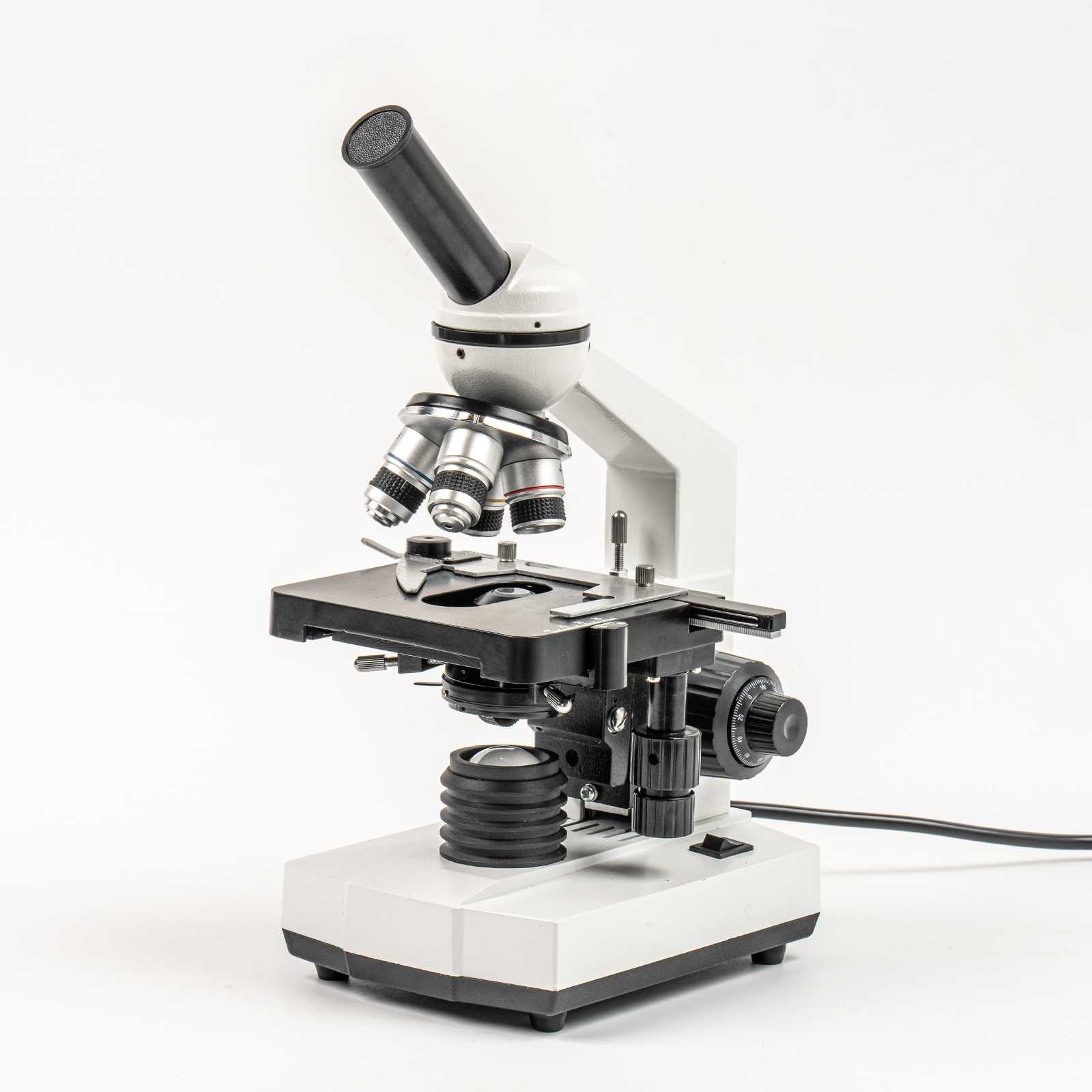

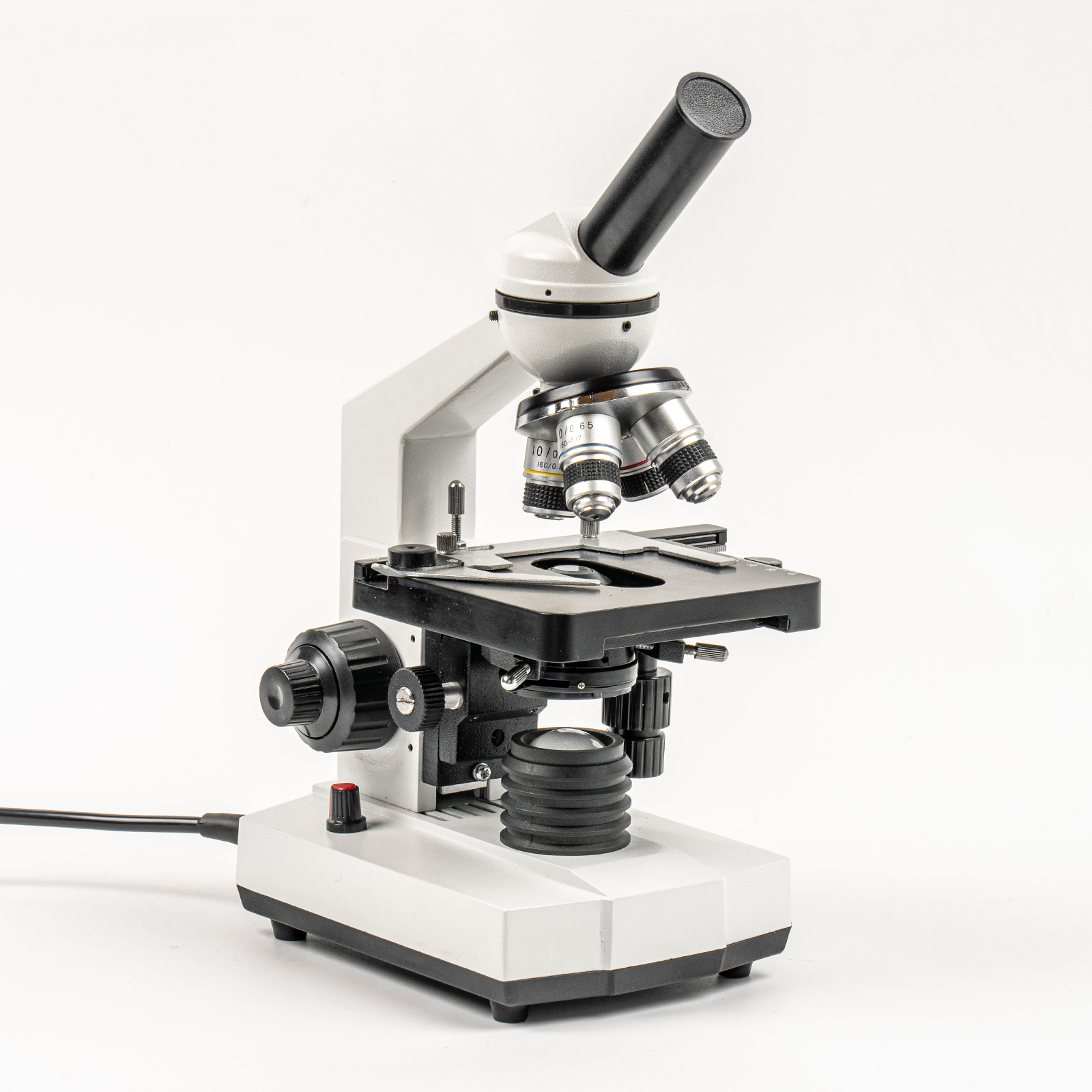

Student Biological Microscope – 1000X Monocular LED Microscope
Product Introduction
This monocular student biological microscope is customized for primary and secondary schools, universities, teaching labs and individual learning use. It delivers a maximum magnification of 1000X, enabling clear, high-precision observation of plant cells, microorganisms, blood smears, bacteria and various biological slices. Featuring compact size and robust durable frame, it fits daily classroom teaching and regular laboratory experimental operations perfectly.
Key Features
Max 1000X Adjustable Magnification
- Standard WF10X wide field eyepiece
- DIN standard achromatic objective lenses: 4X, 10X, 40X(S), 100X(S, Oil immersion)
- Optional WF16X eyepiece to achieve higher total magnification
Comfortable Humanized Viewing Design
- 30° inclined monocular head to relieve neck strain during long observation
- 360° fully rotatable head for flexible multi-angle viewing
- Adjustable interpupillary distance ranging from 55 mm to 75 mm
Precise Double-Layer Mechanical Stage
- Stage size: 115 × 125 mm double-layer mechanical platform
- X-Y axis movable range: 60 mm (horizontal) × 40 mm (vertical)
- Smooth slide positioning for accurate specimen tracking
High-Quality Standard Optical System
- DIN achromatic objectives output sharp, high-contrast microscopic images
- ABBE condenser (N.A. 1.25) equipped with iris diaphragm to optimize light intake and imaging quality
- Compatible with Φ32 mm standard optical filters
Coaxial Dual Focusing Mechanism
- Integrated coaxial coarse and fine focusing knobs
- Total focusing travel distance up to 14 mm for fine image calibration
Adjustable Long-Life LED Light Source
- Built-in 1W dimmable LED lamp for uniform field illumination
- Low power consumption, long service lifespan and minimal maintenance
Technical Specifications
| Item | Specification |
|---|---|
| Standard Eyepiece | WF10X Wide Field; optional WF16X |
| Objective Lenses | DIN achromatic: 4X, 10X, 40X(S), 100X(S, Oil) |
| Maximum Total Magnification | 1000X |
| Viewing Head | 30° inclined, 360° rotatable monocular head |
| Interpupillary Distance | 55–75 mm adjustable |
| Stage | Double-layer mechanical stage, 115 × 125 mm |
| Stage Travel Range | X axis: 60 mm; Y axis: 40 mm |
| Condenser | ABBE N.A.1.25 with iris diaphragm |
| Focusing System | Coaxial coarse & fine adjustment, 14 mm travel |
| Illumination | Built-in adjustable 1W LED light |
| Net Weight | 4 kg |
Optional Upgrade Configurations
- WF16X wide field eyepiece
- Semi-plan objective lens set
- Plan high-resolution objective lenses
- Built-in rechargeable battery power module
Typical Application Scenarios
- Middle school & university biology teaching
- Educational teaching laboratories
- Medical and nursing major training
- Botanical plant specimen observation
- Microorganism and bacterial slide analysis
- Clinical lab demonstration teaching
- Basic scientific research & routine lab testing
Core Product Advantages
- Premium optical assembly for sharp, distortion-free imaging
- All-metal sturdy frame for long-term classroom heavy use
- Simple intuitive operation, friendly for student beginners
- Stable mechanical stage for precise specimen movement control
- Low-maintenance dimmable LED lighting system
- Full OEM & ODM customization support
- Accept private label, logo and packaging customization
