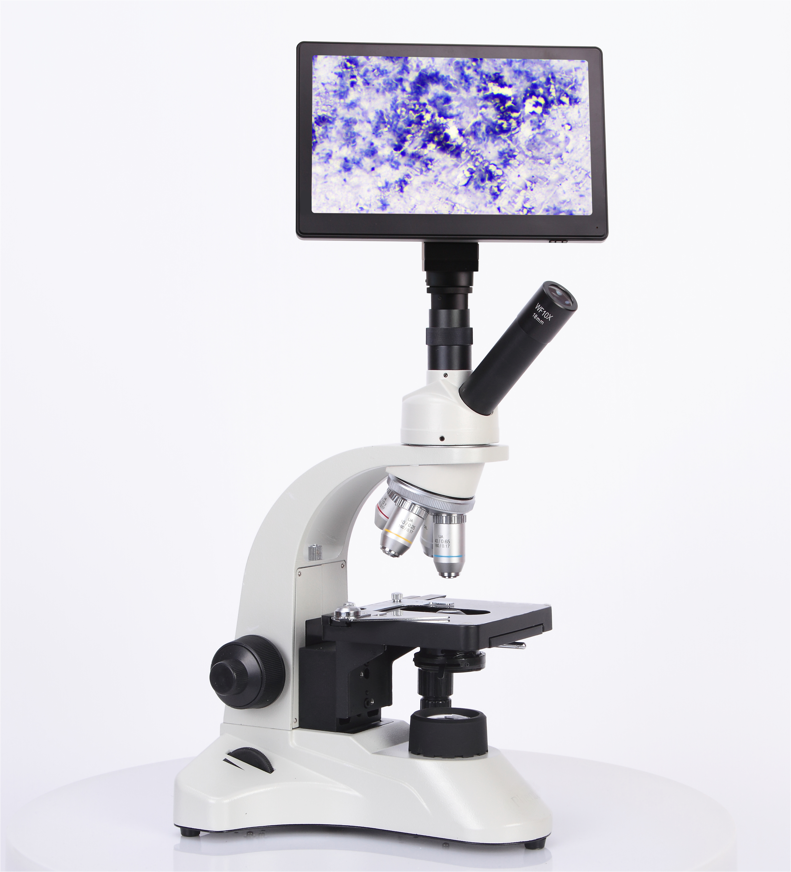

CPH50‑PB8 (PH50‑PB9) Trinocular Microscope Summary

Manufacturer: China Care Medical Equipment Co.,Ltd
Address: Room B101, ZhongBang Business Building, No.87 PuXing Road, Tianhe, Guangzhou, China
Website: www.chinacaremedical.com

Main Microscope Technical Parameters

• Optical magnification: 40X‑1600X
• Viewing head: Compensation trinocular head, 30° inclined, 360° rotatable; interpupillary distance: 48‑75 mm
• Eyepieces: Wide‑field WF10X/18 mm, WF16X/15 mm
• Objectives: 195N achromatic objectives: 4X, 10X, spring‑loaded 40X, spring‑loaded 100X oil‑immersion
• Nosepiece: 4‑hole revolving nosepiece with steel‑ball positioning
• Stage: Double‑layer mechanical stage; dimension 115 × 125 mm, travel range 76 × 52 mm
• Focusing: Coaxial coarse & fine focusing; coarse travel: 20 mm; fine resolution: 0.002 mm
• Condenser: Abbe condenser, NA=1.25 with iris diaphragm, manually height‑adjustable
• Light source: 3 W adjustable‑brightness LED
• Power supply: External switching power supply, AC 100‑240 V
• Accessory: 1× C‑mount adapter

9‑inch 2MP LCD Display Module Features

• Equipped with Sony image sensor for authentic colour reproduction.
• Supports TF‑card photo & video recording.
• Manual / auto adjustment for brightness, white balance, exposure and other image parameters.
• Digital image zoom‑in / zoom‑out function.
• 9‑inch LCD screen, max resolution 1024*600; screen dimension: 148.25 mm × 224.60 mm × 11.2 mm.
• Mouse‑operated control.
• Simultaneous HD on‑screen display and USB2.0 output to PC.

Camera Sensor Specifications

• Sensor size: 1/3‑inch
• Frame rate: 30fps @ 1920*1080
• Pixel size: 2.75 × 2.75 μm
• Signal‑to‑noise ratio: 65 DB
• Functions: Synchronous LCD & USB2.0 output, timestamp for captured images, 16 selectable crosshair overlays.

Note: Document title is CPH50‑PB8, parameter table shows model PH50‑PB9.
