Description

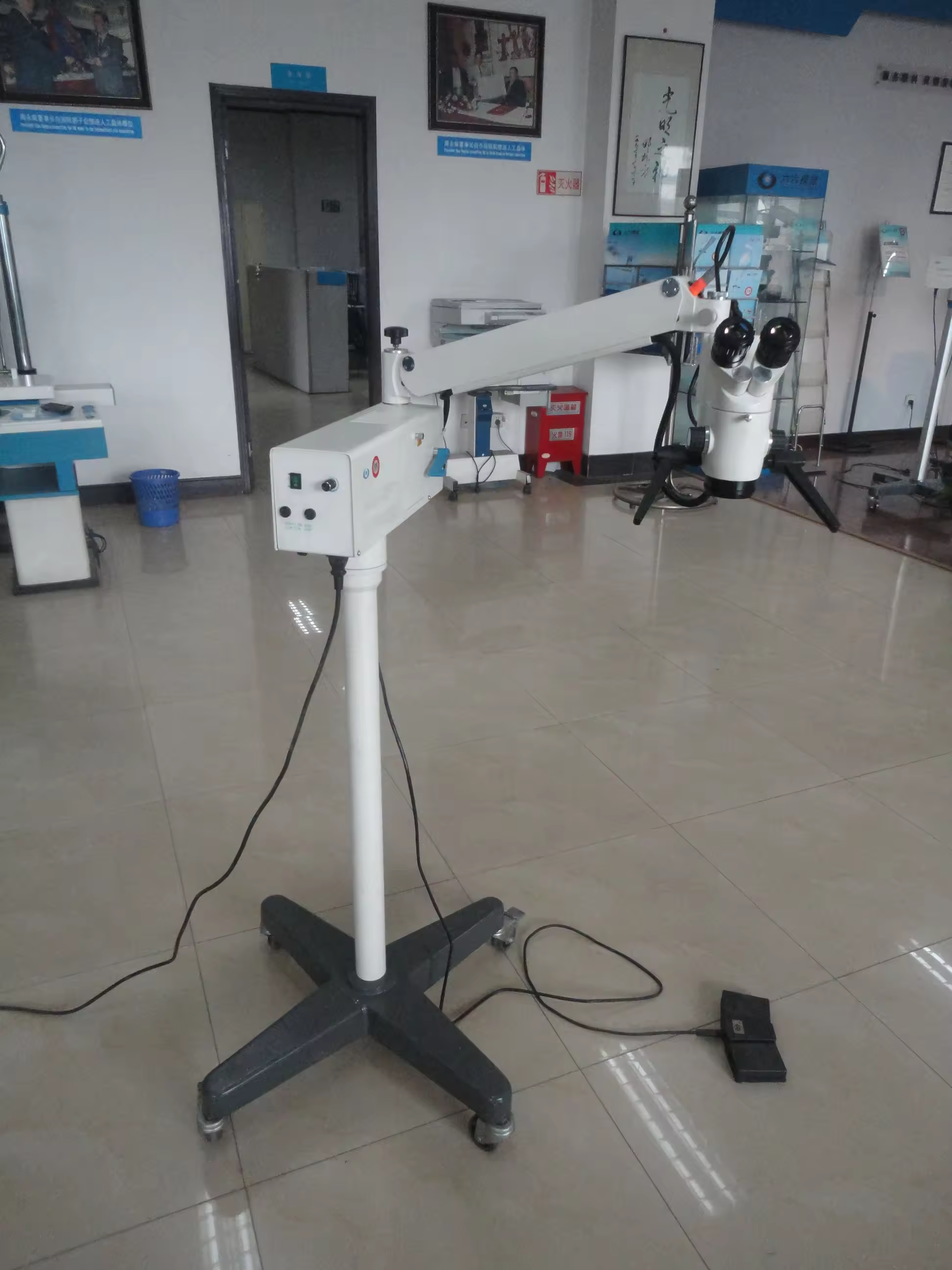

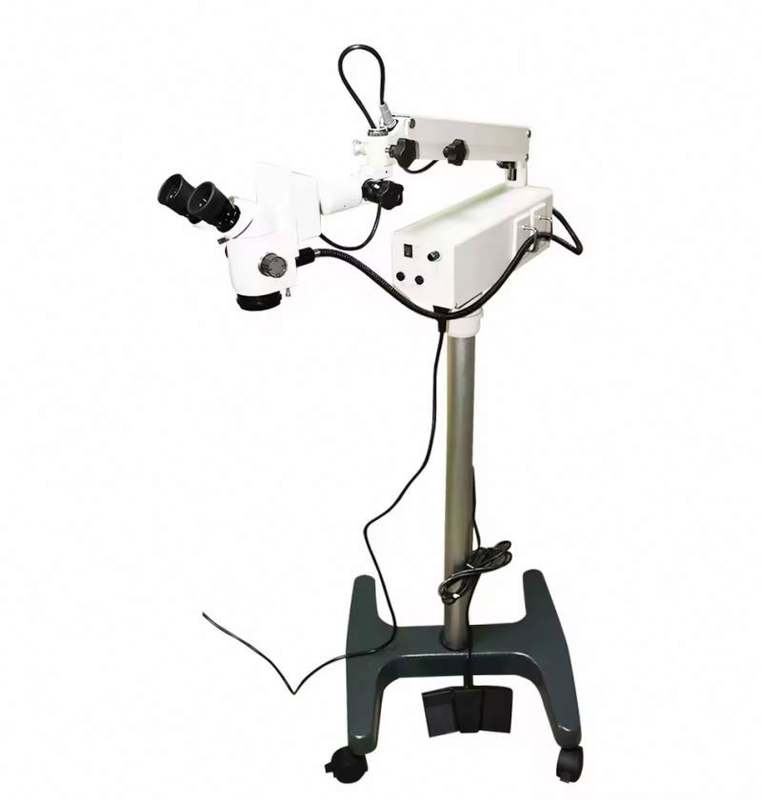

Operation Microscope

Product Overview

This operation microscope is developed for microsurgery, delivering sharp imaging and steady magnification to guarantee precise surgical manipulation. It owns excellent binocular fusion performance and is especially applicable for cataract and other micro surgical operations.

Equipped with apochromatic optical technology, the device eliminates chromatic aberration caused by different light wavelengths to greatly enhance image definition and offer surgeons a high-clear observation field.

The equipment features compact construction with a total weight of merely 41kg, lightweight enough to meet mobile medical scenarios.

Key Features

• High-definition binocular optical system for surgical observation
• Apochromatic optical design to optimize overall image quality
• Three-stage switchable magnification
• Adjustable depth of field and precise focusing system
• Lightweight compact body, fit for mobile medical use

Technical Specifications

• Vertical travel range: 700mm ~ 1100mm
• Max arm outreach radius: 870mm
• Power supply: AC110V/220V ±10%, 50Hz/60Hz
• Eyecup height: 18mm
• Field of view:

• Total magnification levels: 5.3×, 8×, 12×
• Diopter adjustment range: +5D ~ -5D
• Standard working distance: 190mm
• Optional objective lens: 200mm / 250mm / 400mm
• Fine focusing speed: ≤2mm/s
• Fine focusing stroke: ≥30mm
• Interpupillary distance adjustment: 55mm ~ 75mm
• Light center spacing: 26mm
• Configuration type: Single-user binocular microscope system
