Description

1. Ergonomic & Portable Hardware Design

• Lightweight body of only 6.3kg, equipped with detachable built-in battery and removable probe holder, ideal for ward bedside examination and mobile outreach screening.

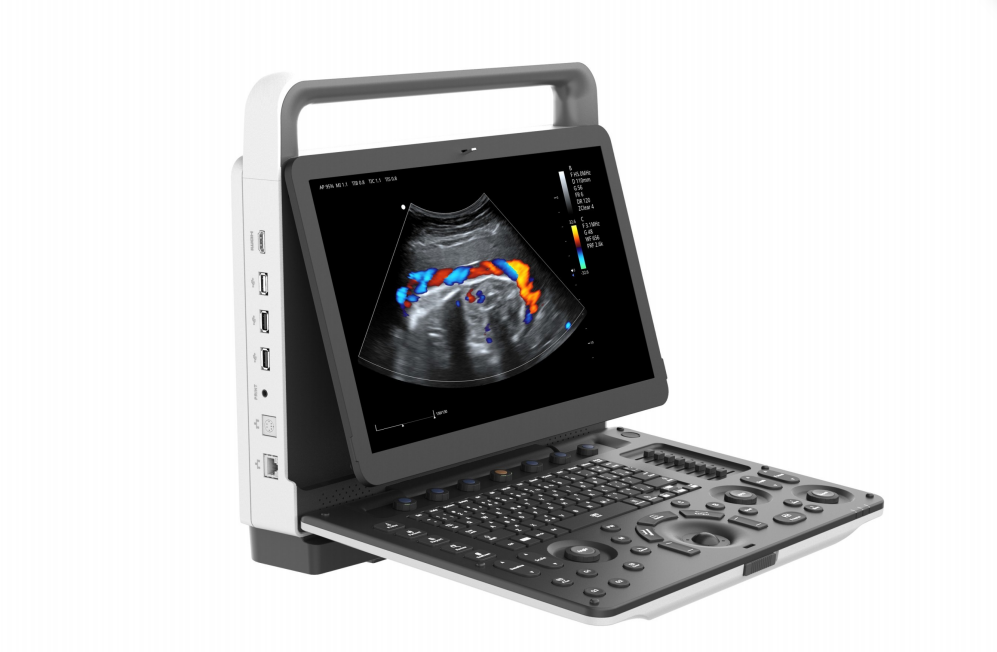

• Equipped with a 15.6-inch rotatable medical LCD monitor (75° rotation angle), HDMI port and multiple USB ports for external connection.
• Backlit keyboard with splash-resistant protective film, easy to clean and disinfect to meet clinical hygiene standards.
• A wide selection of interchangeable probes supports examinations across multiple departments, including abdomen, gynecology, thyroid, urology, vascular, cardiology, musculoskeletal and neurological intervention.

2. Brand-new uSeed Heterogeneous Computing Platform

Adopts a triple-core architecture of CPU + GPU + FPGA, bringing 50% higher heat dissipation efficiency and 30% faster computing speed, with enhanced system stability and data security. It applies uSeed metadata beamforming imaging technology; all scanned images are stored as metadata to support post-processing analysis.

3. Advanced Image Optimization Technologies

A full set of proprietary algorithms improves signal-to-noise ratio, contrast and tissue resolution for clearer diagnosis:

1. PIHI (Pulse Inverse Harmonic Imaging): Eliminates fundamental wave distortion and greatly raises signal-to-noise ratio.
2. ZClear Technology: Suppresses speckle noise, sharpens tissue boundaries and echoes.
3. FCI (Frequency Composite Imaging): Combines deep penetration of fundamental waves and high resolution of harmonic waves to boost detail and contrast for both near and far fields.
4. SCI (Spatial Compound Imaging): Reduces speckle artifacts, perfectly suited for detecting breast nodules, thyroid masses, pelvic effusions and other lesions.

Intelligent & Efficient Clinical Workflow

Automated One-key Operations

Custom programmable shortcut buttons, one-click image auto-optimization, visual QSave preset thumbnail clipboard for quick review of captured images and videos, greatly simplifying routine scanning operations.

AI-powered Automatic Measurement by Specialty

• Cardiology: AMM allows free placement of up to 3 sampling lines for multi-angle ventricular wall observation; Auto EF automatically identifies myocardial tissue and calculates ejection fraction to cut manual steps.
• Obstetrics & Gynecology: Auto OB recognizes standard obstetric planes and automatically measures fetal indicators (BPD, HC, AC, FL, etc.); Auto Follicle detects and calculates follicle sizes; ZLive adopts ray-casting and virtual lighting to generate ultra-realistic 3D fetal skin rendering.

Independent Remote Ultrasound System

Supports real-time cross-distance image sharing, enabling remote consultation, live teaching, remote scanning guidance and after-sales training.

5. Multi-mode Data Transmission

Compatible with Wi-Fi, Bluetooth, wired network and DICOM medical protocols for fast storage, archiving and sharing of clinical images and metadata, seamlessly matching hospital information workflows.

6. Built-in Auxiliary Functions

The customizable intelligent ultrasound assistant provides scan guidance for beginners, accelerating their learning and helping them identify key anatomical structures rapidly. USB ports enable convenient export of imaging data, making the system adaptable to outpatient, ward, mobile physical examination and various other clinical scenarios.
