Product info
- Product name:Gun-Type Dental X-ray Machine, Human & Veterinary Use
- Product code:CC24071609
Packaging Specifications
- Outer Packaging Size:0.34 × 0.34 × 0.15 m
- Gross Weight:4 kg
- Net Weight:2.54 kg
- Volume:0.02
Description

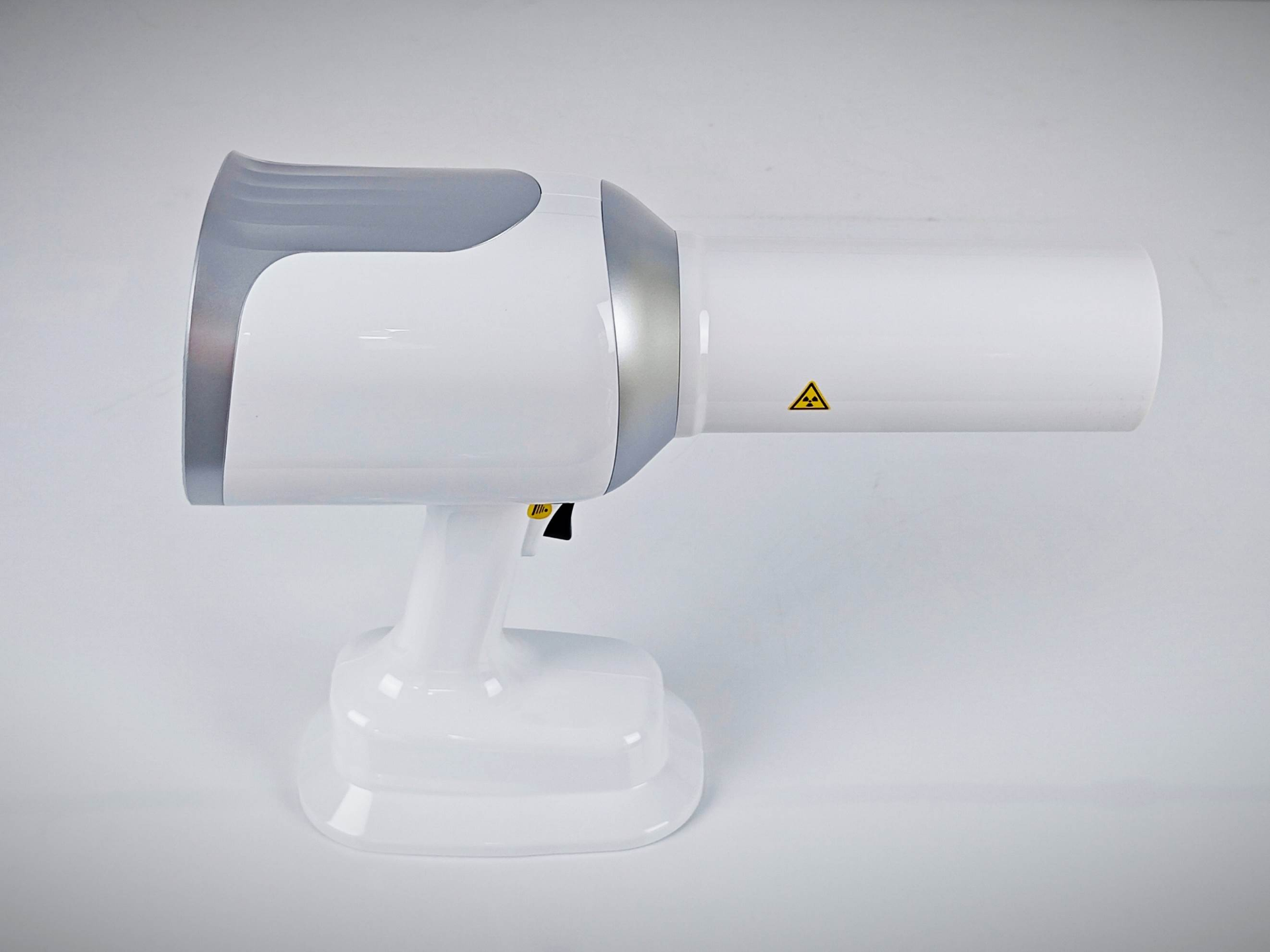

Gun‑type Dental X‑Ray Machine (Human‑use / Veterinary‑use)
The human‑use and veterinary‑use versions of gun‑type model adopt completely identical hardware. The differences lie only in built‑in exposure preset programs and clinical application targets. It supports dual‑mode system switching (Human / Veterinary), multi‑language options, optional long/short X‑ray tubes and remote‑controller operation.
Specification Comparison Table
| Item | Human Gun‑type Dental X‑Ray Machine | Veterinary Gun‑type Dental X‑Ray Machine |
|---|---|---|
| Full Product Name | Gun‑type Dental X‑Ray Machine | Veterinary Gun‑type Dental X‑Ray Machine |
| Model Type | Gun‑type | Gun‑type |
| Display Screen | 2.8‑inch LCD Touch screen | 2.8‑inch LCD Touch screen |
| Tube Voltage | 60.0/65.0/70.0KV 3‑level adjustable | 60.0/65.0/70.0KV 3‑level adjustable |
| Tube Current | 2.5mA, 3.5mA 2‑level adjustable | 2.5mA, 3.5mA 2‑level adjustable |
| Exposure Time | 0.01‑1.05s | 0.01‑1.05s |
| Tube Focal Spot | 0.4mm | 0.4mm |
| Skin‑to‑cone Distance | 200.0mm | 200.0mm |
| System Mode | Human / Veterinary switchable | Human / Veterinary switchable |
| Optional X‑ray Tube | Short tube, Long tube | Short tube, Long tube |
| Language Options | English, Chinese, Russian | English, Chinese, Russian |
| KV Ripple | ＜1.0% | ＜1.0% |
| Inversion Frequency | ＞100.0KHZ | ＞100.0KHZ |
| Radiation Dose | 2.447mGy | 2.447mGy |
| Surface Leakage Radiation Dose | 0.0007mSv | 0.0007mSv |
| Lithium Battery | DC22.2V / 950.0mAh | DC22.2V / 950.0mAh |
| Power Supply | AC100‑240V, 50/60HZ | AC100‑240V, 50/60HZ |
| Net Weight | 2.0KGS | 2.0KGS |
| Gross Weight | 4.0KGS | 4.0KGS |
| Carton Dimension | 41.034.518.7cm | 41.034.518.7cm |
| Applicable Subject | Human oral dental diagnosis and treatment | Dental diagnosis for cats, dogs and other pets |
| Imaging Sample | X‑ray images of human dental apices and periodontal tissues | X‑ray images of pet tooth roots and alveolar bones |
Common Core Features (Shared by human‑use and veterinary‑use versions)
Ultra‑high‑frequency X‑ray Generation Technology
Adopt industry‑leading ultra‑high‑frequency inverter technology with KV ripple below 1.0% for stable X‑ray output. Radiation dose reaches 2.447mGy and surface leakage radiation is only 0.0007mSv, delivering high‑level safety protection.
Remote‑controller Operation + 2.8‑inch Touch Screen
Parameters can be set via the on‑device touch screen or remotely by controller to reduce operator radiation exposure. Both tube voltage and tube current support manual custom adjustment.
Rich Configuration Options
Selectable short or long X‑ray tubes; built‑in 3‑language interface including English, Chinese and Russian. Two system modes (human / veterinary) are pre‑installed; different shooting targets can be adapted by simple software switching.
Dual‑power Supply for AC & Lithium Battery
Wide‑voltage design compatible with global mains power 100‑240V. Equipped with DC22.2V/950.0mAh lithium battery to support radiography without mains power connection, suitable for clinics and field outreach visits.
Version Distinction Description
Human‑use Gun‑type Dental X‑Ray Machine
Identical physical hardware with veterinary version. Switch the system to Human mode. Exposure parameters are optimized for tissue density of human teeth and alveolar bone. Applied for oral radiography diagnosis including root canal examination, periodontal disease, wisdom‑tooth assessment and tooth defect inspection.
Veterinary Gun‑type Dental X‑Ray Machine
No difference in hardware configuration. Switch to Veterinary mode with pre‑loaded exposure presets optimized for cats and dogs. Designed for pet dentistry, it provides radiographic diagnosis for root resorption, alveolar bone injury, dental calculus, and pre‑operative & post‑operative oral surgery evaluation.
Manufacturer Information
China Care Medical Equipment Co., Ltd.
Address: Room B101, Zhongbang Business Building, No. 87 Puxing Road, Tianhe, Guangzhou, China
Website: https://www.chinacaremedical.com
