Description

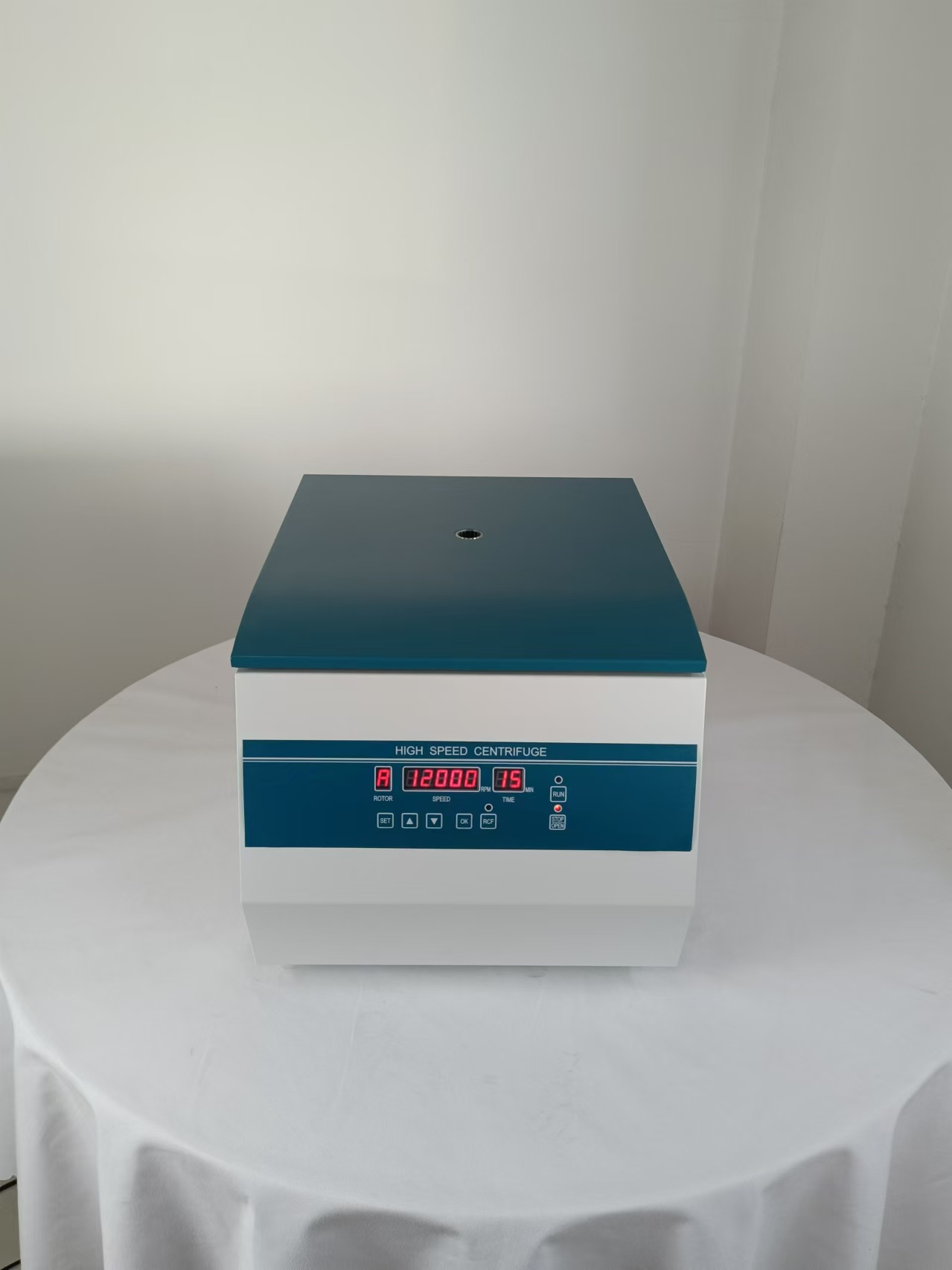

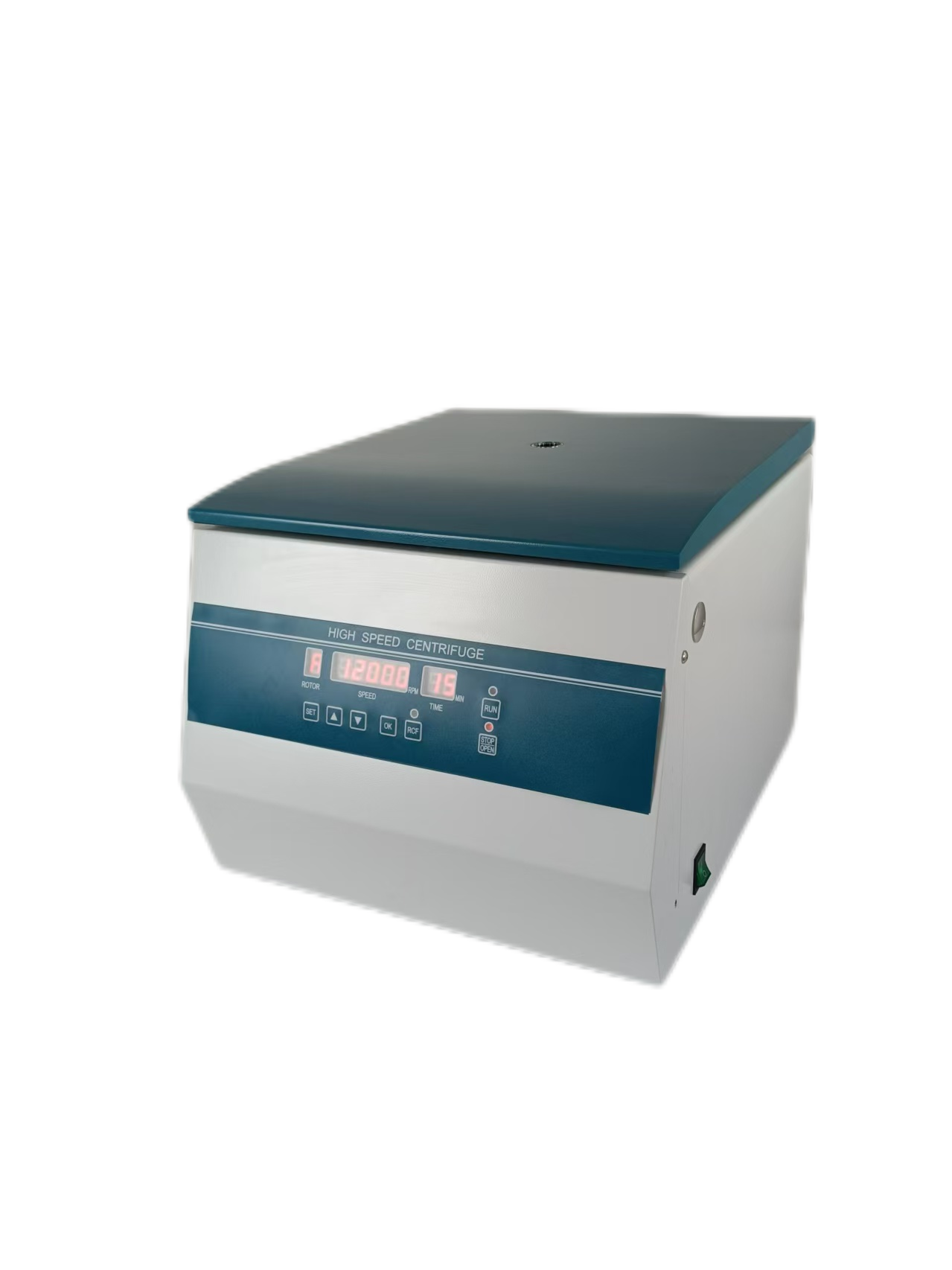

•Tabletop high-speed centrifuge, universal centrifugation for cell lysate separation, and microcentrifugation for DNA sedimentation.

• Machine is made of high-quality steel structure, which is more safe and reliable.

• Using microcomputer processor precise control, digital display speed,

time and other parameters, the parameters can be modified during

operation, centrifugal force switch key, you can check the centrifugal force at any time, can be run according to the speed and centrifuge mode

respectively.

• The start/arrival timer mode can be set.

High-efficiency variable frequency brushless motor, stable operation, maintenance-free, high torque, fast lifting speed.

• A combination of 10 speed increases and 10 speed reductions is available to achieve better separation of samples.

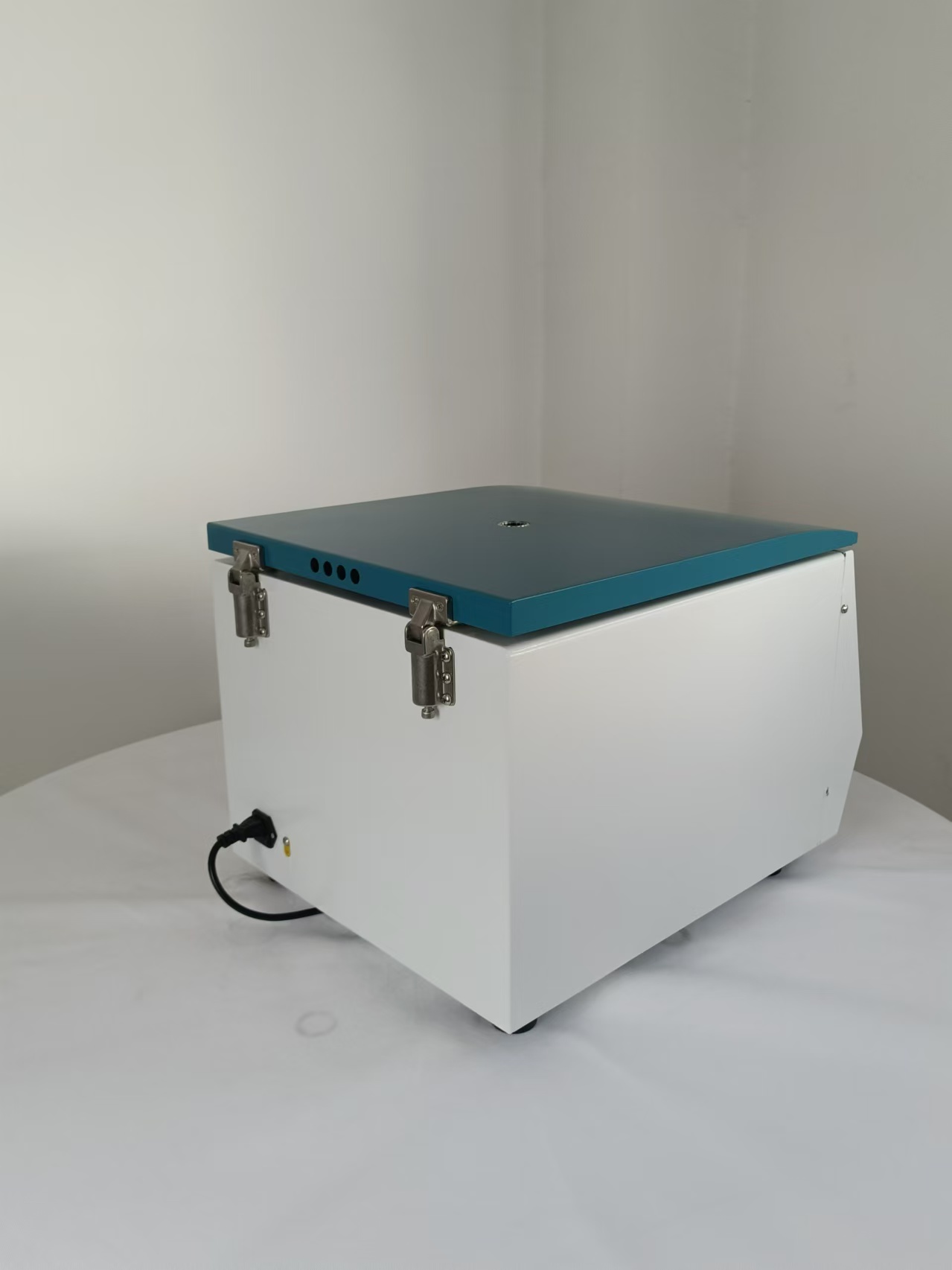

•   Lock design, electronic door lock, emergency unlocking function; Overspeed automatic

protection,unbalance protection and other early warning protection functions, automatic shutdown protection and display error code for instrument abnormality.

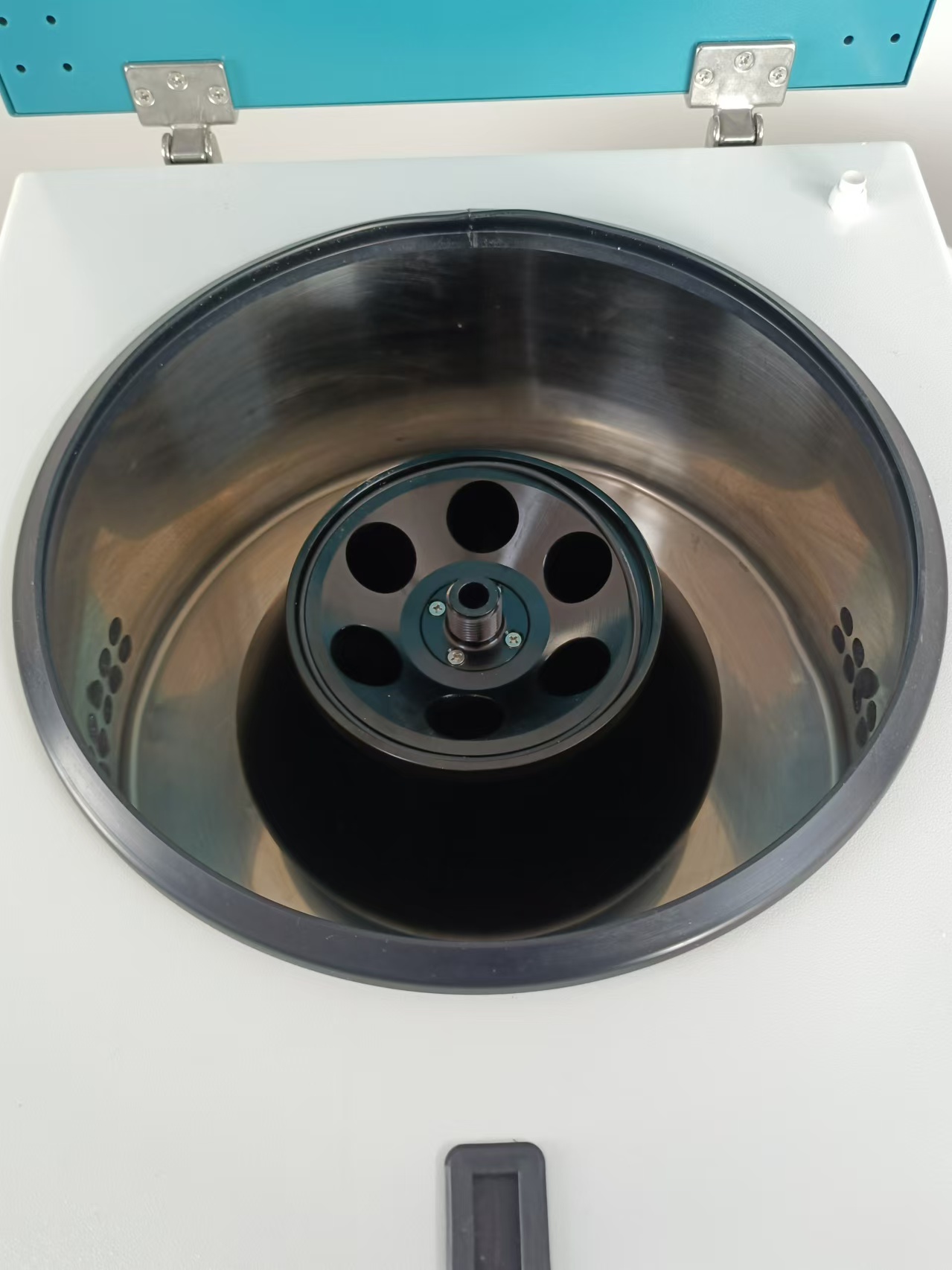

•   Automatic rotor identification system: rich rotor specifications and rotor recognition function to ensure that the rotor will not run at excessive speed, prevent personnel from misoperation, and  centrifuge is safer.

•   It is suitable for experiments and analysis in the fields of biology, medicine and agricultural science, and has a more significant effect in experimental research and use in genetics and  protein accounting.•   Optional digital display, LCD display, touch screen control.

ModelHC-16A
MAX RPM16500 RPM, stepless speed regulation
Max RCF18360xg
Timer0-99min59S
MAX Rotor capacityAngle rotor 100mlx4
Speed accuracy±20r/min
Voltage110V/60Hz/220V 50Hz
Dimension(mm)400x510x365
Package(mm)480x590x450
G.W./N.W.42/32KG
Rotor descriptionRotor No.Max Speed rpmRotor CapacityMax RCF xg
Optional Angle rotor 1A160212Q165001.5/2mlx1218360xg
Optional Angle rotor 2A160018Q160000.5mlx1816000xg
Optional Angle rotor 3A150512Q150005mlx1215940xg
Optional Angle rotor 4A140224Q140001.5/2mlx2418757xg
Optional Angle rotor 5A131012Q1300010mlx1217370xg
Optional Angle rotor 6A130236Q130001.5/2mlx3617288xg
Optional Angle rotor 7A125006Q12000round bottom50mlx615285xg
Optional Angle rotor 8A1150J06Q11000pointed round bottom50mlx612840xg
Optional Angle rotor 9A101512Q1000015mlx129690xg
Optional Angle rotor 10A1010004Q10000100mlx49690xg
Optional Swing rotor 11S1215241200024 capillaries15300xg
