Product info
- Product name:Camera‑Type Human & Veterinary Dental X‑ray Unit
- Product code:CC24071606
Packaging Specifications
- Outer Packaging Size:0.34 × 0.34 × 0.15 m
- Gross Weight:3.24 kg
- Net Weight:1.88 kg
- Volume:0.02
Description

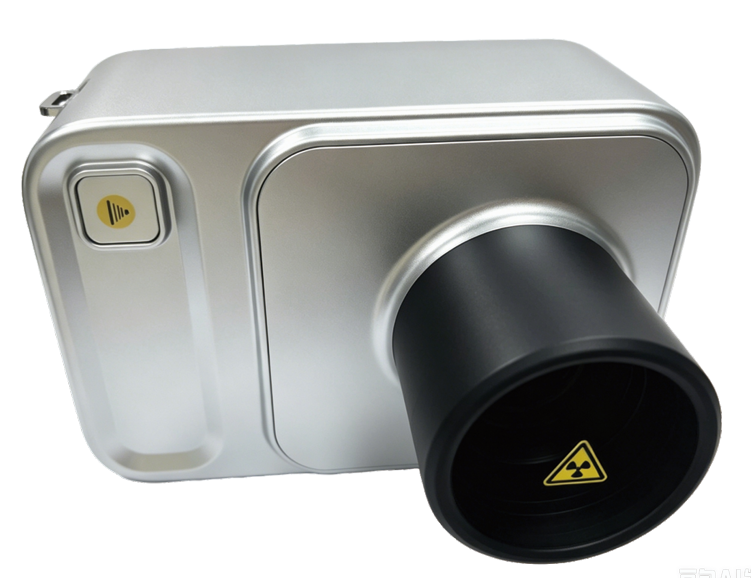

Camera‑type Dental X‑Ray Machine & Veterinary Dental X‑Ray Machine
Two devices share identical main hardware units; they differ only in software exposure parameters and imaging targets for human dental clinical use and pet / animal dental diagnosis respectively.
Specification Comparison Table
| Item | Human Dental X‑Ray Machine (Camera‑type) | Veterinary Dental X‑Ray Machine (Veterinary) |
|---|---|---|
| Full Product Name | Camera‑type Dental X‑Ray Machine | Veterinary Dental X‑Ray Machine |
| Core Generator | Super‑high‑frequency X‑ray generator | Super‑high‑frequency X‑ray generator |
| Display Screen | LCD liquid‑crystal display screen | LCD liquid‑crystal display screen |
| Tube Voltage | 60.0KV | 60.0KV |
| Tube Focal Spot | 0.8mm | 0.8mm (same‑series model) |
| Focus‑to‑Skin Distance | 200.0mm | 200.0mm (same‑series model) |
| KV Ripple | ＜1.0% | ＜1.0% |
| Inversion Frequency | ＞100.0KHZ | ＞100.0KHZ |
| AC Input Power Supply | 100.0‑240.0VAC, 50.0‑60.0HZ | 100.0‑240.0VAC, 50.0‑60.0HZ |
| Built‑in Lithium Battery | DC22.2V / 950.0mAh | DC22.2V / 950.0mAh |
| Net Unit Weight | 1.8KGS(50% weight reduction vs traditional models, 1.0‑kg‑class lightweight design) | 1.0‑kg‑class, 50.0% weight reduction |
| Carton Dimension | 34.0cm34.0cm15.0cm | 34.0cm34.0cm15.0cm (same‑series) |
| Applicable Subject | Human oral dental examination | Dental examination for pets such as cats and dogs |
| Imaging Sample | X‑ray images of human dental apices, tooth bodies and periodontal tissues | X‑ray images of teeth, tooth roots and alveolar bones of dogs and cats |
Product Detailed Introduction
Common Core Advantages (For both human‑use and veterinary models)
Super‑high‑frequency X‑ray generation technology
Adopt world‑leading super‑high‑frequency inversion technology with KV ripple ＜1.0% and inversion frequency above 100KHZ. It delivers stable X‑ray output to guarantee high‑quality imaging performance.
Ultra‑lightweight body design
The unit achieves 50% weight reduction and reaches lightweight level of 1.0‑kg‑class. The human‑use version weighs 1.8 kg. Compact and portable for intra‑clinic mobility as well as field outreach visits.
Ultra‑low radiation dose with high‑level safety protection
Low radiation output together with high‑grade safety protection structure, maximally protecting radiation safety for operators and subjects under examination.
Flexible power supply with built‑in lithium battery
Compatible with global‑range AC input 100‑240V. Equipped with DC22.2V / 950.0mAh built‑in lithium battery to support radiography operation without mains power connection.
LCD liquid‑crystal operation display screen
Visualized screen for direct reading of tube voltage, tube current and exposure‑time parameters. Quick‑access function keys enable intuitive and easy operation.
Key Distinction Between Two Models
Human‑use Camera‑type Dental X‑Ray Machine
Developed specifically for human oral clinical practice. Its exposure parameters are tuned for tissue density of human teeth and alveolar bone. It produces human periapical radiographs for clinical scenarios including root‑canal therapy, periodontal disease screening, wisdom‑tooth assessment and diagnosis of tooth defects.
Complete mechanical specifications: tube focal spot 0.8 mm, fixed focus‑to‑skin distance 200 mm, with standard human dental radiography workflow.
Vet Veterinary Pet Dental X‑Ray Machine
Identical main hardware body as human‑use unit. Internal firmware is optimized with exposure parameters targeting teeth and alveolar bones of cats and dogs. Due to large differences in tooth morphology and bone density between animals and human beings, dedicated parameters deliver sharp images for pet tooth roots, alveolus, dental calculus and root‑resorption lesions. Suitable for dental surgery and oral‑disease screening in pet hospitals.
Manufacturer Information
China Care Medical Equipment Co., Ltd.
Address: Room B101, Zhongbang Business Building, No. 87 Puxing Road, Tianhe, Guangzhou, China
Website: https://www.chinacaremedical.com
