Product info

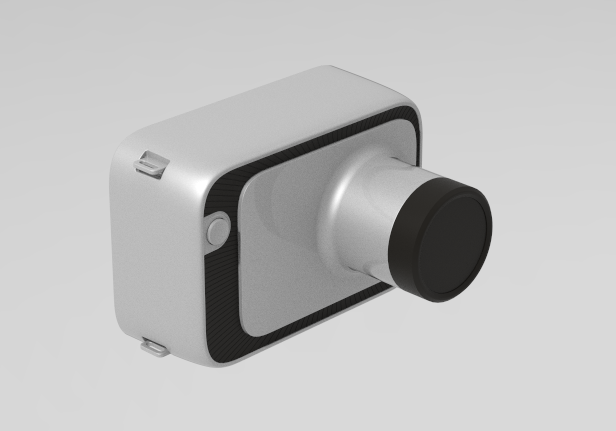

- Product name:Camera‑Style Dental X‑ray Unit, Human & Veterinary Use
- Product code:CC24071608
Packaging Specifications
- Outer Packaging Size:0.34 × 0.34 × 0.15 m
- Gross Weight:3.14 kg
- Net Weight:1.78 kg
- Volume:0.02
Description
Dental X‑Ray Machine (Human‑use / Veterinary‑use)
Both devices adopt completely identical hardware. Differences lie only in built‑in exposure preset parameters, clinical application targets and imaging samples. They are applied respectively for human dental clinical practice and pet dental diagnosis. Below please find the specification comparison table and complete product introduction.
Specification Comparison Table
| Item | Human Dental X‑Ray Machine (Camera‑type) | Veterinary Dental X‑Ray Machine (Veterinary Camera‑type) |
|---|---|---|
| Full Product Name | Camera‑type Dental X‑Ray Machine | Veterinary Dental X‑Ray Machine |
| Model Type | Camera‑type | Camera‑type |
| Display Screen | LCD Touch screen | LCD Touch screen |
| Tube Voltage | 60.0KV, 65.0KV, 70.0KV adjustable | 60.0KV, 65.0KV, 70.0KV adjustable |
| Tube Current | 2.5mA, 3.5mA adjustable | 2.5mA, 3.5mA adjustable |
| Tube Focal Spot | 0.8mm | 0.8mm |
| Focus‑to‑Skin Distance | 200.0mm | 200.0mm |
| Exposure Time | 0.010‑1.0S | 0.010‑1.0S |
| KV Ripple | ＜1.0% | ＜1.0% |
| Inversion Frequency | ＞100.0KHZ | ＞100.0KHZ |
| AC Input Power Supply | 100.0‑240.0V AC, 50.0‑60.0HZ | 100.0‑240.0V AC, 50.0‑60.0HZ |
| Lithium Battery | DC22.2V / 950.0mAh | DC22.2V / 950.0mAh |
| Net Weight | 1.8KGS | 1.8KGS |
| Gross Weight | 3.0KGS | 3.0KGS |
| Carton Dimension | 34.0cm34.0cm15.0cm | 34.0cm34.0cm15.0cm |
| Light‑weight Design | 50% weight reduction vs traditional models, 1.0‑kg‑class design | 50% weight reduction vs traditional models, 1.0‑kg‑class design |
| Applicable Subject | Human oral dental examination | Dental examination for pets such as cats and dogs |
| Imaging Sample | X‑ray images of human teeth, tooth roots and periodontal tissues | X‑ray images of pet teeth, tooth roots and alveolar bones |
Detailed Product Introduction
Common Core Advantages (for both human‑use and veterinary‑use models)
Ultra‑high‑frequency X‑ray Generation System
Equipped with industry‑leading ultra‑high‑frequency inverter technology. KV ripple is less than 1.0% and inversion frequency is higher than 100.0KHZ. It delivers stable and uniform X‑ray output to ensure high‑quality imaging performance.
Light‑weight & Portable Body
The unit achieves 50% weight reduction and reaches lightweight level of 1.0‑kg‑class, with net weight of 1.8kg. Compact in size, it is suitable both for fixed dental clinics and for home visits and field diagnosis.
Ultra‑low Radiation Dose with High‑grade Safety Protection
It features ultra‑low radiation output together with comprehensive safety protection design to fully guarantee radiation safety for operators and subjects under examination.
Adjustable Exposure Parameters
Three‑level adjustable tube voltage: 60.0KV / 65.0KV /70.0KV; Two‑level adjustable tube current: 2.5mA, 3.5mA; Exposure time ranges from 0.010‑1.0S. Parameters can be flexibly set according to actual shooting subjects.
LCD Touch‑Screen Operation
Visualized touch display screen enables simple and convenient operation.
Dual‑power Supply for AC & DC
Compatible with global wide‑range AC voltage of 100‑240V. Built‑in DC22.2V / 950.0mAh lithium battery supports radiography operation even without external mains power supply.
Key Differences Between Two Models
Human‑use Camera‑type Dental X‑Ray Machine
It shares identical hardware configuration with veterinary‑use version. Built‑in preset parameters are adapted to tissue density of human teeth and alveolar bone.
Suitable for dental clinics. It supports periapical inspection, root canal therapy evaluation, periodontal disease diagnosis, wisdom‑tooth assessment, tooth defect diagnosis and other human dental radiography applications. Its imaging sample is human oral periapical X‑ray film.
Veterinary Pet Dental X‑Ray Machine
Full hardware and physical parameters are exactly the same as human‑use version. The firmware is embedded with special optimized exposure presets for cats and dogs.
Significant differences exist in tooth morphology, root structure and bone density between pets and human beings. Dedicated parameters can acquire clear images of pet root resorption, alveolar bone injury, dental calculus and oral inflammation. Widely used for dental screening as well as pre‑operative and post‑operative evaluation in pet hospitals. Its imaging sample is canine and feline dental X‑ray images.
Manufacturer Information
China Care Medical Equipment Co., Ltd.
Address: Room B101, Zhongbang Business Building, No. 87 Puxing Road, Tianhe, Guangzhou, China
Website: https://www.chinacaremedical.com
