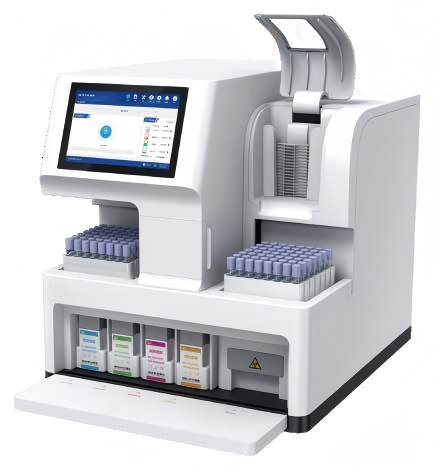

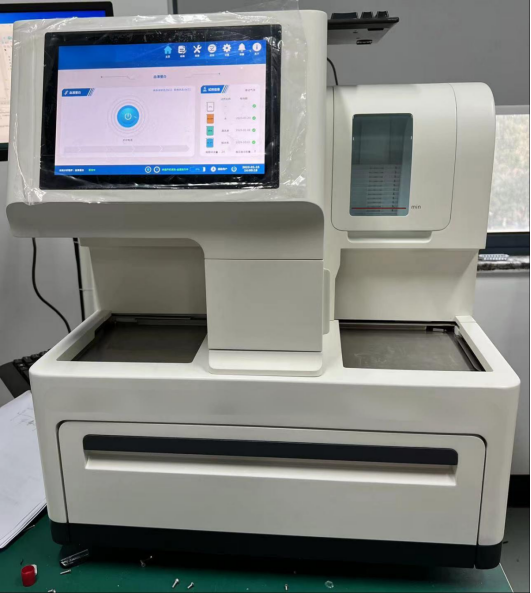

Automatic Capillary Electrophoresis Instrument

Product Introduction

Clinical Protein Detection Solutions

The automatic capillary electrophoresis instrument supports multiple clinical protein analysis items including serum protein, hemoglobin, urine protein, delivering accurate and reliable protein analysis results.

Automatic Capillary Electrophoresis

Serum protein electrophoresis/immunotyping

1. Serum protein electrophoresis results provide diagnostic basis for inflammation, liver cirrhosis, nephropathy and multiple myeloma.
2. Under IMWG and NCCN diagnostic criteria, serum protein electrophoresis and immunotyping for detecting monoclonal immunoglobulin are vital methods to judge multiple myeloma, and offer key basis for disease staging, prognosis evaluation and follow-up testing.
3. Capillary electrophoresis immunotyping has superiorities over traditional manual methods: high automation, high resolution and easy operation.

Electrophoresis systems designed for clinical laboratory

Hemoglobin electrophoresis

1. Capillary electrophoresis analysis of hemoglobin acts as a major screening method for thalassemia.
2. Applicable crowd: MCV<80fl or MCH < 27pg
3. Functions: Identify thalassemia gene carriers and assess disease conditions; display common thalassaemia screening patterns.

Glycosylated hemoglobin

1. ADA and WHO guidelines take HbA1C as the gold standard for diabetes diagnosis.
2. Capillary electrophoresis for glycosylated hemoglobin detection is a primary reference method released by IFCC, with the following features:

• Simultaneous detection of HbA1C
• Identify abnormal hemoglobin and avoid interference
• Realize diagnosis of thalassemia and iron deficiency anemia
• Ensure the accuracy of test results

Product Overall Description

The automatic capillary electrophoresis instrument is an electrophoresis system specially developed for clinical detection, which can satisfy testing demands of various proteins. It features high throughput, high resolution and intelligent operation.

Quick and easy process

Integrated design

1. Sampling area

• Direct sampling from primary tubes
• Automatic mixing and cap-piercing for whole blood samples

1. Reagent area

• Reagent compartment with temperature control function
• The chip automatically identifies the reagent item information, shelf life, batch number, etc.

1. Separation & detection system

• Parallel analysis by 8 capillaries
• High-precision electrophoresis temperature control
• Integrated dual light sources to detect and identify various body fluid proteins

1. Sample area

• Large loading capacity with 48 samples (6 racks)
• Intelligently identify the sample rack and automatically distinguish sample types

Product Advantages

1. Automation
   Realize fully automatic sampling, separation, detection and interpretation.
2. High resolution
   Accurately separate multiple proteins and effectively identify abnormal pathological proteins.
3. Intelligent
   Intelligent interpretation function; database flagging of patient status to improve staff work efficiency.
4. Multifunction
   Adapt to serum protein electrophoresis, hemoglobin electrophoresis and other detections to meet diverse clinical testing needs.
5. Flexibility
   Expandable with an external sampler; compatible with touch screen or PC operation modes, applicable to scenarios with different throughput requirements.

Performance Parameters

• Dimension: 650mm×644mm×675mm
• Weight: ~75KG
• Capillary quantity: Eight capillaries
• Applicable samples: Serum, Whole blood, etc
• Light source: Deuterium lamp, LED
• Throughput: Hemoglobin:50t/h; Serum Protein:90t/h
• Data function: Support import and export of patient data
