Product info

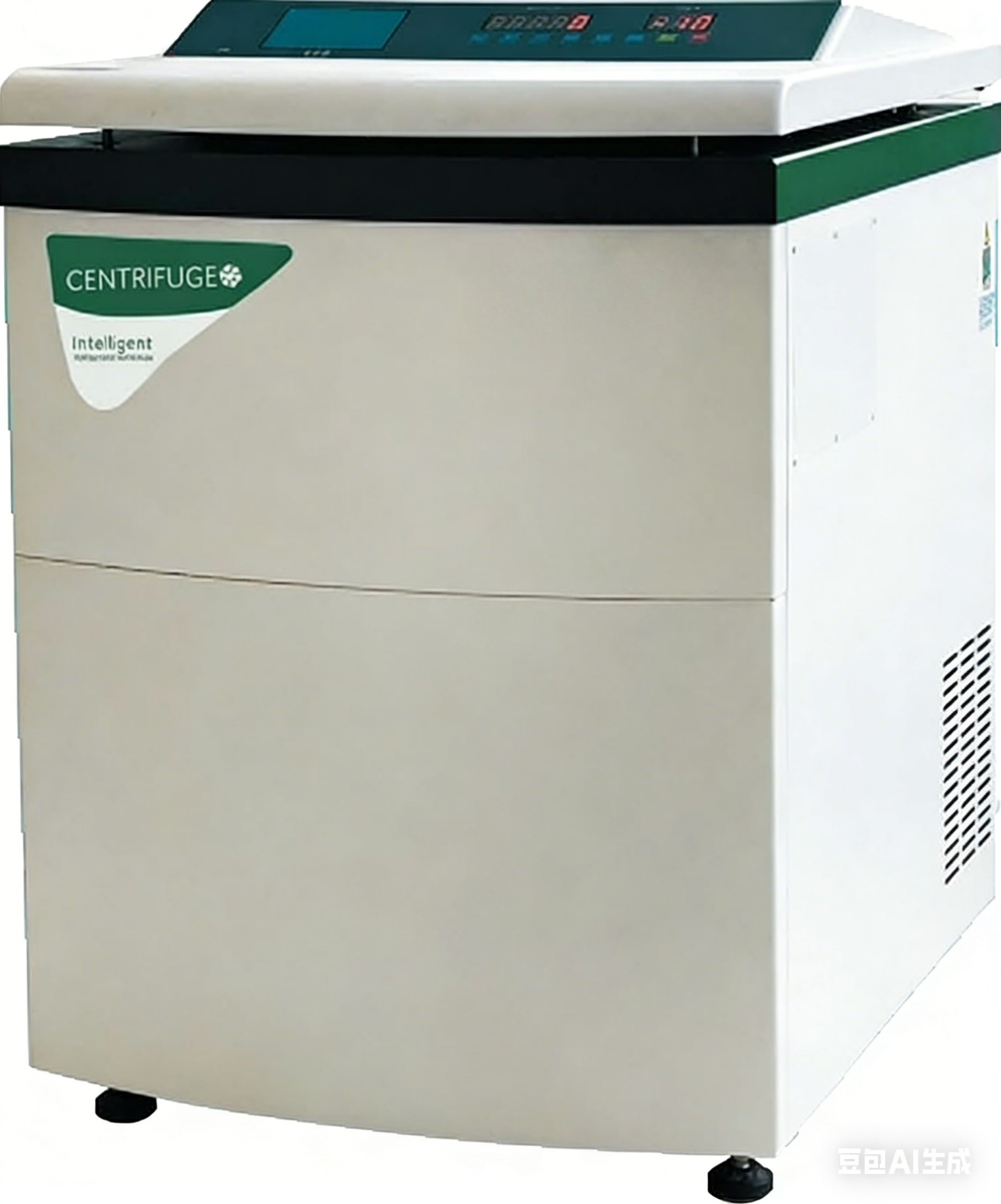

- Product name:6*500ml Blood Bag Freezing Centrifuge
- Product code:C260409606
Packaging Specifications
- Outer Packaging Size:0.83 × 1 × 1.3 m
- Gross Weight:320 kg
- Net Weight:260 kg
- Volume:1.08
Description
C260409606 Floor Standing Refrigerated Centrifuge
Main Features
- Floor-standing design, driven by variable frequency motor, equipped with French Tecumseh refrigeration system
- Touch button control with LCD screen displaying rotation speed and running time
- Microcomputer intelligent control, full-automatic operation with fault self-diagnosis alarm
- Freely switchable rotation speed and relative centrifugal force (RCF)
- Parameters can be modified arbitrarily during operation
- Multiple rotor configurations optional, automatic balance detection, high-precision temperature control for centrifugal chamber
- Real-time error code display, adjustable acceleration & deceleration speed, electronic safety lid lock
- Automatic alarm and shutdown upon operation completion, fault occurrence or sample imbalance
- Dual safety protection: overspeed protection & overtemperature protection
- Widely applied in hospitals, radioimmunology labs, biochemistry labs, agriculture, animal husbandry, pharmaceutical factories and other scientific research institutions; ideal equipment for liquid phase separation
Technical Specifications
| Item | C260409606 |
|---|---|
| Max Speed | 6000 RPM, stepless speed regulation |
| Max RCF | 6680xg |
| Timer Range | 0–23h 59min |
| Max Rotor Capacity | Swing rotor: 1000mL × 6 round cups |
| Speed Accuracy | ±20r/min |
| Power Consumption | 2200W |
| Temperature Control Range | -20℃ ~ 40℃ |
| Temperature Control Accuracy | ±2℃ |
| Power Supply | AC220V 50Hz |
| Machine Dimension (L×W×H) | 730×930×1100 mm |
| Package Size | Main unit: 830×1000×1300 mm; Accessory box: 800×720×400 mm |
| Gross Weight / Net Weight | 320kg / 260kg |
Plain Text Version for Product Page
Features:
Floor-standing structure with variable frequency motor and French Tecumseh refrigeration system.
Touch button operation, LCD display for speed and running time.
Microcomputer full-automatic control with fault alarm function.
Rotation speed and RCF can be freely selected, and parameters can be adjusted at any time during running.
Supports multiple rotor configurations, automatic balance function and high-precision chamber temperature control.
Displays error codes, adjustable acceleration/deceleration rate, electronic safety lid lock.
Automatically alarms and stops when finished, faulty or unbalanced.
Built-in overspeed and overtemperature dual protection.
Suitable for hospitals, radioimmunology, biochemistry, agriculture, animal husbandry, pharmaceutical and other research institutes for solution separation.
Technical Parameters:
Model: C260409606
Max Speed: 6000 RPM, stepless adjustable
Max RCF: 6680xg
Timer: 0-23h59min
Max rotor capacity: Swing rotor 1000ml×6 round cups
Speed accuracy: ±20r/min
Power: 2200W
Temperature control range: -20℃~40℃
Temperature control accuracy: ±2℃
Voltage: 220V 50Hz
Dimension(mm):730x930x1100
Package size(mm): 830x1000x1300 + 800x720x400
G.W./N.W.: 320kg / 260kg
