Description

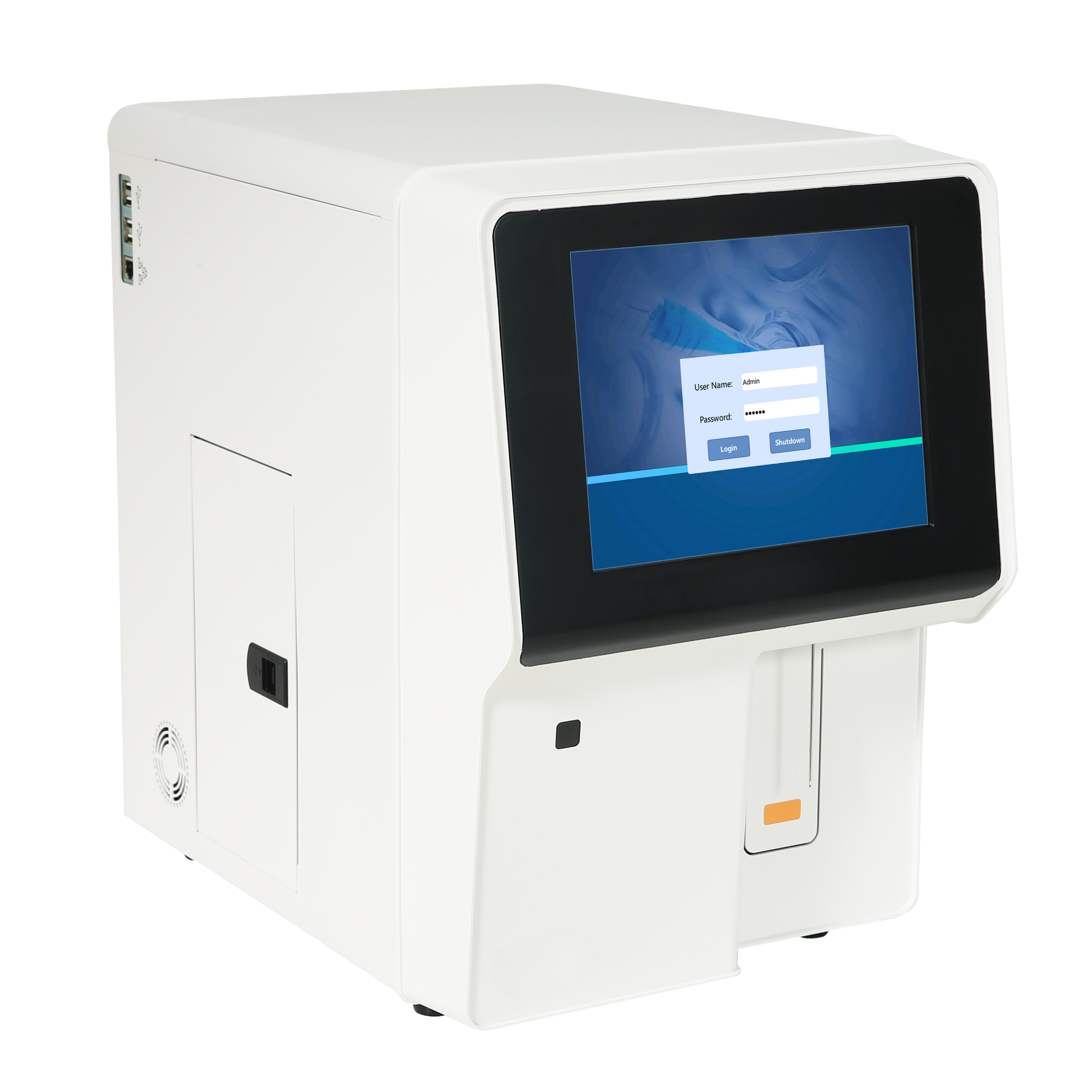

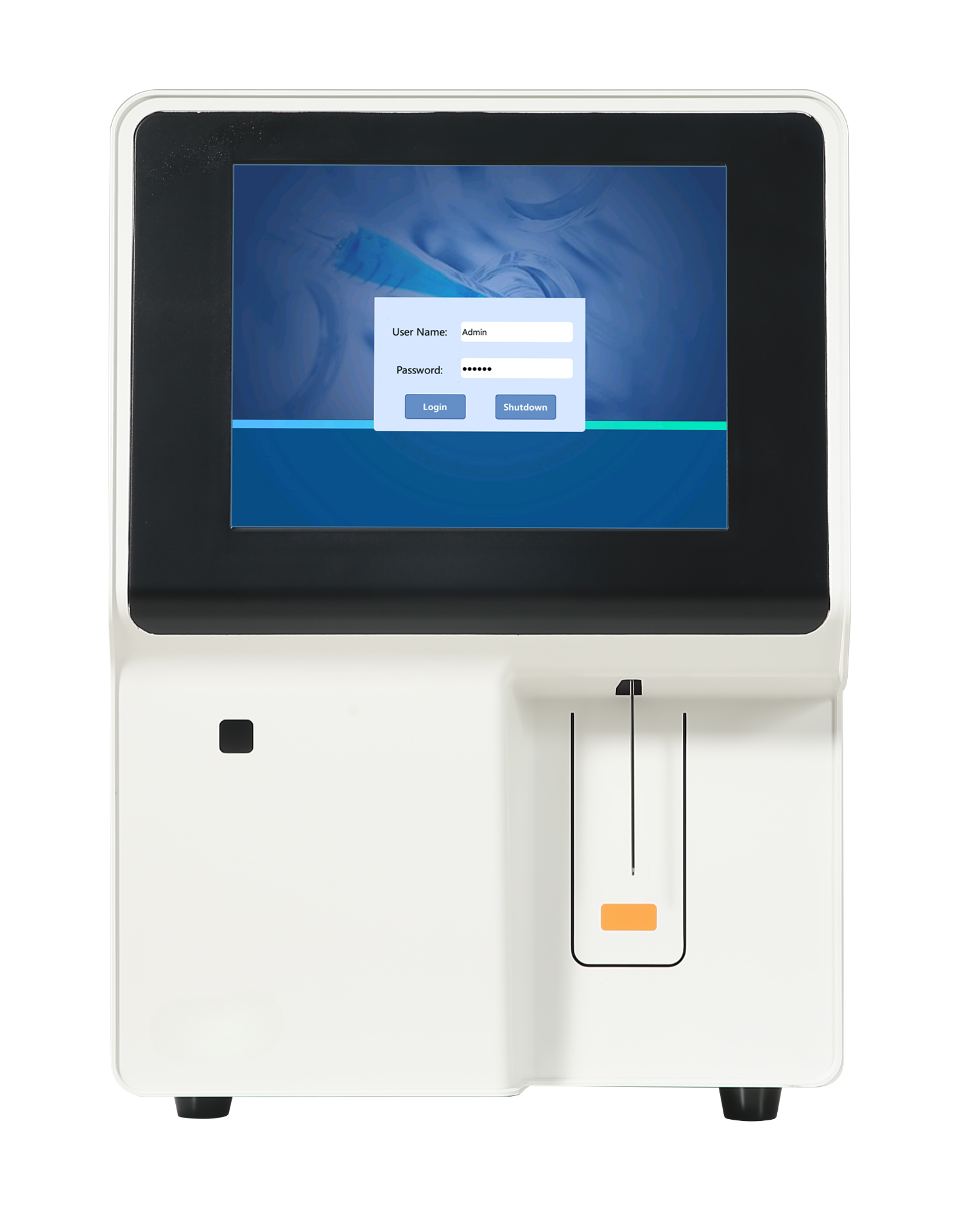

5‑Part Hematology Analyzer

Small and Convenient, Easy to Detect

The analyzer is compact and convenient for operation and testing in the laboratory. The open sample loading design allows for instantly initial screening in outpatient and emergency department. The built‑in design of the reagent compartment door is adopted to save the space of the laboratory.

Technology and Method

Coulter's principle was used to detect the number and volume distribution of red blood cells(RBC)and platelets(PLT). A separate BASO channel is adopted with optical counting to make the differentiation more precise.

Principles

Flow Cytometry(FCM)+Tri‑angle laser scatter+Chemical staining method for WBC differentiation

Impedance method for RBC and PLT test

Cyanide free colorimetry for HGB test

Product Specifications

• Parameters: WBC, Neu#, Lyn#, Mon#, Eos#, Bas#, Neu%, Lyn%, Mon%, Eos%, Bas%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW‑CV, RDW‑SD, PLT, MPV, PDW, PCT, P‑LCC, P‑LCR, ALY#, LIC#, ALY%, LIC%, four scattergrams, two histograms
• Sample Mode: Whole blood, capillary whole blood and pre‑diluted mode
• Throughput: 60 samples/hour
• Detecting Channels: Dual channels
• Sample Volume: CBC 20μL, CBC+DIFF 20μL, pre‑diluted mode 200μL
• Calibration Methods: Manual calibration, calibrator calibration
• Display: 10.4‑inch full‑color touchscreen
• Dimension: (W×H×D) 325×465×470mm
• Net Weight: 29Kg
• Languages: English, Spanish, Customized Language
• Interface: 4 USB ports, bidirectional LIS function, LAN interface supports HL7 protocol
• Optional Accessories: External barcode scanner, printer, mouse, keyboard
• Supporting Reagents: Diluent, Hemolytic agent, Probe cleanser
• Highlights
• 10.4‑inch full‑color touchscreen, user friendly operation software
• 4 USB ports for data transmitting and external printer connection
• No barrier around the needle, suitable for either left or right hand
• 4 reagents in total, 2 years shelf life
