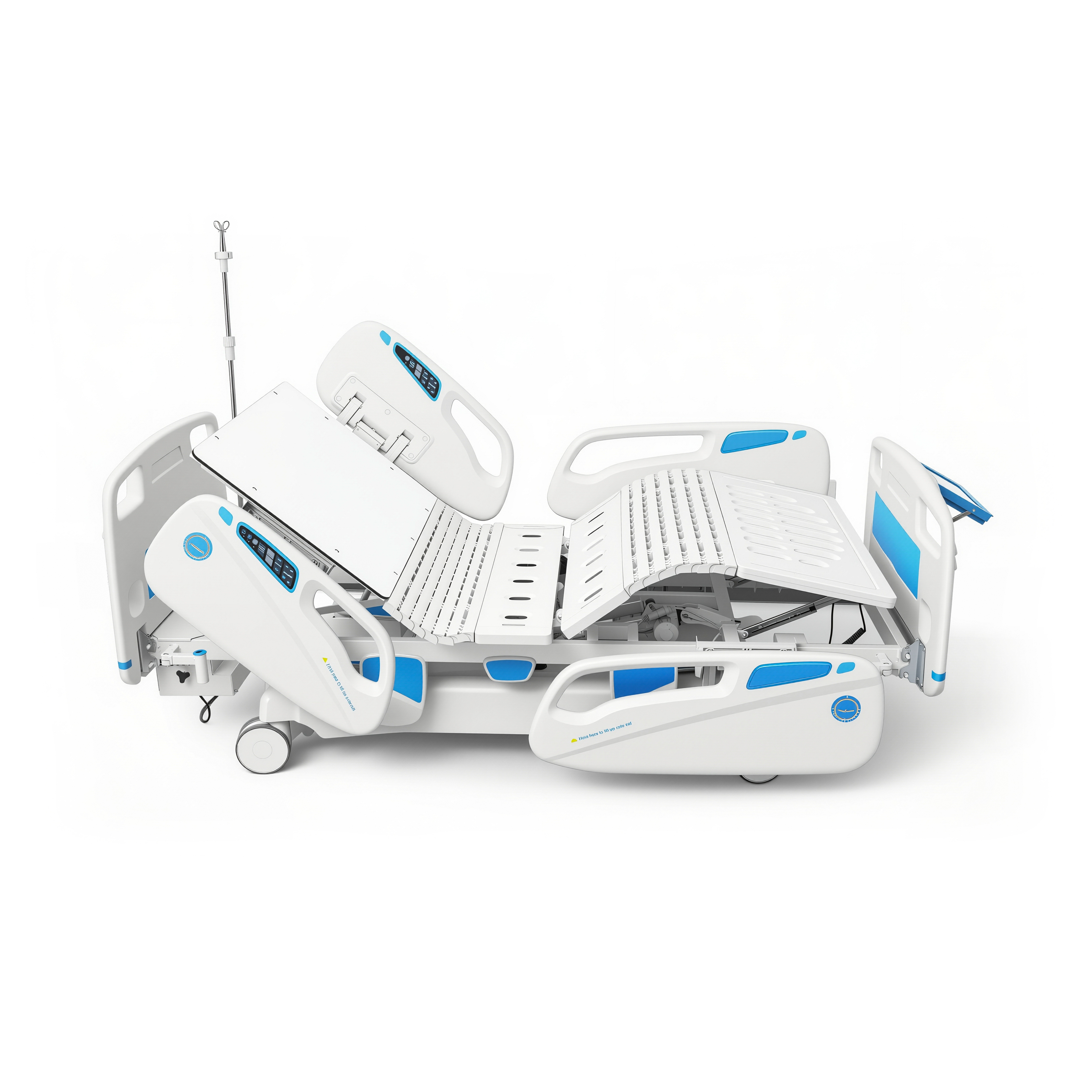

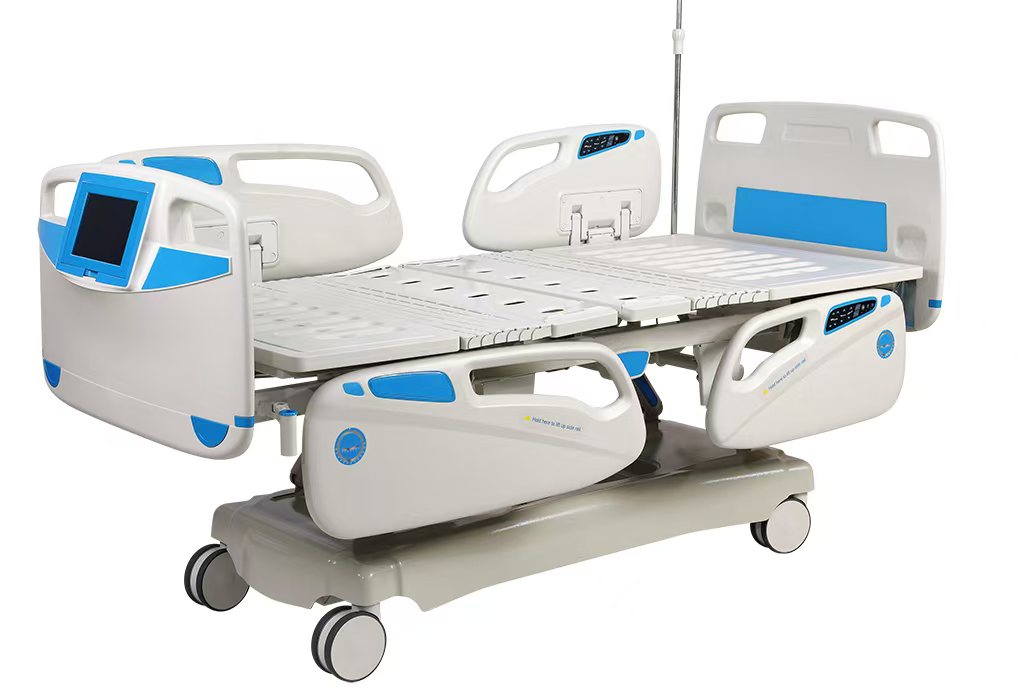

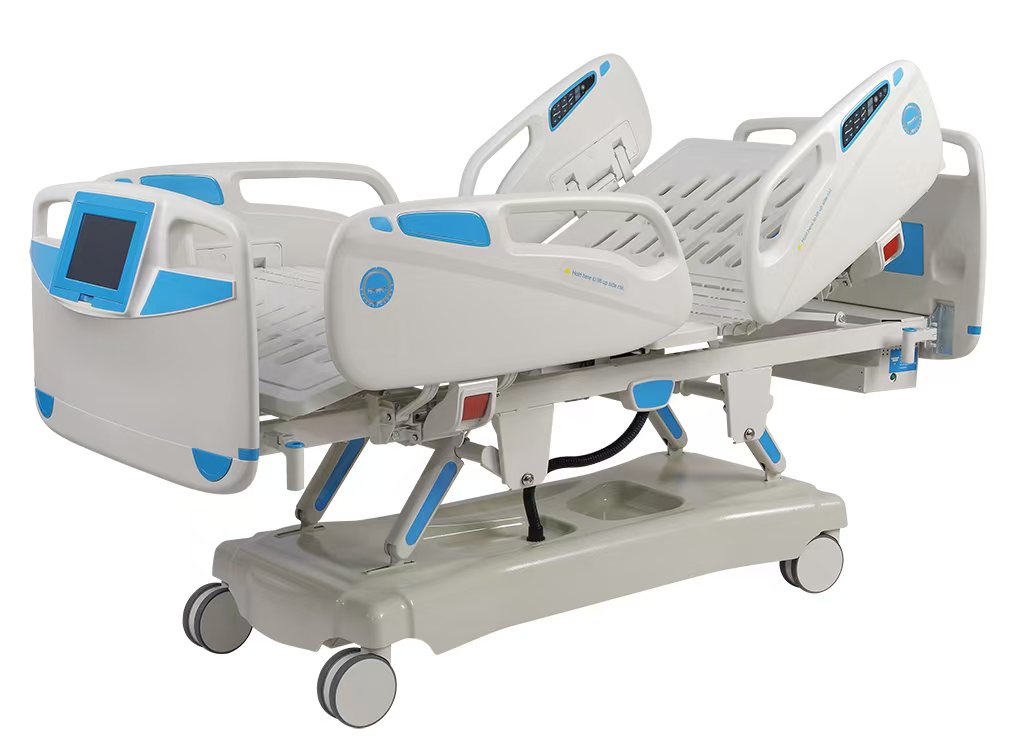

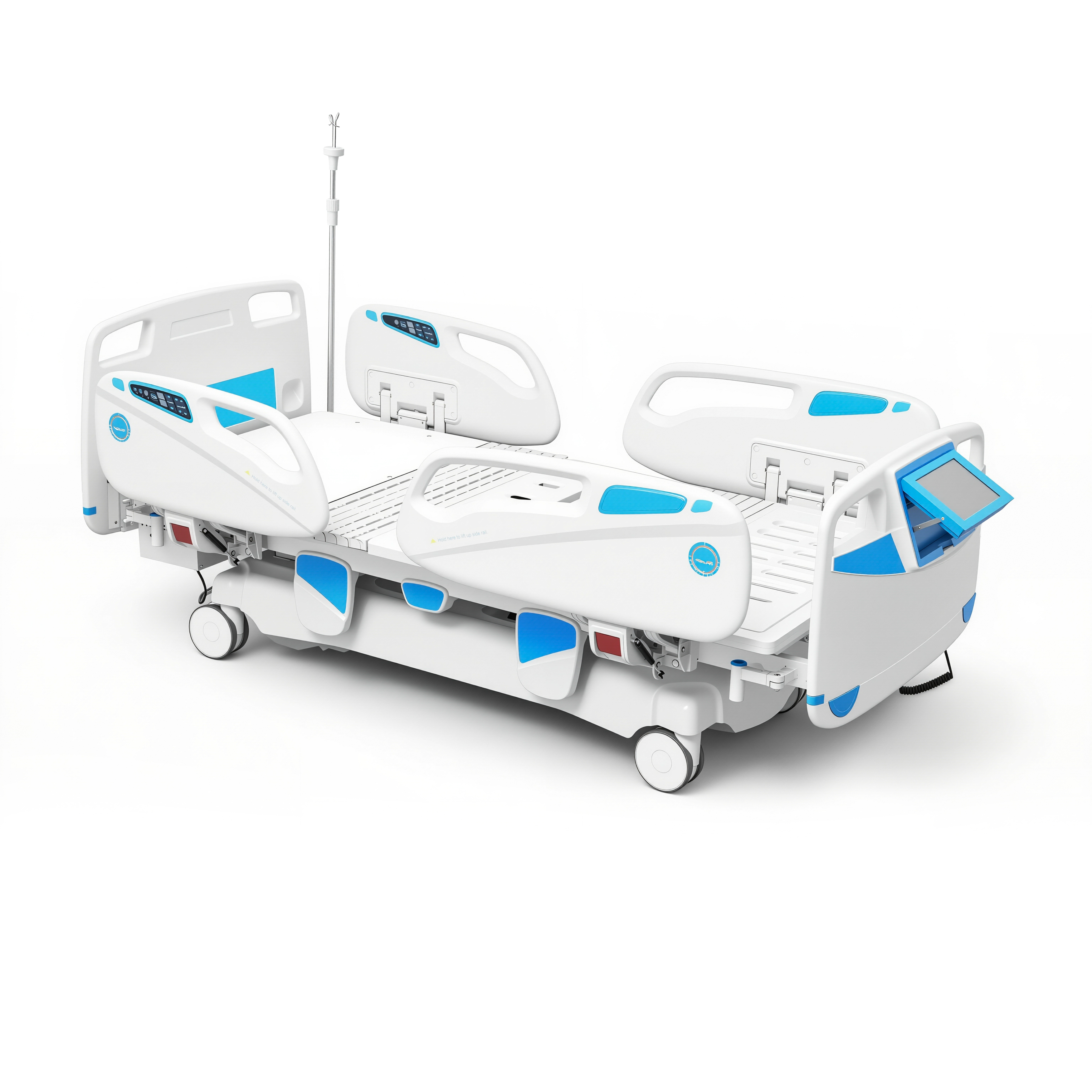

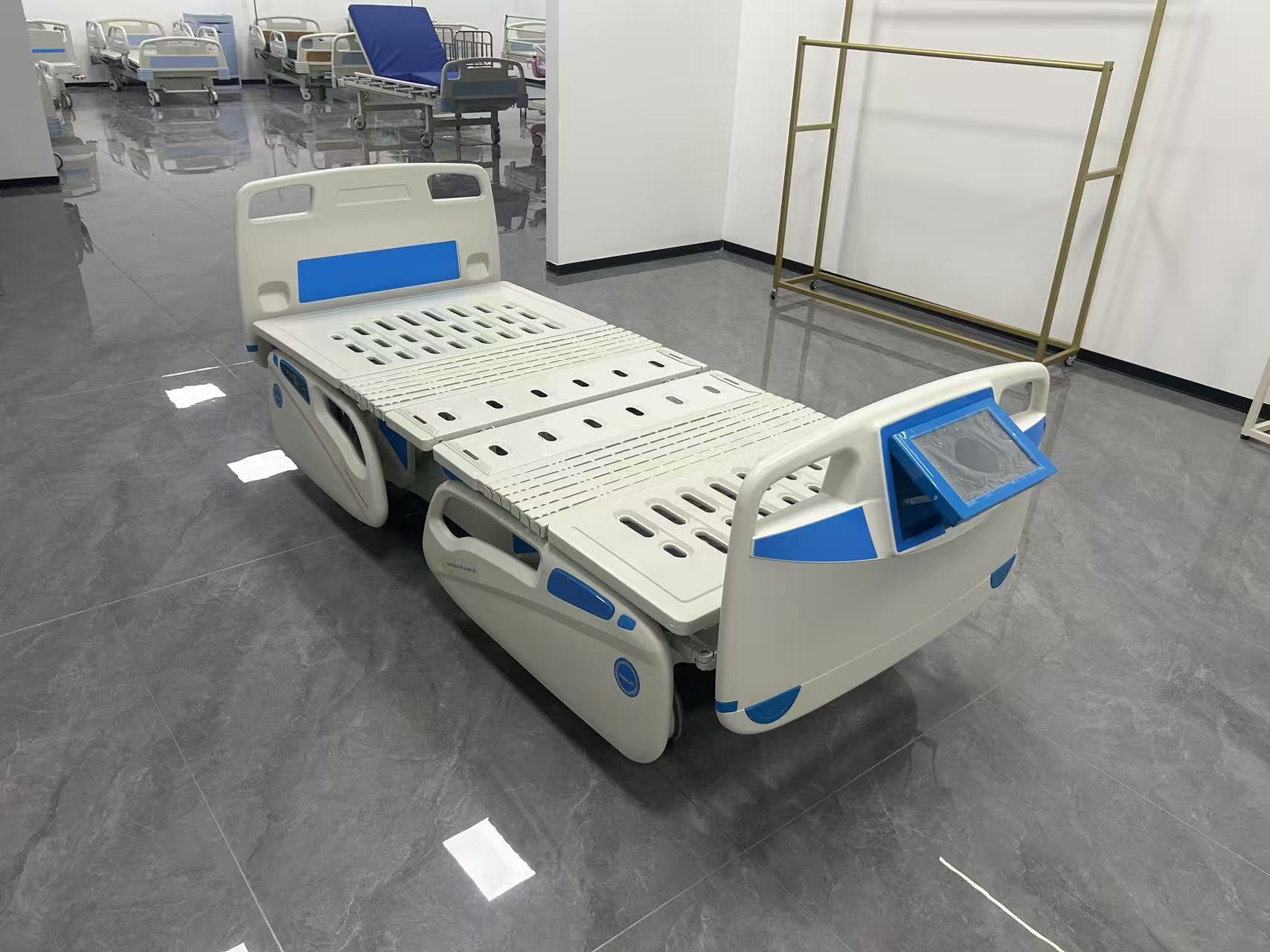

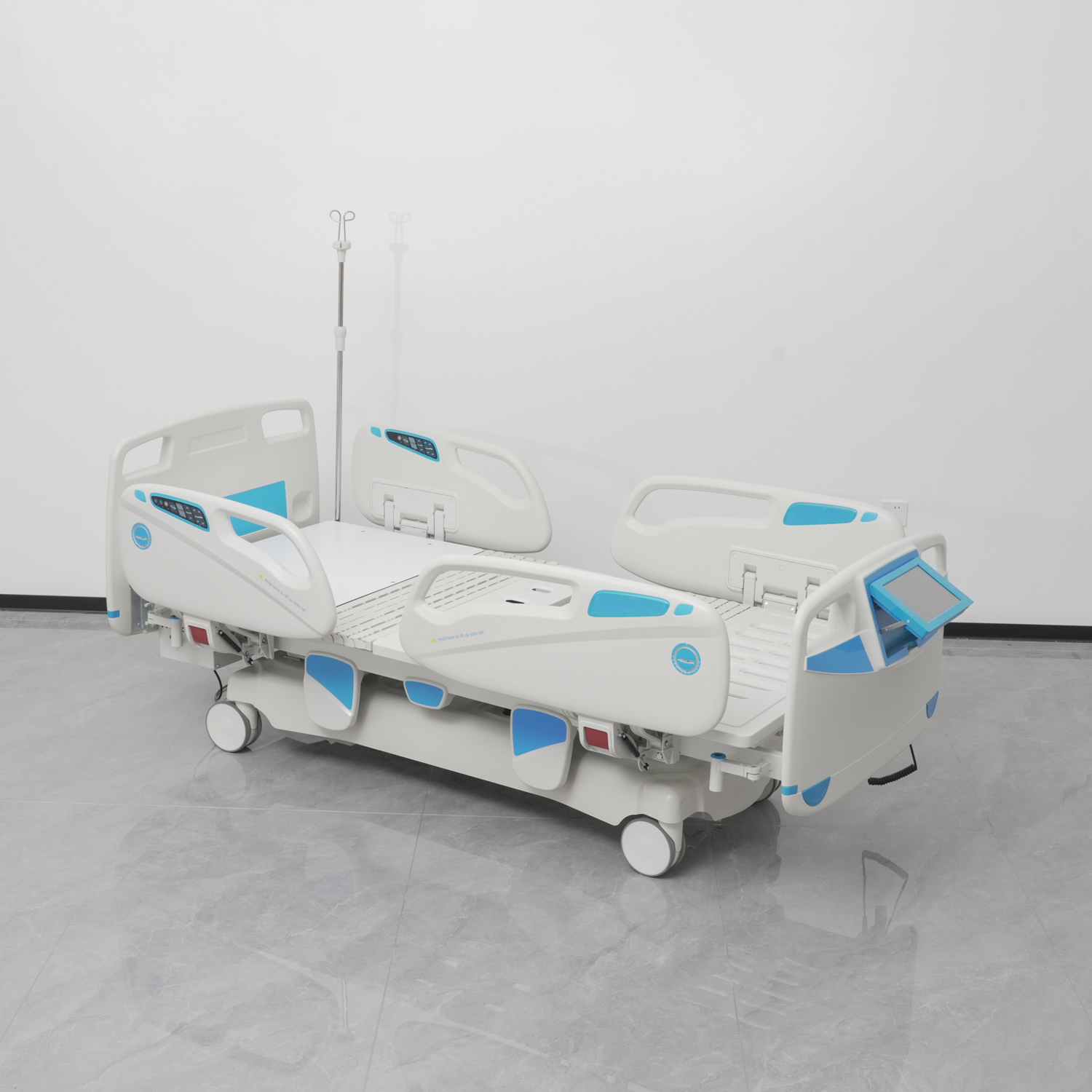

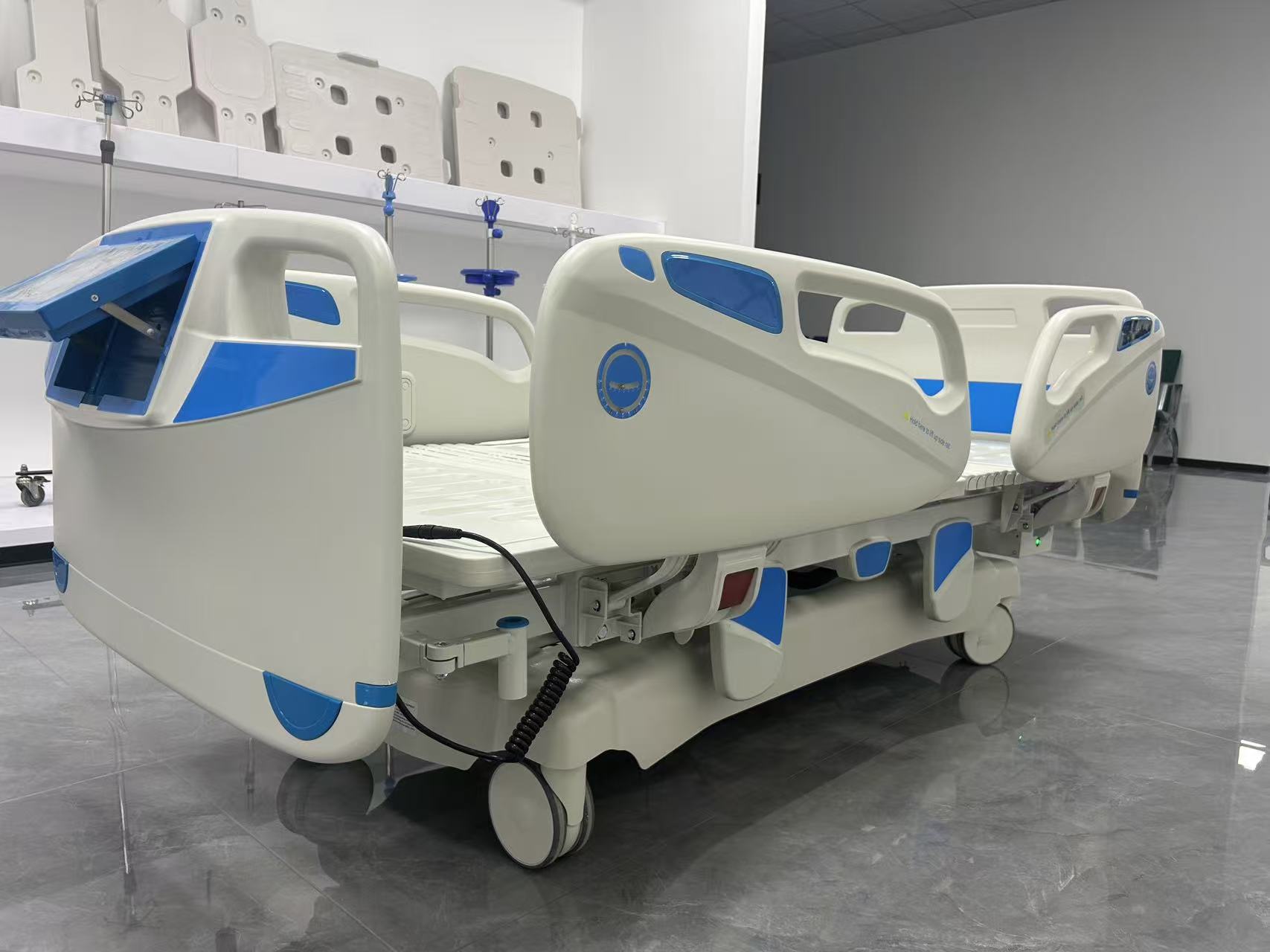

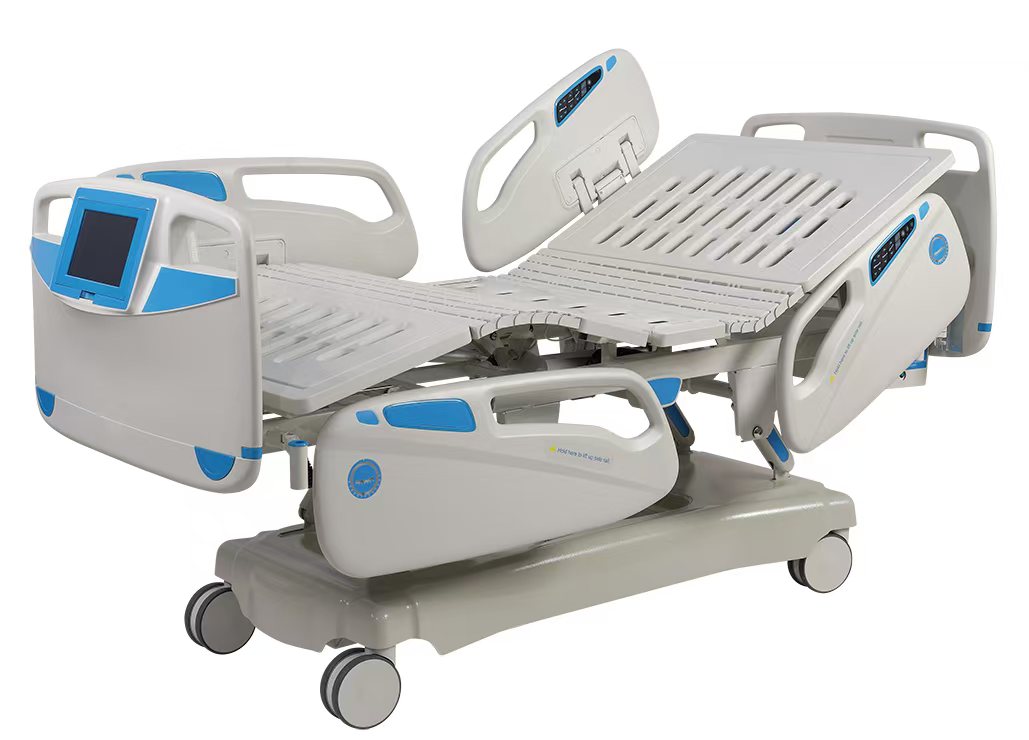

Description

Overall size:2330*1050*530/710mm

Standard Configuration:

▪ Denmark LINAK medical motor system

▪ Urine hooks,I.V drip

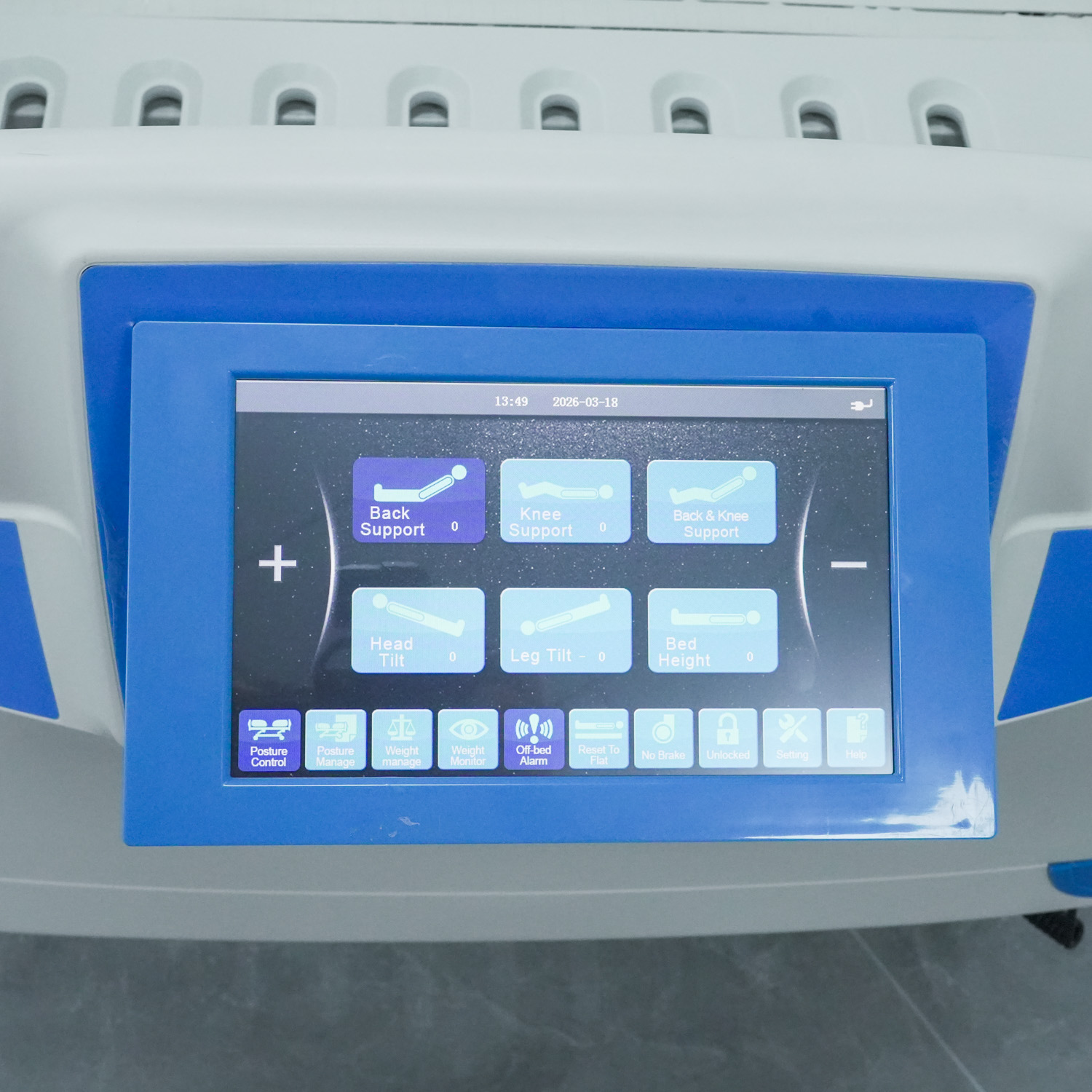

▪ Side rails touch keypad

▪ Foot panel touch keypad

▪ With UPS

Function:

▪ Height adjustable from 530 to 710mm

▪ Back-rest lifting angle is 0-65°(±5°)

▪ Knee-rest lifting angle is 0-43°(±5°)

▪ Trendelenburg are 0-10°

▪ Rev.Trendelenburg are 0-10°

▪ all achieved by electrically controlled ,with indicator light to show the work status.

▪ Bed position data could be stored and data could be callout

▪ Function of weight scale ,weight data could be stored and managed Off-bed alarming

▪ Alarm for patient leave the bed

▪“Reset” function , bed could back to “Zero” position quickly
