Product info

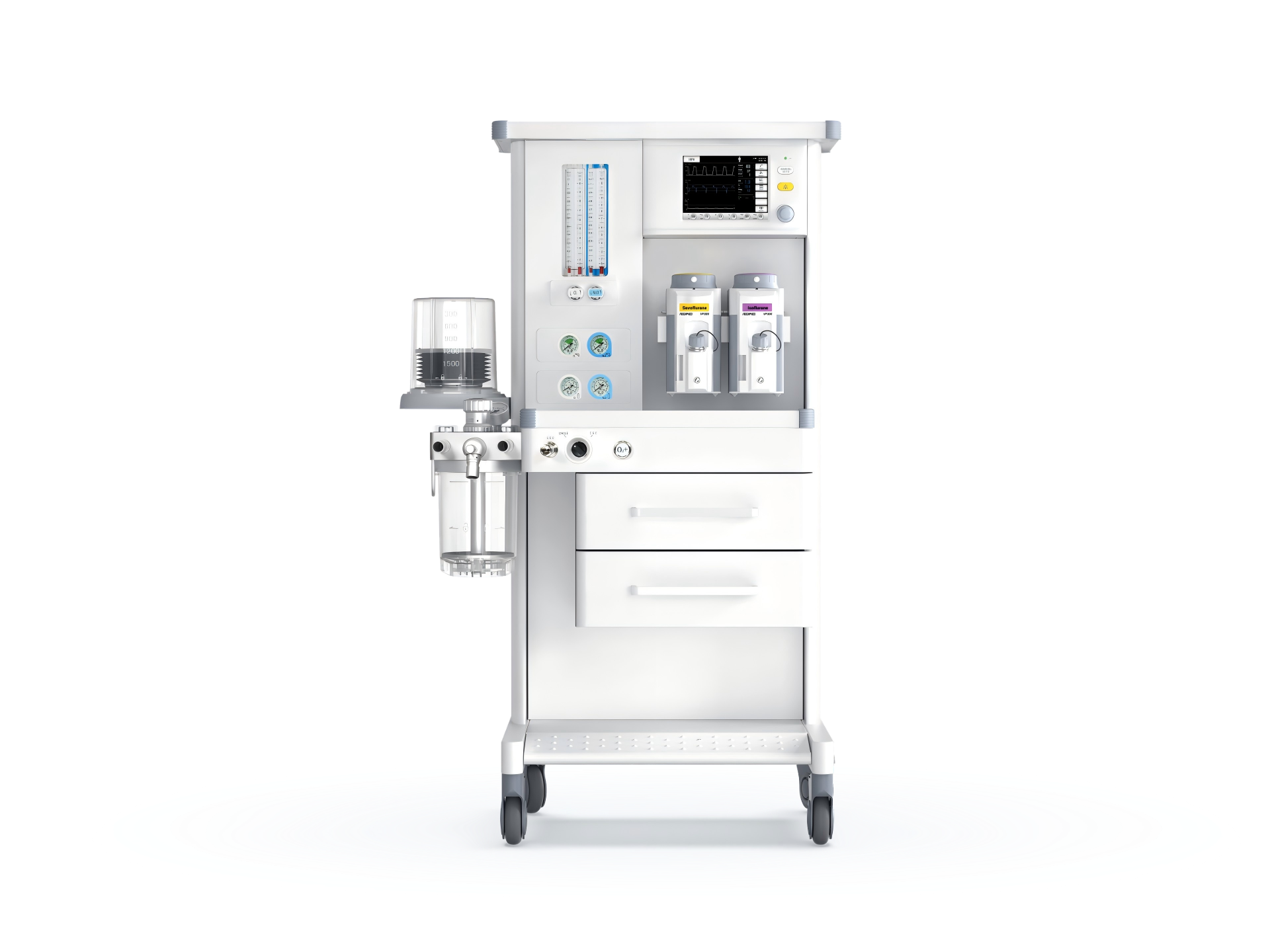

- Product name:Anesthesia machine + dual vaporizers
- Product code:C260812011
Packaging Specifications
- Outer Packaging Size:1 × 0.81 × 1.53 m
- Gross Weight:116 kg
- Net Weight:78 kg
- Volume:1.24
Description
C260812011 Anesthesia Machine (Dual‑Vaporizer Model) Summary
Manufacturer: China Care Medical Equipment Co., Ltd.
Product Overview
This is a CE‑certified pneumatically‑driven, electronically‑controlled anesthesia workstation for paediatric to adult patients. It supports low‑flow anaesthesia, multiple ventilation modes, dual‑vaporizer mounting, optional monitoring modules and multiple circuit working modes (closed, semi‑closed, semi‑open).
Core Advantages
- Accurate gas delivery: Dual‑tube mechanical flowmeters support mini‑low‑flow anaesthesia. Built‑in hypoxic‑guard design guarantees inhaled oxygen concentration ≥21 % to reduce hypoxia risk. Reinforced knob‑shield protects flowmeters.
- Durable breathing system: Alloy‑constructed breathing circuit, corrosion‑resistant, easy to clean. Non‑consumable internal flow sensor lowers maintenance costs. Alloy fast‑release APL‑valve simplifies manual ventilation; one‑key ACGO switching expands clinical options.
- Human‑machine interaction: 8.4‑inch colour touch‑screen combined with navigation knob; one‑key switch between manual and mechanical ventilation; displays spirometry loops and real‑time ventilation waveforms.
- Expandable configuration: Optional AGSS, suction, AGM, EtCO₂ modules; supports dual‑vaporizers (Selectatec interlock system), optional third vaporizer holder. Compatible with Halothane, Enflurane, Isoflurane, Sevoflurane, with Pour‑Fill / Key‑Fill / Quik‑Fil filling options.
Ventilation Modes
- Basic config: IPPV, PCV, SIMV‑VC, Manual, PS/CPAP (apnea backup), Standby
- Full config: adds SIMV‑PC
- Adjustable parameters: Tidal volume 20‑1500 ml, breathing frequency 2‑100 bpm; PEEP: OFF / 3‑30 cmH₂O; I:E ratio 4:1‑1:8; pressure‑support 5‑70 cmH₂O; flow trigger 1‑15 L/min.
Physical & Environmental Parameters
表格
| Item | Parameter |
|---|---|
| Dimensions (H×W×D) | 1356 × 620 × 849 mm |
| Basic unit weight | 110 kg |
| Working temperature | 10‑40 °C |
| Storage temperature | ‑20‑55 °C |
| Storage humidity | ≤93 % non‑condensing |
Electrical & Pneumatic Specifications
- Power input: AC 100‑240 V, 50/60 Hz; built‑in DC 24 V backup battery ≥120 min runtime; 3 electrical outlets.
- Gas supply pressure: 0.28‑0.6 MPa.
- O₂ flush flow: 25‑75 L/min.
- Flowmeters: basic / full‑config ranges for O₂, N₂O, Air.
- Safety: O₂‑supply‑failure alarm & protection; safety‑valve ≤10 kPa.
Monitoring & Alarms
- Waveforms: P‑t, F‑t, V‑t (basic); full‑config adds P‑V, F‑V loops.
- Optional monitoring: O₂, CO₂, anaesthetic‑agent modules.
- Alarm items: high/low airway pressure, high/low minute‑volume, power‑failure, oxygen‑supply‑failure, apnea, high/low FiO₂.
Note: Excerpt does not provide absorber‑canister volume, caster specifications and complete optional‑accessory list.
