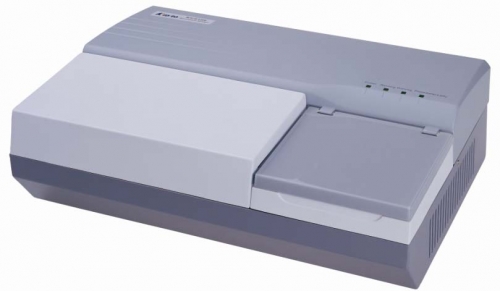

Medical Elisa Analyzer Microplate Reader

1. Semi automatic 2. Easy Windows operation system with touch screen or mouse, large LCD display 3. 8-channel optical fiber system enables 5 secs’ reading for the whole plate 4. Bichromatic measurement, calculation modes including ABS, Cut-off, Curv
Item Code: CCL-RT6100
Sold: 20
    Please select the information you wantX
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
+
-
Units
  • Description
Specifications
Features:
PC controlled system, Windows XP
8-channel optical fiber system enables 5 secs' reading for 96-well plate
Calculation modes include ABS, Cut-Off, Curve, Linear, Log, Exponential, Power and 4PL regression
Up to 12 different tests can be performed in one plate
Powerful laboratory management software, more than 100 programs and 100,000 results can be stored
Powerful QC programs including Westguard Multi-rule and Instant method, automatic alarm
Multiform test reports output
Lamp saving and plate shaking
Save data automatically when power off unexpectedly
Compatible with all popular external printers
Powerful internet connection enables remote data sharing and OS update
Multi-language software available on request

Specifications
General Descriptions
Absorbance Range 0 - 4.000Abs
Resolution
0.001Abs (displayed),0.0001Abs(calculated)
Accuracy
±0.5% or ±0.005Abs
Type of Microplate
Standard with 96-well or other kind of microplate and strip
Optic System
8-channel optic fiber system
Light Source Halogen lamp,
8V/20W
Wavelengths
405, 450, 492, 630nm, 4 more filters optional
Wavelength Accuracy
± 1nm
Band width
<8nm
Methodologies
End Point, fixed time, Kinetic
Calculation Method
ABS, Cut-Off, Single Standard, Curve, Multi-Percent, Percent Log, Linear, Exponential, Power, 4PL Regression
Reading Speed
5 seconds for 96 well plate (single wavelength)
Shaking Plate
Shaking time and speed adjustable
Operation
PC operation, bidirectional communications
Memory
More than 100 programs, up to 100,000 test results
Printer
All printers compatible with Windows
Interface
RS-232, USB
Language
English or any language on request
Power Supply
AC 110V - 240V ± 10%, 50-60Hz

Net weight  7Kg
Dimension L×W×H(mm) 454×295×146

Shipping Information:

G.W: 13kg

Packing Size: 0.55m,0.5m,0.35m

Unit: Piece
