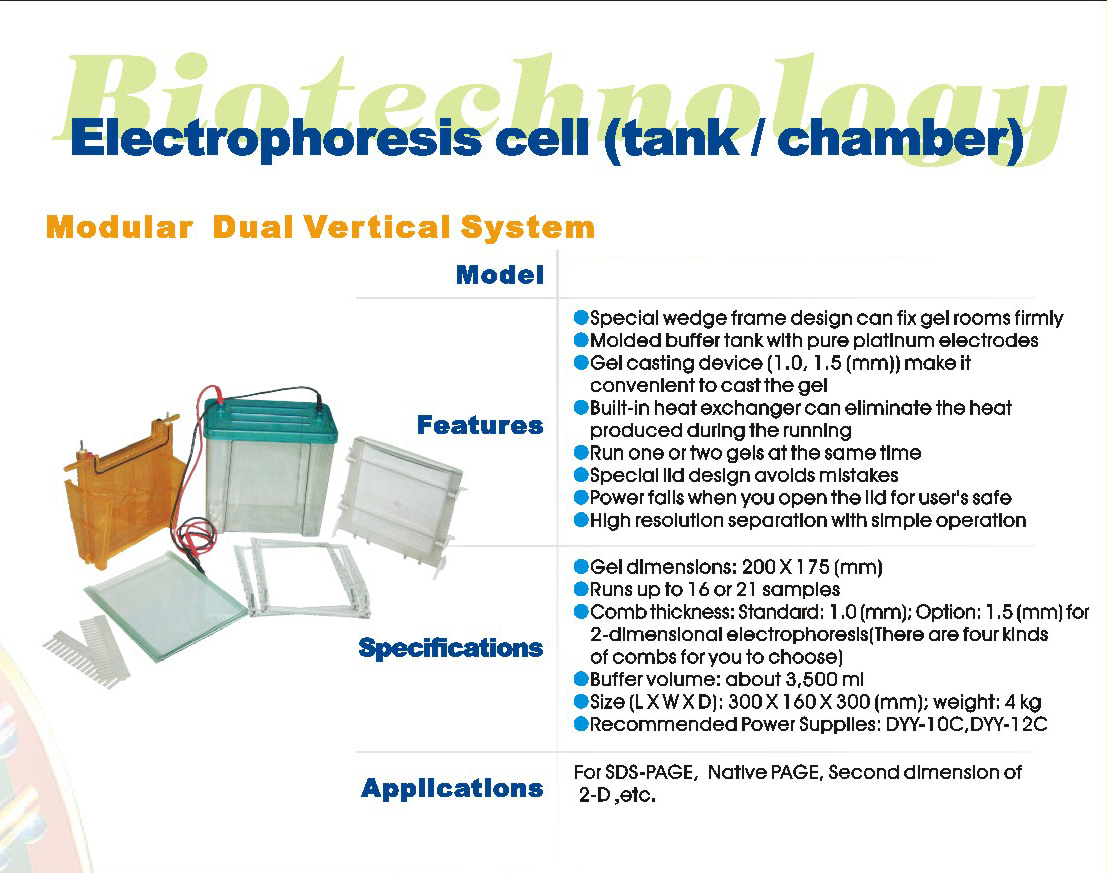

Features:

■ Special wedge frame design can fix gel rooms firmly;

■ Molded buffer tank equipted the electrodes with pure platinum;

■ Gel casting device (1.0,1.5 mm) make it convenient to cast the gel;

■ Built-in heat exchanger can eliminate the heat produced during the running;

■ Run one gel or run two gels at the same time;

■ Special lid design avoids mistakes during the operation;

■ Power fails when you open the lid for user’s safe;

■ High resolution separation with simple operation.

Specifications:

■ Gel dimensions( L X W): 200 × 175 (mm);

■ Combs: 16 well × 1.0mm, 167 μl volume;

16 well × 1.5mm, 251 μl volume;

21 well × 1.0mm, 132 μl volume;

16 well × 1.5mm, 198 μl volume;

(Four kinds of combs for you to choose)

■ Runs up to 16 or 21 samples:
■ Buffer volume: about 3,500ml;

■ Size (L×W×H): 300 × 160 × 300 (mm);

■ Weight: about 4.0 kg.

Applications:

For SDS-PAGE, Native PAGE, and second dimension of two-dimensional gel electrophoresis, etc.

Suitable Electrophoresis Power Supply

CCL-DYY10C,
CCL-DYY12,
