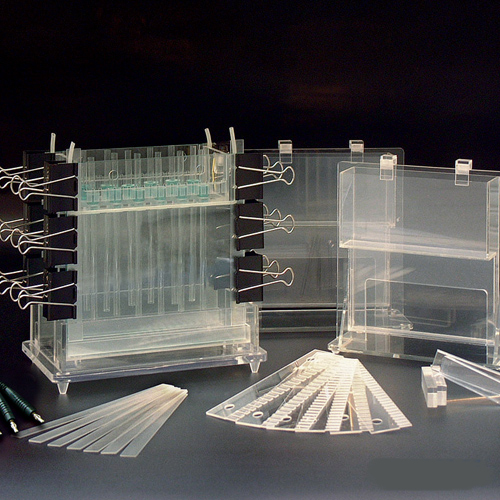

- Description
Features:
■ Vertical system;
■ Cooling tank;
■ The tank body is made of the high transparent, insulative synthetic glass, and no leakage.
■ Electrodes are made by pure platinum ( the purity quotient of the noble metal≥99.95%)which have the features of corrosion resistance of electroanalysis and withstand high temperature.
Specifications:
■ Gel dimension:
1) The real area of the gel plate : 170mm×170mm×1mm;
170mm×170mm×1.5mm
2) Tube gel: Ф1mm×170mm; Ф2mm×170mm;
■ Runs up to 20 or 26 samples
■ Comb thickness: 1mm and 1.5mm
■ The inner diameter of glass tube: 1.0 and 2.0 (mm);
■ The length of glass tube: 170 (mm);
■ Buffer volume: about 600ml;
■ Size (L X W X H):240×150×240 (mm);
■ Weight: about 6 kg.
Applications:
For separating, purifying and preparing electriferous molecules, and for different kinds of polyacrylamide gel electrophoresis experiments, starch gel electrophoresis experiments, agarose gel electrophoresis experiments.They are also suitable for Iso-electric focusing (IEF) electrophoresis experiment, two-dimensional electrophoresis experiment, and preparative electrophoresis experiment, etc.
Suitable Electrophoresis Power Supply
CCL-DYY4C,
CCL-DYY6C,
CCL-DYY7C,
CCL-DYY8C,
CCL-DYY11,
CCL-DYY11B
