Product info

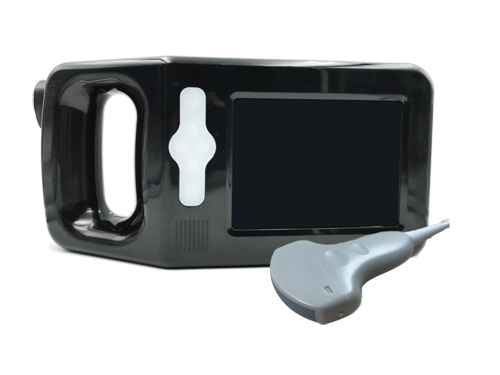

- Product name:Handheld B-Ultrasound Detector Convex Array Probe
- Product code:CCVE8
Packaging Specifications
- Outer Packaging Size:0 × 0 × 0 m
- Gross Weight:0 kg
- Net Weight:0 kg
- Volume:0
Description
1. Equipment Description
This is a high-definition, multifunctional palm-sized ultrasonic diagnostic apparatus, mainly used for pigs, cattle, sheep, horses, pets, and other animals.
2. Functional Characteristics
- Clear image quality, easy to operate, and durable.
- Excellent performance for consultations in cities, townships, and outdoor environments.
- Multiple charging methods for flexible use in different environments.
- Over 4 hours of standby time.
- 5.6-inch LED liquid crystal display.
- Powerful image preprocessing functions.
- Stable and concise operating system.
- Intelligent menu for easy and quick human-computer interaction.
- Multi-rate display for more accurate diagnosis.
- Large-volume movie playback with automatic image cycle demonstration.
- Abundant measurement functions: distance, circumference, area, volume, obstetric table, etc.
3. Performance Specifications
| Parameter | Specification |
|---|---|
| Supported Probes | 3.5MHz Convex probe, 6.5MHz Rectal probe |
| Displayed Depth | 70–240mm |
| Scanning Depth | ≥80mm (Rectal), ≥140mm (Convex) |
| Resolution | - Lateral: ≤1mm (≤60mm), ≤3mm (≤80mm), ≤5mm (80–130mm)- Axial: ≤1mm (≤80mm) |
| Monitor | 5.6-inch TFT-LCD |
| Display Mode | B |
| Gray Scale | 256 levels |
| Image Storage | 64 frames |
| Battery | 3200mAh Li-ion |
| Power Consumption | - 13W (non-charging)- 25W (charging) |
| Adapter Consumption | 45W |
| Display Colors | Gray, red, yellow, blue |
| Dimensions | 285mm × 135mm × 42mm |
| Net Weight | 846g |
4. Standard Configuration
- Mainframe (containing 1 Li-ion battery)
- 3.5MHz Convex probe
- User manual/technical instructions
- Power adapter (containing power cord)
