Product info

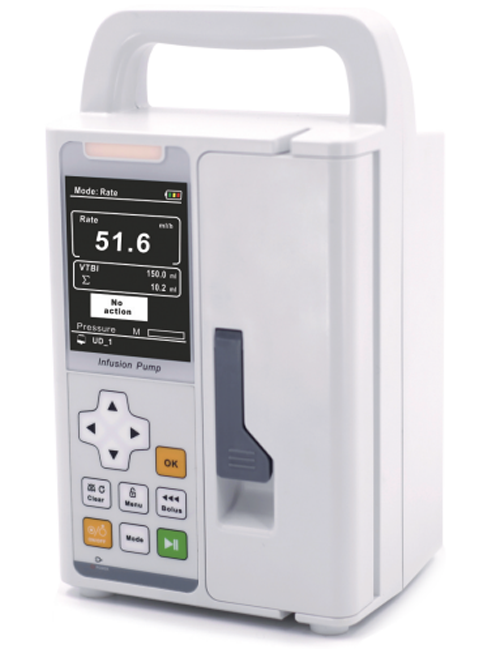

- Product name:Color LCD Infusion Pump
- Product code:CCS-1200
Packaging Specifications
- Outer Packaging Size:0.26 × 0.2 × 0.17 m
- Gross Weight:3 kg
- Net Weight:0 kg
- Volume:0.01
Description
Infusion Pump Overview
This is a versatile peristaltic infusion pump, compatible with any brand of IV sets, featuring multiple control modes, high‑precision drop counting, and comprehensive safety alarms.
✨ Features
- Universal IV set compatibility: Works with any brand of standard IV sets
- Automatic calibration: Automatically calibrates for any brand of IV sets
- Three working modes: Drop counting control, rate control, and time control mode
- Battery life: 6 hours of continuous work when the battery is fully charged
- Display & battery: Unique color LCD display and high‑capacity internal battery
- Flexible units: Freely switch between ml/h and drops/min
- Adjustable alarms: 3 levels of alarm volume (high/medium/low)
- Adjustable occlusion pressure: 3 levels (high/medium/low)
- KVO function: Automatically enters keep‑vein‑open (KVO) state with an alarm once the total infusion volume is complete
📋 Technical Specifications
| Parameter | Specification |
|---|---|
| Drop Detector | Outside caliper rotary detector (patent) with infrared sensor |
| Control Way | Drop counting and automatic adjustment of delivery rate |
| Compatible IV tubes | 20 drops/ml, 60 drops/ml, and brown light‑protected tubes |
| Pump Type | Peristaltic finger pump |
| Accuracy | ± 2 % (delivery rate ≤ 25 drops/min in drop counting/time control mode)± 3 % (delivery rate > 25 drops/min in drop counting/time control mode)± 5 % (volume control mode after correct calibration) |
| Delivery rate range (time mode) | 1–1999 min (1 min step) |
| Volume limit range | 0–9999 ml (1 ml step) |
| Total Volume Range | 0–9999.9 ml (1 ml step) |
| Purge Rate | 600.0 ml/h |
| KVO Rate | 1 ml/h (when delivery rate ≤ 10 ml/h)3 ml/h (when delivery rate > 10 ml/h) |
| Occlusion pressure | 3‑level setting: LOW / MEDIUM / HIGH |
| Alarms | Near empty, syringe empty, volume complete, occlusion, syringe loose, operation error, low battery, device failures3‑level adjustable alarm volume (LOW / MEDIUM / HIGH) |
| Bolus function | Bolus rate: 10–1200 ml/hBolus volume: max. 100 ml |
| Power source | AC power supply: 100–240 V (±10 %), 50/60 HzBuilt‑in rechargeable Li‑ion battery: 11.1 V, 2000 mAh (6 h continuous use) |
| Accessories | AC power line, operational manual |
| Protection Class | Class I, Type CF, IPX4 |
| Dimensions / Net weight | 130 mm × 200 mm × 230 mm, 2.5 kg |
