Description

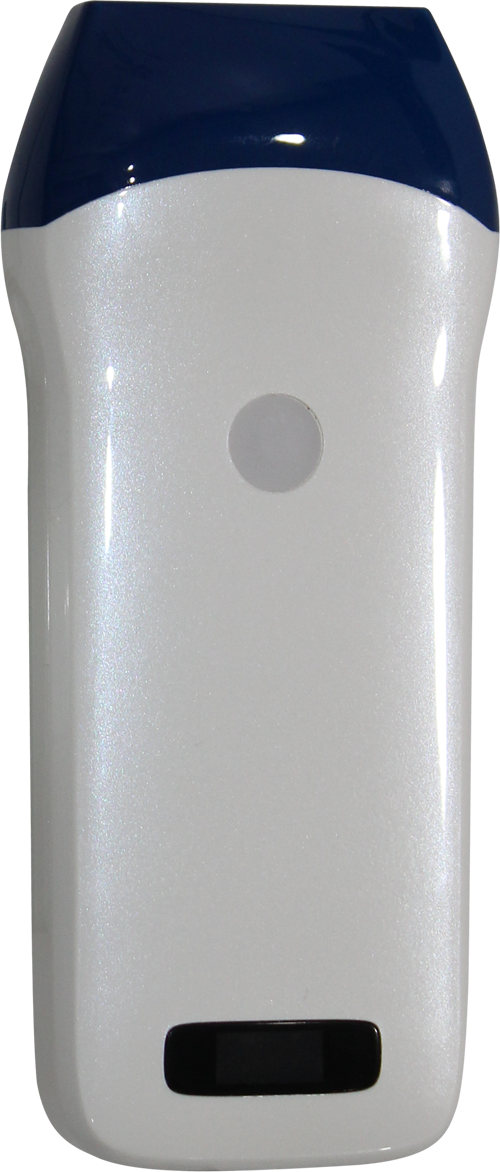

Wireless Ultrasound Probe Scanner Product Specification

Standard Configuration:

• Main Host (Probe): 1 Unit
• Internal Battery and Charge Cable: 1 Set
• Convex Probe (Base model)

Different Models Information:

• CP-5C (Convex Probe)Color Doppler type Wireless Convex Probe, 128 elements, 3.5MHz, wireless connect to smart phone and tablet. Array probe for better image quality. With Harmonic, composite, denoise imaging modes.
• CP-5L (Linear Probe)Color Doppler type Wireless Linear Probe, 128 elements, 7.5MHz, wireless connect to smart phone and tablet. Array probe for better image quality. With Harmonic, composite, denoise imaging modes.

Product Overview:

This wireless probe scanner has integrated ultrasound circuit boards inside. It can wirelessly connect to a PC, Tablet, or Smartphone after installing ultrasound software, enabling full ultrasound scanner functionality. It is compact, smart, and convenient to carry and operate.

Application Range:

• Emergency clinical use, hospital ward inspection, community clinical use, and outdoor inspection.
• Convenient for use in surgery without cable fixation.
• Sterilization is simplified by using disposable protective covers.
• Supports telemedicine applications via smart terminal communication capabilities.

Key Features:

• Works with Tablet or Smart Phone
• Built-in and replaceable battery
• Advanced digital imaging technology for clear images
• High cost-effective
• Wireless connectivity for ease of use
• Small and light, easy to carry
• Applicable in emergency, clinic, outdoor, and veterinary inspection
• Intelligent terminal platform with powerful expansion functions for applications, storage, communication, and printing

Detailed Specifications:

Convex Probe (CP-5C):

• Scan mode: Electronic array
• Display mode: B, B/M
• Frequency: 3.5MHz
• Depth: 100mm~280mm
• Measure: distance, area, obstetrics
• Battery life: 3 hours
• Dimension: 156mm × 60mm × 20mm
• Weight: 250 grams
• Wifi type: 802.11g/20MHz/2.4G/54Mbps
• Compatible OS: Apple iOS and Android
• Image frame rate: 12f/s
• Linear Probe (CP-5L):
• Scan mode: Electronic array
• Display mode: B, B/M
• Frequency: 7.5MHz and 10MHz (two types available)
• Depth: 20mm~55mm
• Measure: distance, area, obstetrics
• Battery life: 3 hours
• Dimension: 156mm × 60mm × 20mm
• Weight: 250 grams
• Wifi type: 802.11g/20MHz/2.4G/54Mbps
• Compatible OS: Apple iOS and Android
• Image frame rate: 12f/s
