Description

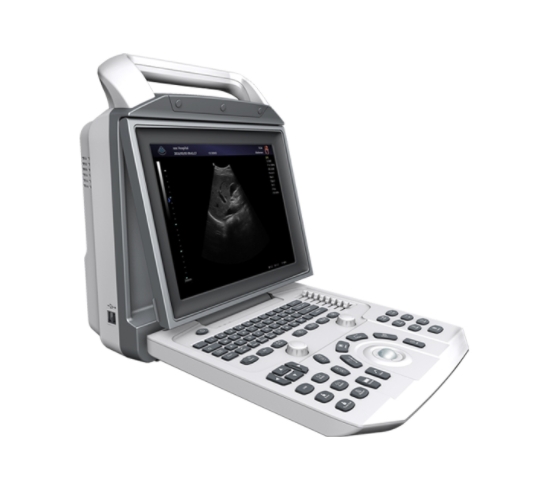

Laptop Ultrasound Scanner Specification

Standard Configuration

• Main Unit × 1
• Convex Probe × 1
• Battery × 1

Physical Specifications

• Width: approx. 370mm
• Height: approx. 360mm
• Thickness: approx. 155mm
• Weight:

Monitor

• 12-inch high-resolution color display screen
• Resolution: 1024 × 768
• Tilt angle range: 0–90°

Transducer Ports

• 2 transducer ports
• 2 removable transducer holders

Electrical Specifications

AC Adapter:

• Input Voltage: 100–240V~
• Frequency: 50/60Hz
• Power Consumption: 110VA
• Built-in Battery:
• Type: Lithium-ion rechargeable
• Spec: 10.89V / 5200mAh

Environmental Specifications

Operation Environment:

• Ambient temperature: 5°C ~ +40°C
• Relative humidity: 25% ~ 85%
• Atmospheric pressure: 700hPa ~ 1060hPa
• Storage & Transport Environment:
• Ambient temperature: -20°C ~ +55°C
• Relative humidity: 10% ~ 95%
• Atmospheric pressure: 500hPa ~ 1060hPa

Main Unit

• Storage: 32MB SSD + 8GB HDD
• Operating System: Linux
