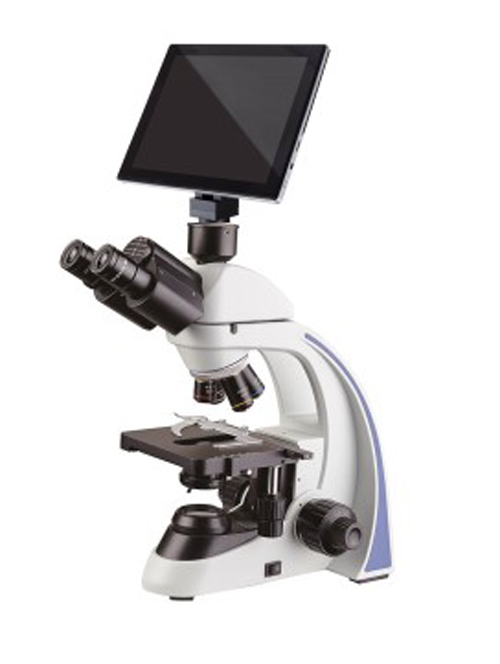

Optical system:    Plan achromatic  optical system.
Observation:    Brightfield.
View tube:    Binocular/Trinocular head,  30 ° incling, 360°rotating. Diopter adjustment on the left eyepiece. Adjustment of interpupillary distance 50-75 mm.
Eyepiece:    Wide field WF10X / 18 .
Objective:    Plan Achromatic Plan 4X/0.10, 10X/0.25, 40X/0.65(Spring loaded), 100X/1.25(Spring loaded and oil immersion).
Nosepiece:    Quadruple reversed angle nosepiece, revolver with rotation on ball bearings.
Illumination:    White LED lamp illuminator. LED power: 3W, Color temperature: 6300K,  Average life of the LED is about 20000 hours. Brightness controller located on the base of the stand.   Power supply: external AC 90~ 240V, 50 / 60Hz.
Focusing mechanism:    Coaxial positioning system. Movement by roller guider(Roller and pinion). Rubber grip around fine and coarse adjust knob. Tension adjustment of coarse regulation knob. Upper limit stoper for protecting the lens and sample. Fine adjustment accuracy :0.002mm.
Stage:     Mechanical douuble layer stage, platinum with overhang, dimensions 155x145 mm, Moving range: 76mm ×52mm. Vernier scale on both axes of movement with an accuracy of 0.1 mm.
Condenser:    Removable Abbe condenser, NA1.25 with aperture iris diaphragm.
Body:    Ergonomics designed rigid frame. With handle for carry. All metal material with cover. Anti-fungi, anti-bacteria.
Accessories:    Manual, dust cover, power cord of local standard.
Package :   48.5*30.5*55.5CM, 7kg


Tablet Specification
Operating System:    Windows 10 64-bit
Language:    Multilanguages already installed
LCD monitor:    12 inch HD monitor, touch screen
CPU:    Intel® Atom™ , Quad core, 1.92 GHz
Resolution:    1920x1080, 16/9 Full HD
Storage    Hdd or USB flash disk
Input/output ports:    USB2.0、HDMI、WIFI, Bluetooth
Wifi:    2.4GHz/5GHz WIFI, 802.11a/b/g/n/ac
BlueTooth:    Bluetooth 4.0
Control    By mouse and by touching.
Power supply:    Power Adapter, input AC200-240V, 50/60Hz. Output: 2V/2A
Software:    Vision Lite (full view function is also included for a Live Camera view). Continuous auto exposure, image size, image capture, compressed video capture, measurement. Continuous control of Brightness, gain, exposur time, colors, color enhancement.


Camera Specification :
Digital camera resolution:    16MP
Signal output:    USB2.0
Sensor Size:    1/2.3”
Sensor technology:    CMOS
Image format:    16:9
Full Image size    Max image: 4608*3456, video 1920*1080P
Pixel size:    1.335um*1.335um
Frame rate full resolution:    10fps
Frame rate other resolutions:    15 fps (1920x1080), 30 fps (640x480)
Sensitivity:    0.5 V/Lux-second (550 nm)
Signal / noise ratio:    45 dB
Dynamic range:    70 dB
Max Exposure time:    15s
ADC conversion:    12 Bit
Color Depth:    8 Bit
On camera IR Filter:    650nm
Automatic White Balance    Auto/Manual
Automatic Gain Control    Auto/Manual
Automatic Back light control    Auto/Manual
Exposure control    Auto/Manual
