Product info
- Product name:Estrus Detector
- Product code:CCVE1
Packaging Specifications
- Outer Packaging Size:0 × 0 × 0 m
- Gross Weight:0 kg
- Net Weight:0 kg
- Volume:0
Core Parameters
- Length of the probe: Pig: 29 cm; Dog: 12.5cm; Cow: 46.5cm
- Power supply: 1 x 9 V battery, type 6F-22
- Battery low indication: automatic
- Power input: 18 mA
- Measurement control: single chip microcomputer
- Measurement resolution: 10 units
- Measuring range: 0-1990 units
- Working temperature: 0-50°C
- Humidity: 85%
Description
Animal Estrus Ovulation Detector Specifications
1. Equipment Description

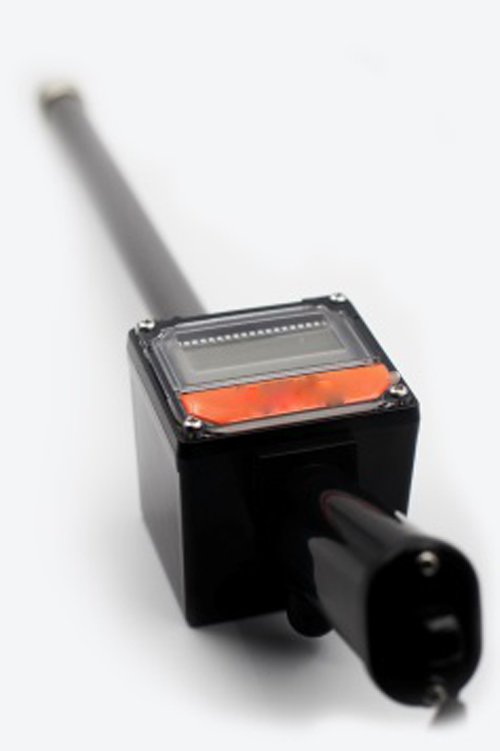

This device is an Animal Estrus Ovulation Detector.
2. Functional Characteristics
- Helps determine the optimal mating time for females with atypical estrous cycles.
- Detects asymptomatic estrous periods (silent heat).
- Improves the effectiveness of artificial insemination.
- Enhances the economic performance of farms.
- Easy to clean and disinfect.
- Features a light and ergonomic casing.
- The probe is coated with biological silica gel to protect the vagina.
- Equipped with a high-frequency probe.
3. Performance Introduction
| Parameter | Specification |
|---|---|
| Probe length | Pig: 29 cmDog: 12.5 cmCow: 46.5 cm |
| Power supply | 1 × 9V battery (type 6F-22) |
| Battery low indication | Automatic |
| Power input | 18 mA |
| Control system | Single-chip microcomputer |
| Display | LCD, 2.6 digits |
| Measurement resolution | 10 units |
| Measuring range | 0–1990 units |
| Working temperature | 0–50°C |
| Humidity | 85% |
4. Standard Configuration
- Mainframe
- Manual / technical instructions
