Description

Features

● Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open

● Anesthesia Ventilator: Built-in 5.7-inch TFT display, able to display Pressure-Time and Frequency-Time, displayed waveforms can be cycled instantly with a touch of a button

● Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection, easy to clean and disinfect

● Equipped with electronic pressure differential flow sensor, imported respiratory control valve

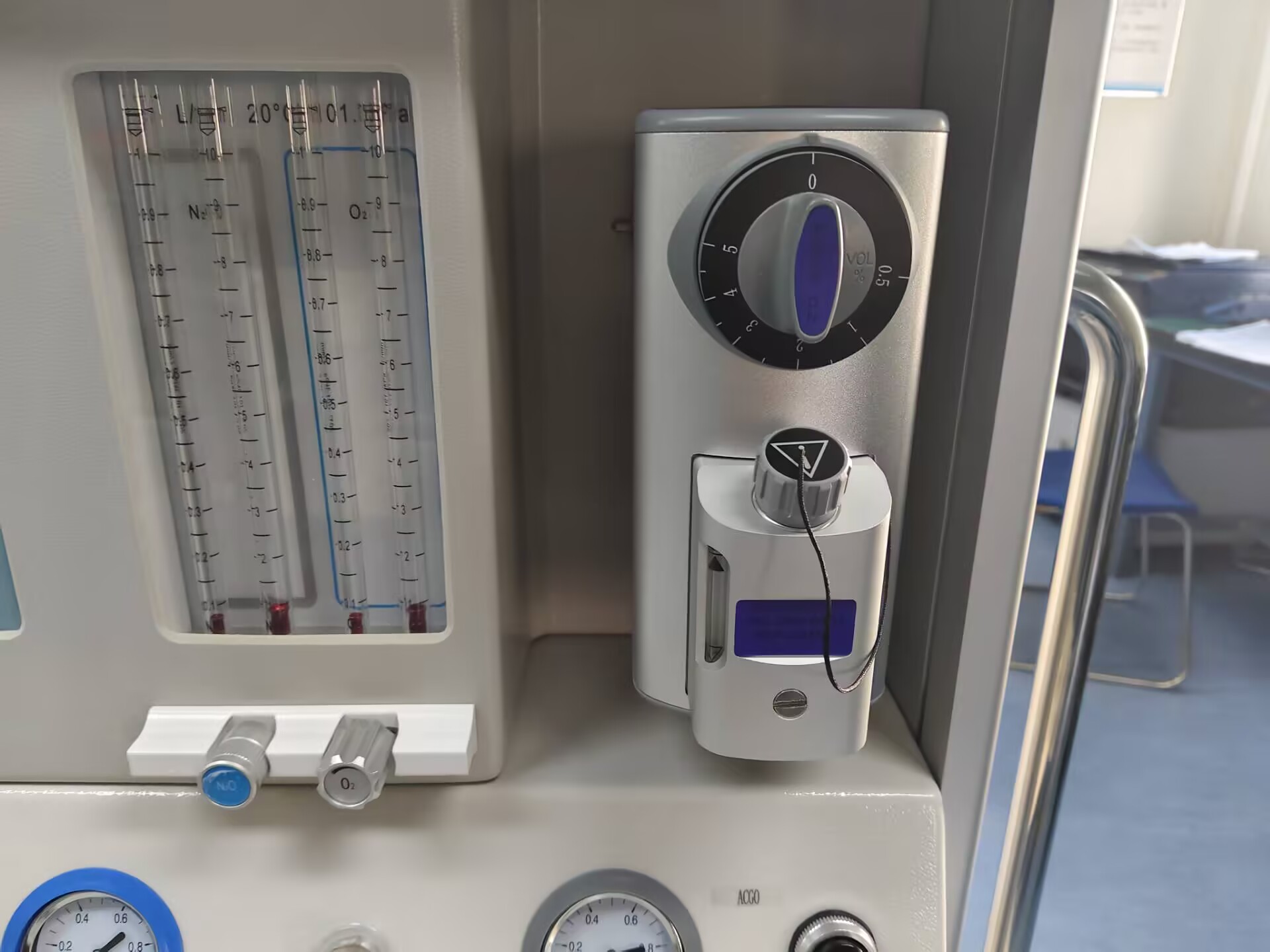

● Vaporizer: Imported tank components assembled locally; Enflurane, Isoflurane and Sevoflurane (Halothane optional). Also possesses self-compensating functionality

● Multi-parameter Patient Monitor: Optional

● High precision four tube flowmeter, fitted with interlocking oxygen-nitrous oxide supply, guarantees oxygen output is never lower than 21%

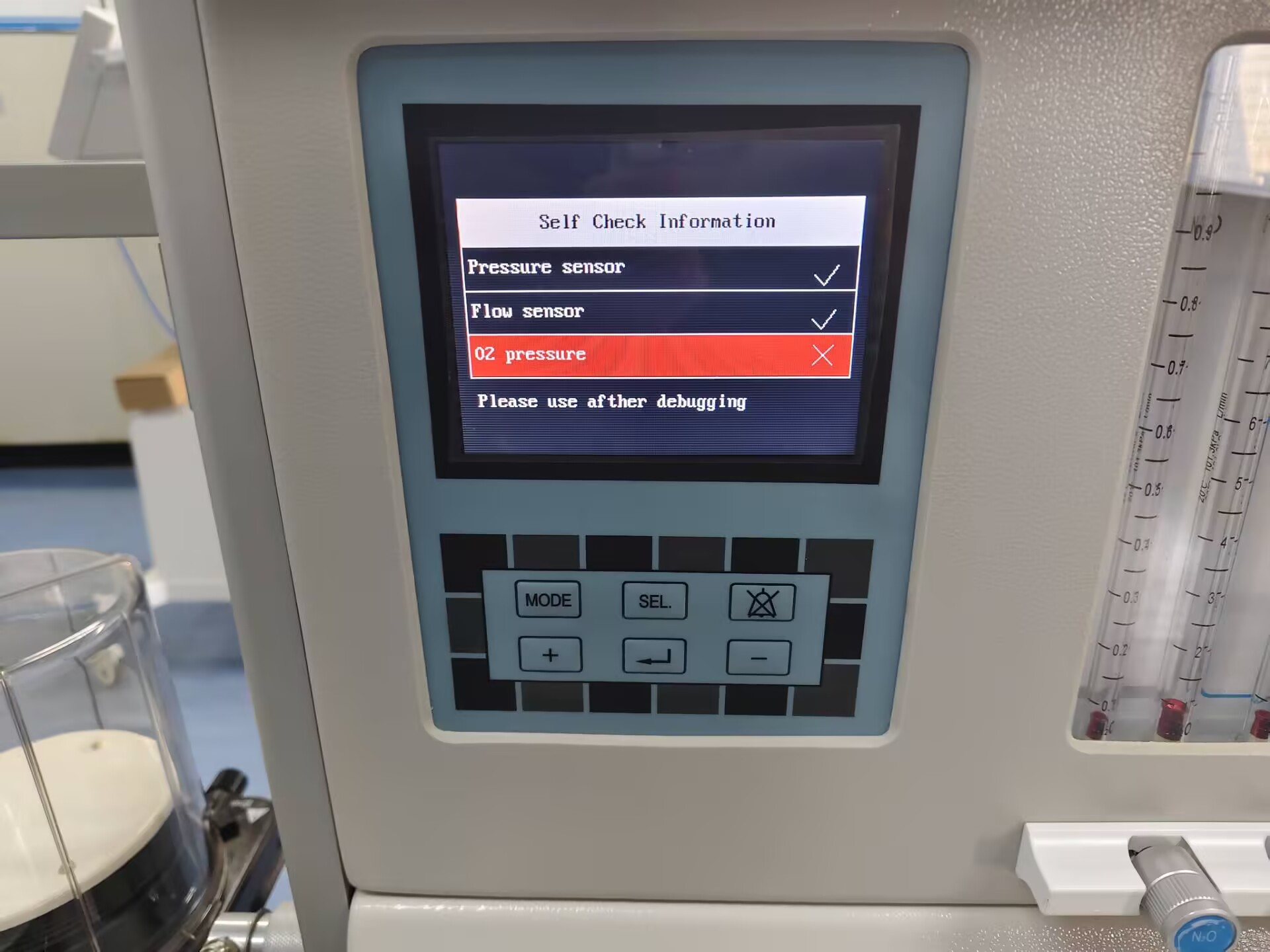

● Nonhazardous environmentally friendly frame, with automated self-checking function during startup and an automatic self-calibrating sensor

● Power Failure Support Functions: Automatically converts to backup power mode during AC power outages

● Alarms: Audible and/or visual alarms for tidal volume, airway pressure, asphyxia, power failure, oxygen failure and other alarms, also features an alarm query function

● Equipped with advanced international rotating Na-lime tank, uses imported PPSU material and temperature resistant to 134°C
